Quake Alarm – Smart Earthquake Intensity Indicator for Safer Buildings
Quake Alarm is a real-time seismic intensity monitoring and alert system designed for buildings, hospitals, and critical infrastructure. It delivers instant visual and audible earthquake alerts using a standardized color-coded system to support rapid evacuation and safety decisions.
$2.995,00
OVERVIEW
Description
Quake Alarm is a smart device that detects ground movement and shows earthquake intensity in real time. This unique device acts as an earthquake intensity indicator, giving people instant information and supporting fast safety decisions.
When shaking begins, the system analyzes motion data immediately. Then, it converts the measurements into a clear visual signal. With this Earthquake Intensity Indicator Device, building occupants can react quickly without needing technical knowledge.
Clear and Simple Visual Alerts

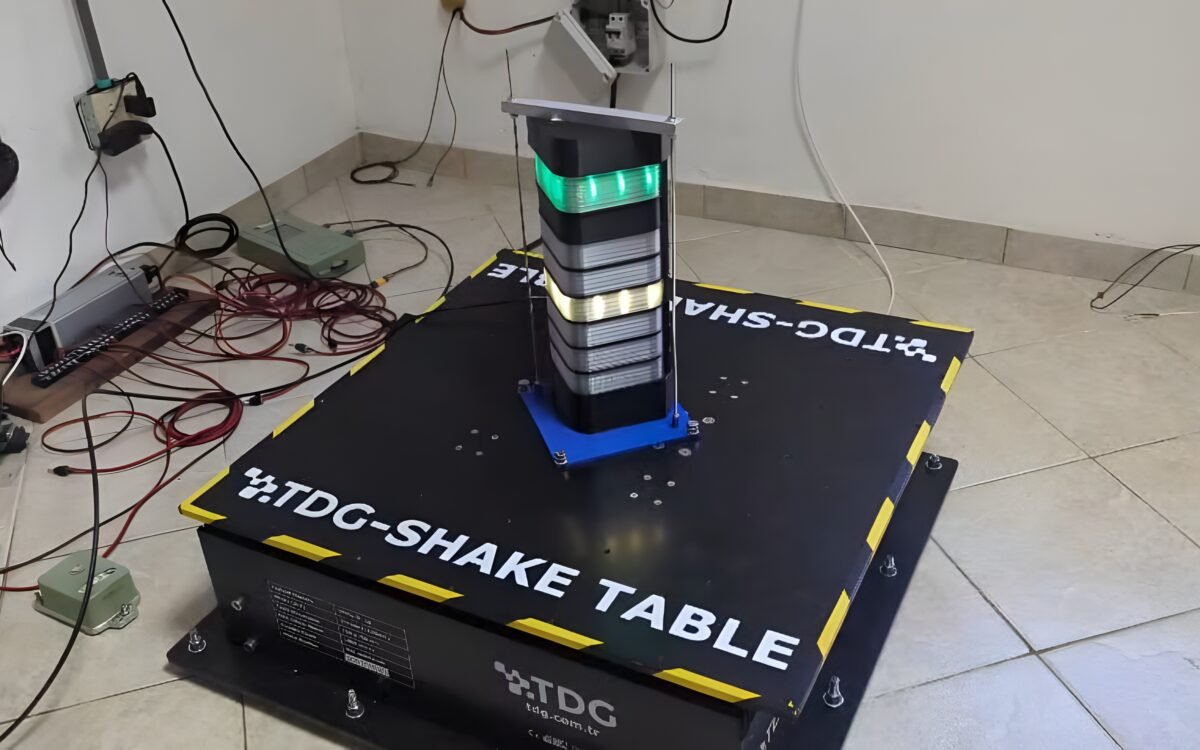

Quake Alarm uses a bright multi-level LED tower. Each color represents a different shaking level. The earthquake intensity indicator device provides a clear severity visual for anyone in the room.
In addition, the top indicator shows:
-
Green for light to moderate shaking
-
Red for strong shaking that may cause damage
Because the colors are easy to recognize, response time is reduced.
Instant Audible Notification
Besides visual alerts, the device also provides sound warnings. For example, with this earthquake intensity indicator device, users benefit from both visual and audible notifications.
-
Built-in buzzer
-
Configurable voice messages
This means users receive both visual and audio signals at the same time. Consequently, awareness increases even in noisy environments thanks to the earthquake intensity indicator device.
Reliable and Durable Design
Quake Alarm is built for demanding environments. It has an IP65-rated enclosure, so it resists dust and water. Moreover, the PETG housing adds durability. By using an earthquake intensity indicator device, reliability is enhanced.
The system works in temperatures from -10°C to +70°C. Therefore, it can operate in both indoor and semi-outdoor installations, and the earthquake intensity indicator device ensures performance in tough conditions.
Advanced but Easy-to-Use Technology
Although the internal system uses advanced digital filtering and real-time processing, operation is fully automatic. The device calibrates itself and works without constant supervision. The earthquake intensity indicator device removes complexity for the user.
Furthermore, it includes:
-
High-speed motion sensing
-
Real-time data processing
-
Automatic calibration
-
Wi-Fi and 4G connectivity options
Because of this, installation is simple and maintenance needs are minimal due to the earthquake intensity indicator device features.
Where It Can Be Used
Quake Alarm is ideal for:
-
Hospitals
-
Schools
-
Industrial facilities
-
Commercial buildings
-
Government institutions
For all these settings, an earthquake intensity indicator device is critical in reducing risk and improving safety protocols.
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 16 × 12 × 12 in |
Technical Specifications
- Processor: ESP32-S3
- Frequency: 240 MHz
- Memory: 512 KB SRAM / 384 KB ROM
- Sensor Type: Triaxial MEMS Accelerometer
- Resolution: 14-bit
- Measurement Range: ±2g
- Sampling Rate: 800 Hz
- Latency: <100 ms
- Connectivity: Wi-Fi / 4G LTE
- Power Supply: 12V / 2A
- Protection Rating: IP65
- Material: PETG
- Operating Temperature: -10°C to +70°C
Key Features
-
Autonomous operation
-
Real-time ground motion analysis
-
Multi-level LED tower indicator
-
Voice-configurable alerts
-
Integrated audible warning
-
Automatic calibration
-
Industrial-grade enclosure
-
Low maintenance design
Deployment Areas
-
Healthcare buildings
-
Manufacturing facilities
-
Government infrastructure
-
Commercial complexes
-
Schools and universities
-
Control rooms
