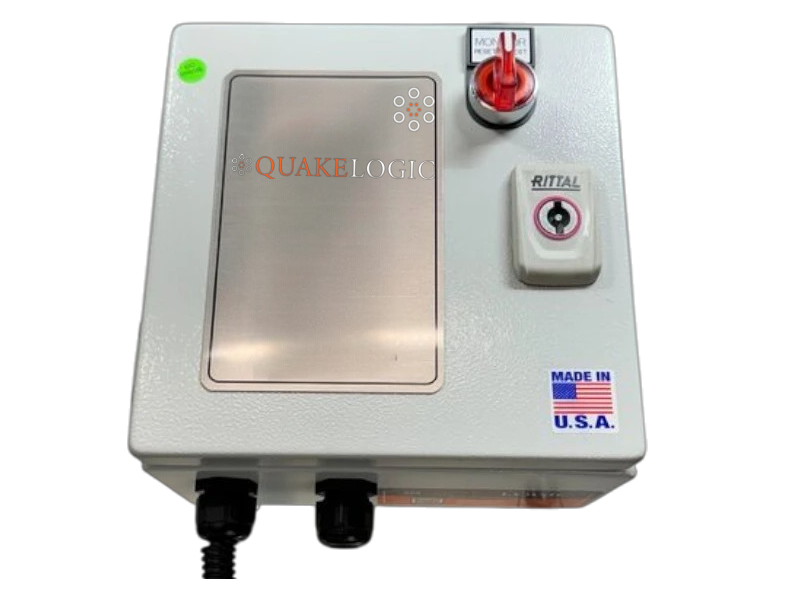

CUBE – Advanced Onsite Earthquake Early Warning System, Alarm Device, and Data Logger
The CUBE is a powerful onsite earthquake early warning system, alarm device, and datalogger with real-time alerts, Modbus/SeedLink support, and HAZUS-based structural assessment. Ideal for EEWS, SHM, and industrial safety.
$3.850,00
OVERVIEW
Description
CUBE is a high-performance onsite earthquake early warning system (EEWS), intelligent alarm device, and data logger designed to deliver rapid, reliable alerts and actionable insights. It features visual, voice, and dynamic text notifications through an advanced 4-phase LED indicator, integrated speaker, and a responsive 7-inch touchscreen interface.
Building on the capabilities of the PX-01 platform, CUBE supports Modbus protocol for seamless integration with SCADA, MES, and industrial management systems, while SeedLink compatibility enables connectivity with third-party accelerographs. Its robust N-of-M voting algorithm significantly enhances detection accuracy and system reliability, making it an ideal solution for mission-critical environments.
CUBE is equipped with HAZUS-based Rapid Structural Health Diagnosis (RSHD), providing near real-time structural damage assessments within one minute of a felt earthquake using a three-accelerograph configuration. For extended capabilities, a cloud-based RSHD service is also available upon request.
The system integrates seamlessly with QuakeLogic’s earthquake early warning sensors, including Palert, Palert S330, and Palert F330, ensuring a fully scalable and interoperable monitoring network.
Key Features
✔ Integrated Web-Based GUI for easy configuration and remote access
✔ Supports Onsite and Regional Earthquake Early Warning deployments
✔ IoT-Enabled for real-time monitoring and smart infrastructure integration
✔ Modbus Protocol for industrial automation and control systems
✔ HAZUS-Based Analytics for rapid structural damage assessment
Applications
📌 Earthquake Early Warning Systems (EEWS)
📌 Structural Health Monitoring (SHM)
📌 Rapid Structural Health Diagnosis (RSHD)
Ideal For
🏭 Manufacturing and Industrial Facilities
🏢 Commercial and Office Buildings
🏘 Residential and Multi-Unit Complexes
With advanced detection algorithms, real-time alerting, and seamless system integration, CUBE represents a state-of-the-art solution for earthquake preparedness, safety automation, and infrastructure resilience.
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 16 × 16 × 8 in |
SPECIFICATIONS
- Indicator: 4-color LED indicator
- Time Synchronization: NTP-supported
- Display: Industrial-grade 7″ touchscreen
- Power Consumption: 12W @ 24VDC
- Operating Temperature: -20°C to 70°C
- Speaker: High-dB, 4Ω speaker
- RTC Accuracy: ±60 sec/year, with NTP synchronization support
- Relative Humidity: 5 – 90% RH, non-condensing
- Storage: 32GB (expandable to 64GB)
- Weight: 5.3 kg
- Relay Outputs: 4 sets
- Dimensions (W x H x D): 290 × 290 × 100 mm
Specifications, features, and pricing are subject to change without prior notice.
USER-MANUAL
CLICK HERE FOR USER-MANUAL OF CUBE IN PDF
