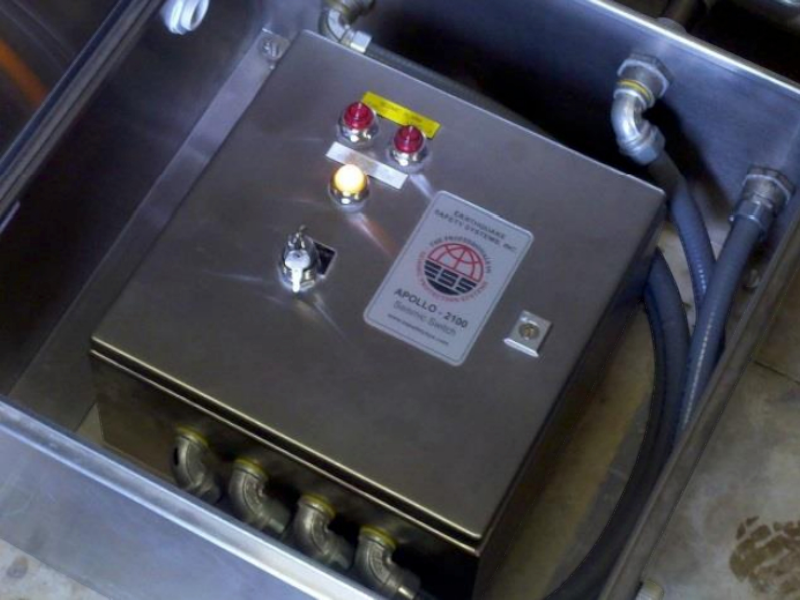

APOLLO-2100 SEISMIC SWITCH
Rugged industrial seismic switch with tri-axial sensor, real-time PGA output, and 8-hour battery backup. Designed for critical shutdown protection in valves, pipelines, motors, and process control systems. NEMA-4/4X enclosure ensures reliability in harsh environments.
$8.595,00 – $8.995,00Price range: $8.595,00 through $8.995,00
OVERVIEW
Description
The Industrial Seismic Switch is a fully integrated monitoring system that combines a tri-axial digital seismic sensor (detecting both “P” and “S” waves) with a built-in 8-hour reserve battery for uninterrupted operation.
Each unit is shipped with a pre-drilled base plate for effortless installation. The standard model includes a NEMA-4 rated enclosure, while an optional stainless steel secondary enclosure provides NEMA-4X corrosion-resistant protection for harsh environments.
This smart seismic device offers user-configurable alarm setpoints, real-time Peak Ground Acceleration (PGA) outputs, and RS-232C serial communication for instant data retrieval.
Industrial Seismic Switch for Critical Applications
Ideal for mission-critical industrial environments where accidental shutdowns cannot be tolerated.
Applications include:
- Valves, solenoids, and actuators
- Process control systems
- Pipelines and pumping stations
- Hazardous material and chemical facilities
- Electronic security doors
- Motors and elevators
Key Features
- Multi-Setpoint Sensor Control — User-selectable alarm thresholds from 0.025 g to 0.5 g, in 0.001 g increments per axis (X, Y, Z).
- Real-Time Data Output — Continuous PGA data via RS-232C serial connection.
- Automatic Self-Diagnostics — Power-on and periodic self-tests ensure operational integrity.
- Battery Backup — Maintenance-free 8-hour internal battery guarantees operation during power loss.
- High-Reliability Design — Solid-state triaxial accelerometer with ±0.001 g precision and no moving parts.
- Rugged Industrial Output Relays — Form C (NO/NC) dry contacts rated up to 250 V / 6 A; user-selectable latching or timed alarm reset.
- Easy Installation — Front-panel test/reset switch, LED status indicators, and ample wiring space.
- Standards Compliance — Meets ASCE 25, ANSI Z21-70, ASME A17, and related seismic design standards.
Enclosure Options

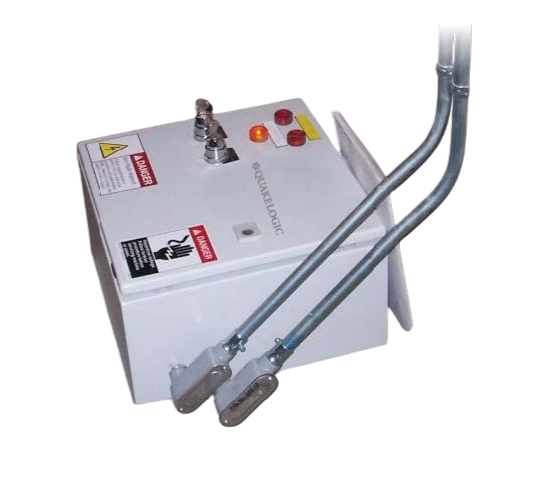

- Standard NEMA-4 Painted Steel: 15” W × 15” D × 10” H

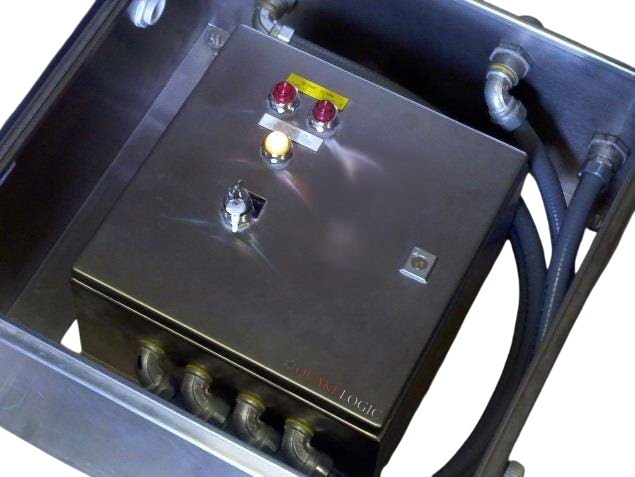

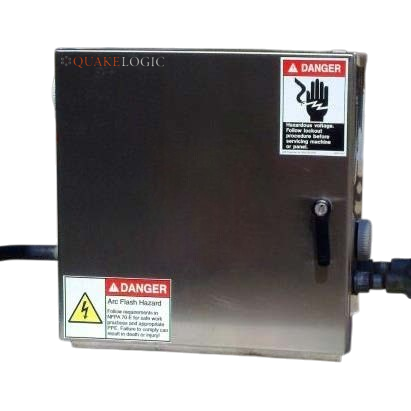

- Stainless Steel NEMA-4: 16” W × 16” D × 10” H
- Stainless Steel NEMA-4X (with Secondary Enclosure): 24” W × 24” D × 12” H
Each enclosure features a fully gasketed door, status indicators (fault, AC power loss, seismic trip, and power on), and space for rigid or flexible conduit terminations.
Installation
The system is mounted via four ¼” bolts on the provided pre-drilled aluminum baseplate. Installation requires no precise leveling. The unit can also be wall-mounted in select configurations (consult factory). All wiring terminations are clearly labeled for quick field connection.
Available Options
- 230 VAC / 50 Hz power supply
- 24 VDC operation
- Bypass switch(es)
- Additional Form C trip relay contacts
- Stainless steel NEMA-4X secondary enclosure
- Custom logic integrations (flow, pressure, leak detection, or level monitoring feedback)
Why Choose QuakeLogic for Seismic Switches?
Our industrial seismic switches are designed for maximum uptime, fail-safe control, and compliance with global seismic safety standards. With robust construction, intelligent control, and proven field reliability, they are the trusted choice for critical industrial operations worldwide.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Options | Horizontal Mount, Vertical Mount |
SPECIFICATIONS
Sensor Type: Solid-state triaxial accelerometer (X, Y, Z)
Frequency Response: 1 Hz – 15 Hz, with digital filtering to reject industrial vibration
Communications: RS-232C serial output
Diagnostics: Self-test on power-on and manual reset
Alarms:
- Level 1 and Level 2 Seismic Alarm
- Loss of AC Alarm
- Seismic Trip Alarm (Form C relay outputs)
Power Supply Options:
- Standard: 120 VAC, 50/60 Hz
- Optional: 230 VAC, 50 Hz or 24 VDC
Battery Backup: 8-hour autonomy, maintenance-free
Relay Rating: 250 V / 6 A, NO/NC user-selectable
Operating Temperature: –25 °C to +70 °C
Humidity: 0 – 100 % (non-condensing with NEMA-4X enclosure)
Weight: Approx. 35 lbs (including battery)
