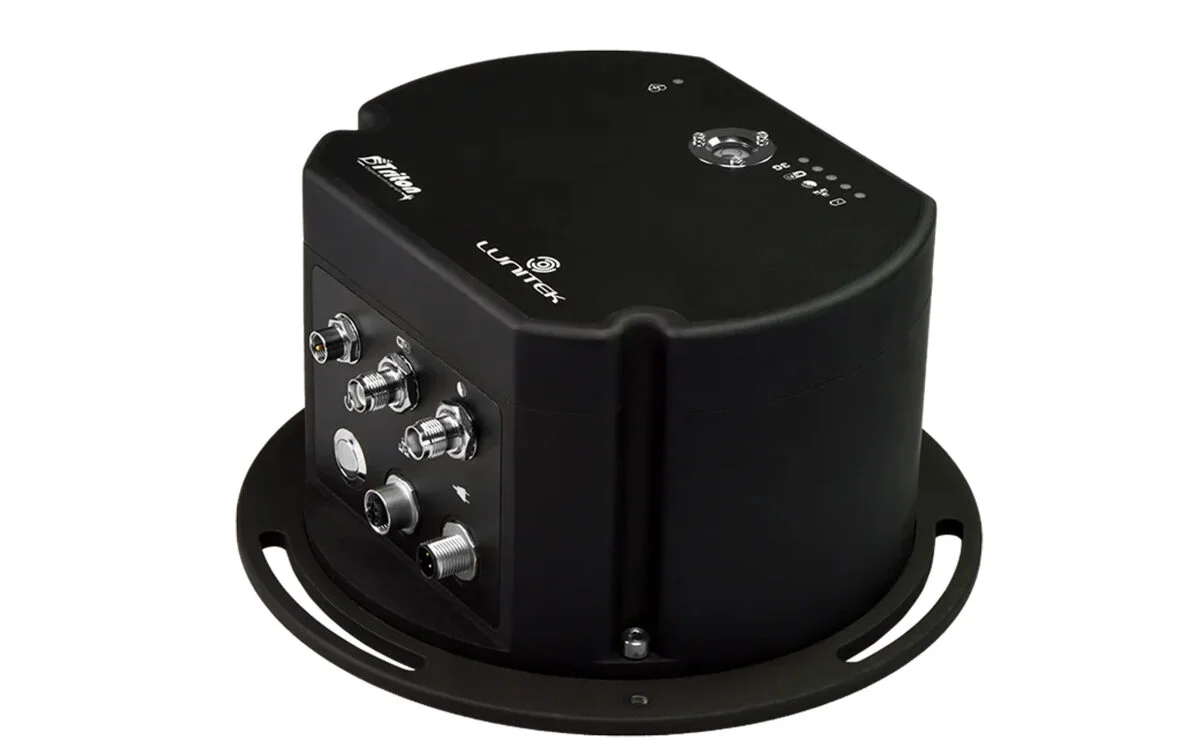

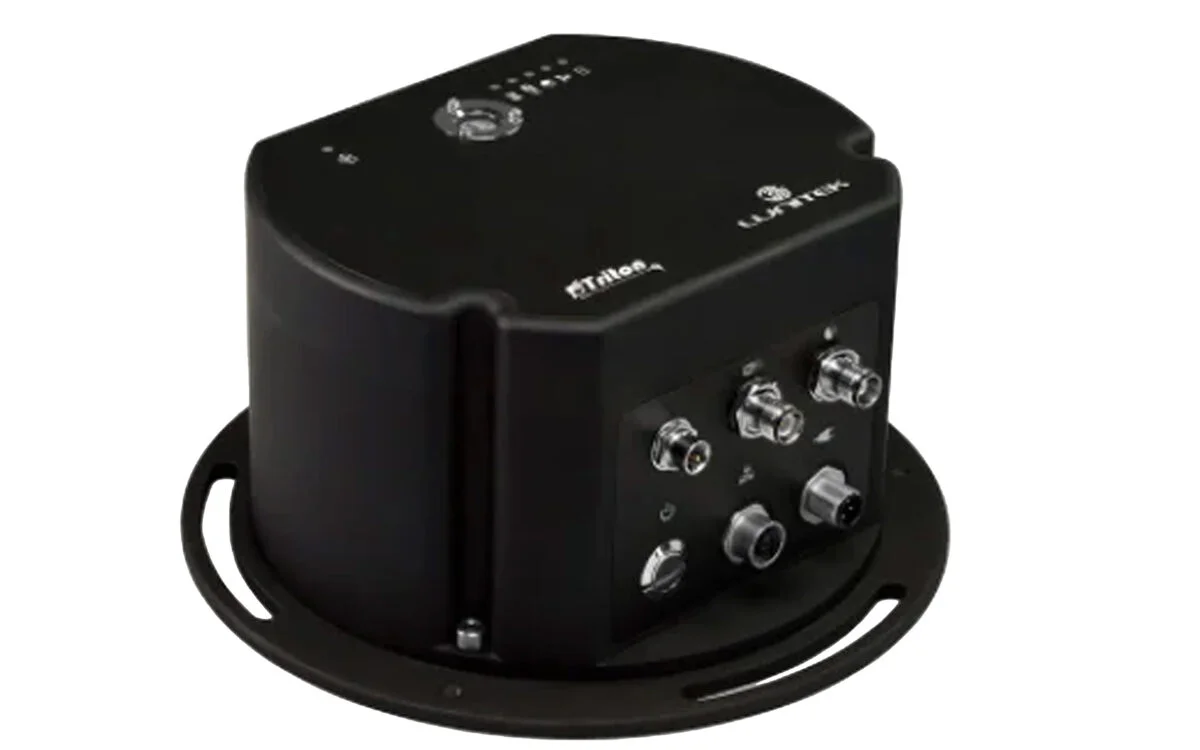

TRITON-F TRIAXIAL ACCELEROGRAPH WITH FBA SENSORS (REMOVABLE SD AND SIM CARDS)

-

TRITON Accelerograph is a high-performance seismic recorder for permanent building instrumentation and Structural Health Monitoring (SHM) in high-seismic urban environments such as San Francisco and Los Angeles. Featuring 32-bit ADCs, integrated triaxial MEMS or Force Balance (FBA) sensors, ultra-low noise design, and GNSS time synchronization, TRITON delivers accurate strong-motion and ambient vibration data. With MiniSEED output, SeedLink compatibility, expandable input channels, removable SD storage, and a built-in battery backup (UPS), it ensures reliable, uninterrupted monitoring during and after earthquakes. Ideal for high-rise buildings, hospitals, and critical infrastructure.

REQUEST A QUOTE

OVERVIEW

REQUEST A QUOTE

5fd4f9cf5ce7f09c3f5c5eee info

Request a Demo

OVERVIEW

Description

TRITON Accelerograph – Advanced Seismic & SHM Solution for Urban Buildings

The TRITON Accelerograph is a high-performance seismic recorder engineered for permanent building instrumentation and Structural Health Monitoring (SHM) in high-seismic urban environments, including San Francisco and Los Angeles. Designed for reliability, precision, and scalability, TRITON delivers accurate strong-motion and ambient vibration data for both regulatory compliance and real-time post-earthquake assessment.

Key Performance Capabilities

Ultra-Low Noise Architecture

  • Internally shielded sensor design for exceptionally low seismic noise
  • Short internal signal paths to minimize interference
  • Optimized for dense urban environments and building installations

Sensor Technology & Dynamic Range

  • Integrated triaxial MEMS accelerometer options:
    • 90 dB or 110 dB dynamic range
  • Integrated triaxial Force Balance Accelerometer (FBA) option:
    • 160 dB dynamic range
  • Suitable for strong-motion earthquake recording, ambient vibration analysis, and long-term SHM applications

Expandable Channel Configuration

  • Optional 3 or 6 additional external input channels
  • High-resolution 24-bit inputs for external high-dynamic sensors
  • Supports multi-point structural response measurements within a single building

Data Acquisition, Timing & Storage

High-Resolution Seismic Recording

  • 32-bit delta-sigma ADCs for superior dynamic range and signal fidelity
  • Fully synchronized channels
  • Adjustable sampling rates up to 1000 samples per second (sps) per channel

Intelligent Data Management

  • Dual recording architecture:
    • Continuous ring-buffer recording
    • Trigger-based event recording
  • Data stored in industry-standard MiniSEED format
  • Removable SD card and internal solid-state memory for secure, flexible data storage

Advanced Event Detection & Timing

  • Firmware-based trigger logic to distinguish environmental vibrations from true seismic events
  • Essential for accurate monitoring in San Francisco and Los Angeles urban buildings
  • Built-in GNSS receiver provides absolute time synchronization
  • Enables fully synchronized multi-unit building or campus-scale networks

Networking, SHM & Software Integration

Flexible Deployment Architectures

  • Operates as a stand-alone seismic recorder
  • Supports MASTER–SLAVE network configurations for distributed monitoring

Centralized Monitoring & SHM

  • MASTER unit aggregates data from all SLAVE devices
  • Generates a single, synchronized multichannel dataset representing full structural response
  • Supports real-time post-earthquake structural condition assessment

Software Compatibility

  • Fully compatible with SeedLink protocol
  • Integrates seamlessly with:
    • SeisComP
    • Antelope
    • Earthworm

Power System & Operational Reliability

Wide Power Input

  • Operates on 9–28 VDC
  • Supplied with AC power adapter for fixed installations

Integrated Battery Backup (Built-In UPS)

  • Internal Li-Po battery providing up to 33 hours of autonomous operation
  • Battery backs up:
    • Recorder
    • Integrated 4G modem (optional)
    • External sensors
  • Ensures uninterrupted operation during power outages and seismic events

Mechanical Design & Installation

Rugged, Long-Life Enclosure

  • CNC-milled anodized aluminum housing
  • Optional AISI 316 stainless steel enclosure
  • Shock-resistant, vibration-resistant, and weather-resistant
  • Suitable for indoor or outdoor installations

Installation-Ready Configuration

  • Optional mounting plate or ground spikes
  • Designed for installation in:
    • Basements
    • Mechanical and electrical rooms
    • Rooftops
    • Structural locations within buildings

Application

Typical Applications

  • San Francisco building seismic instrumentation
  • Los Angeles building seismic monitoring
  • Structural Health Monitoring (SHM)
  • High-rise and mid-rise buildings
  • Hospitals and essential facilities
  • Bridges and critical infrastructure
  • Post-earthquake rapid condition assessment and decision support
