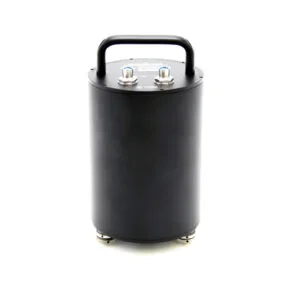

TELLUS 2S: SURFACE SHORTBAND SENSOR
Elevate your seismic monitoring with TELLUS-2S, engineered for excellence and superior results. Experience the perfect blend of quality and value, all encased in a design crafted for optimum performance in local seismic monitoring.
Crafted with high-quality geophones, TELLUS-2S features an electronically extended frequency response, ensuring high thermal stability and minimal noise interference. Each unit undergoes individual calibration on the shake table, achieving an impressive accuracy within ±1%.
Description
Demonstrating a flat bandpass ranging from 0.5 Hz to 100 Hz, TELLUS-2S offers a transduction factor of 400 V/m/s for the single-ended version and 800 V/m/s for the differential output, standing as a testament to precision and technological advancement.
Encased in robust AISI316 stainless steel housing, TELLUS-2S boasts a high protection level of IP67, rendering it an ideal choice for challenging environments and field applications. For projects with budgetary constraints, an equally durable aluminum hard-coated housing variant is available as a cost-effective alternative.
KEY FEATURES
TELLUS 2S SEISMOMETERS |
---|
Dynamic Range > 140dB |
Frequency Range 0.5 Hz ÷ 100 Hz |
Tansduction Factor 400 V/m/s (S) 800 V/m/s (D) |
High Accuracy |
Low Self-Noise |
Good Thermal Stability |
Low Power |
Robust |
No Need for Mechanical Clamping |
