S400 Pipe Inspection Robot

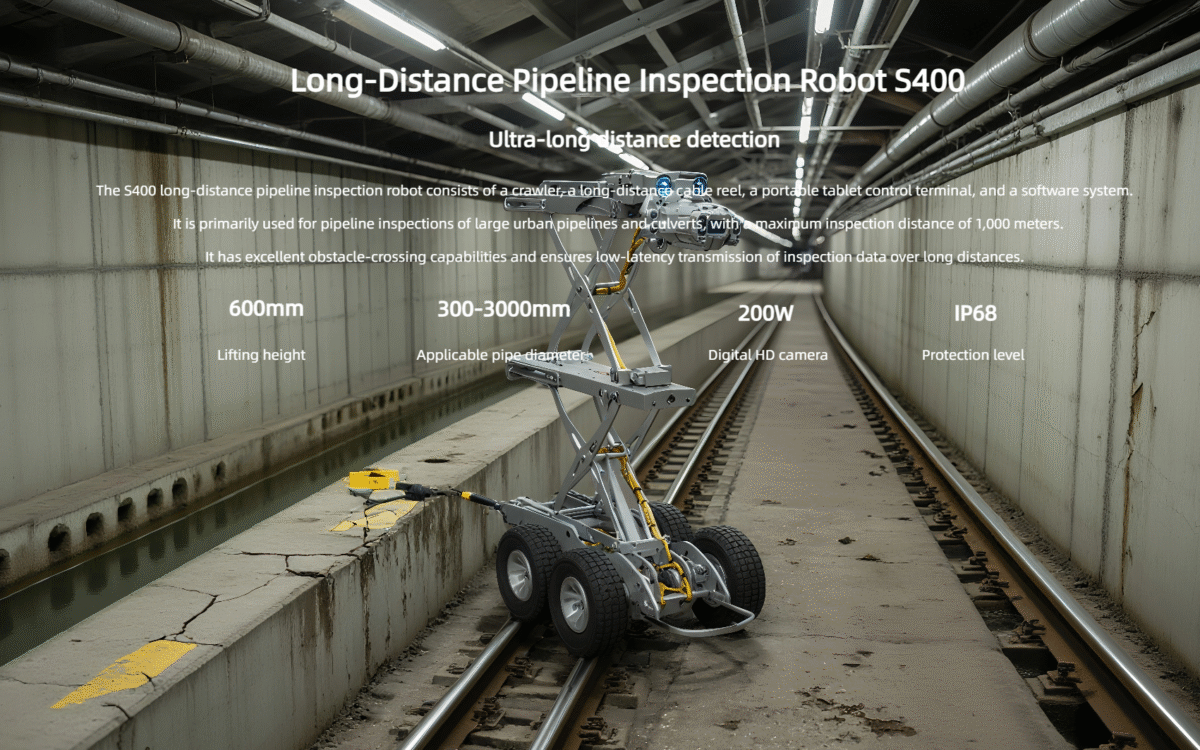

Long-Distance Pipeline Inspection Robot S400
Ultra-long-distance detection
OVERVIEW
Description

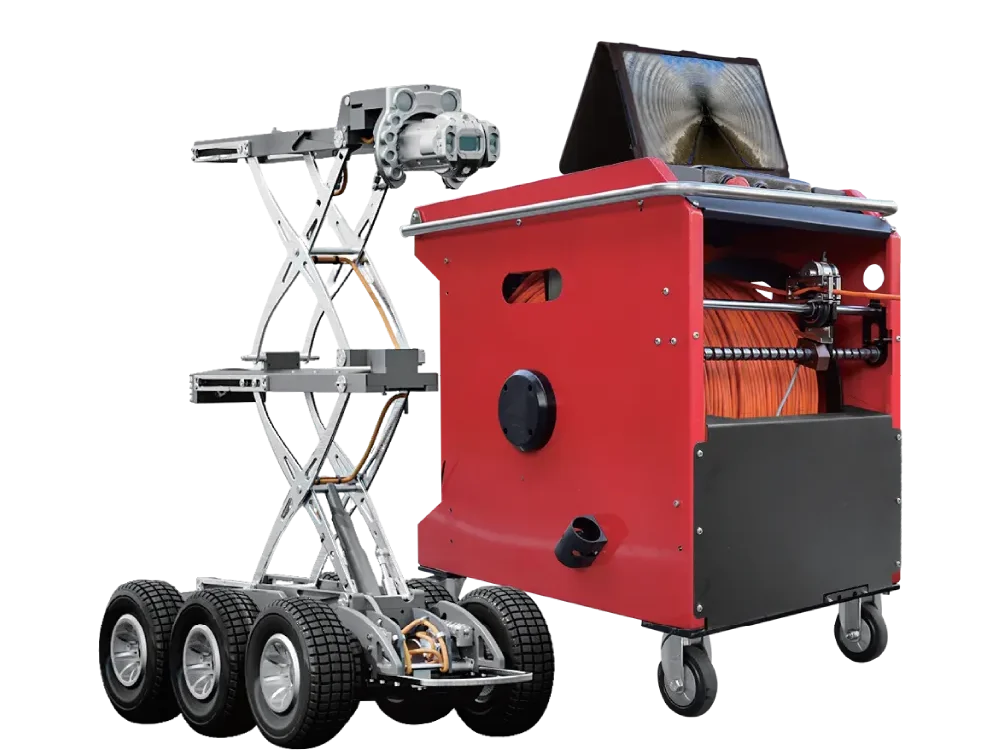

The S400 long-distance pipeline inspection robot consists of a crawler, a long-distance cable reel, a portable tablet control terminal, and a software system.

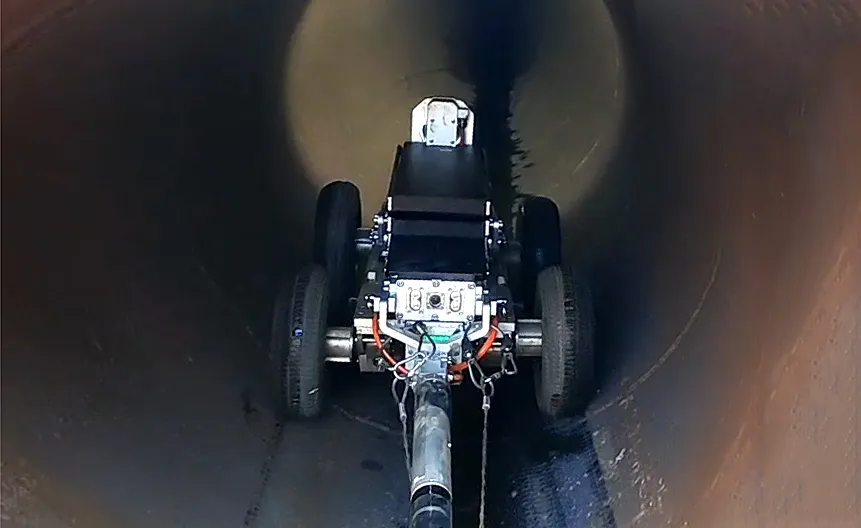

It is primarily used for pipeline inspections of large urban pipelines and culverts, with a maximum inspection distance of 1,000 meters.
It has excellent obstacle-crossing capabilities and ensures low-latency transmission of inspection data over long distances.
- 600mm Lifting height
- 300-3000mm Applicable pipe diameter
- 200W Digital HD camera
- IP68 Protection level
Technical Parameters
| Scope of application | DN300mm-3000mm |
|---|---|
| Lens protection | The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces |
| Obstacle surmounting ability | Maximum climbing ability up to 45° |
| Protection level | IP68 |
| Camera unit | Resolution: 1920*1080, 210W pixel non-delay high-definition camera |
| Drive | Six-wheel drive, powerful horsepower, maximum load capacity up to 50kg |
| Zoom | 10× optical, 12× digital |
| Wire take-up vehicle | Built-in large-capacity lithium battery, can work continuously for 8-10 hours |
| Lifting method | Special “X” type electric lift, the lifting frame can reach up to 250mm |
| Cables | 12-core special tensile cable, optional cable length 120~300m |
| Positioning | With high-precision GPS positioning system, real-time positioning |
| Meter | Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit |
| illumination | High brightness LED 8×2W |
| Anti-rollover design | Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler’s posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height) |
| Width measurement | With laser width measurement function |
| Defogging | With one-button defog function |
