S3831E Powered Sonar Inspection Robot
“Silver Shark No. 1” powered sonar detection robot
OVERVIEW
Description

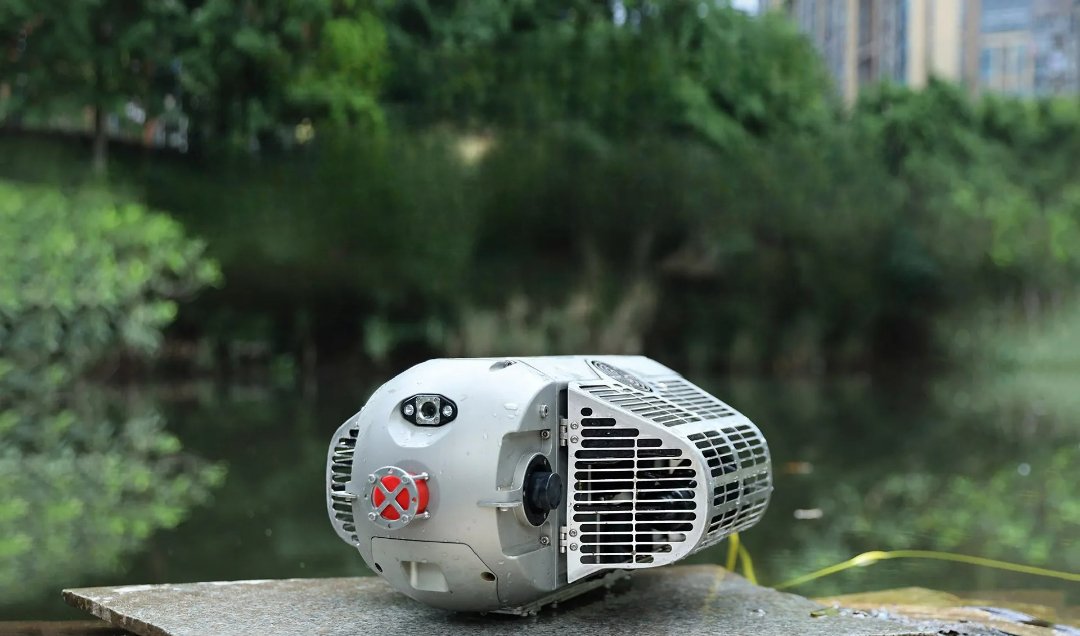

“Silver Shark No. 1” powered sonar detection robot

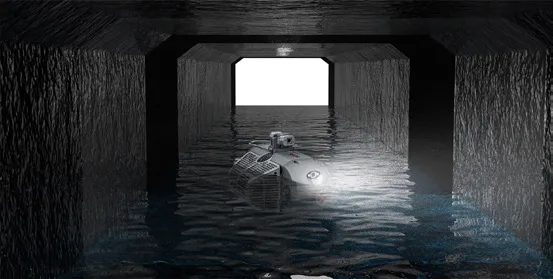

“Silver Shark 1” is a dynamic sonar system that can enter a pipeline as small as DN500 mm. It can detect water at high water level and The system uses a spiral propulsion design and is equipped with a high-definition camera to accurately and quickly complete the inspection in complex environments such as rivers, lakes, culverts and underground canals.
It can identify and determine pipeline defects such as rupture, deformation, sedimentation, and foreign matter penetration, automatically calculate the amount of silt deposition and generate a professional pipeline inspection report.
- IP68 Protection level
- 210W Dual HD cameras
- DN500-6000 Applicable pipe diameter
- 20kg Vehicle weight
| Self-powered, multiple sports postures | Can move forward, backward, turn, ascend, and descend (without a traction rope) |
|---|---|
| Depth cruise detection | Equipped with advanced sensors, smarter and more efficient |
| Long distance detection is easier | 200~1000m cables can be customized |
| High-precision sonar, accurate scanning | Fast scanning speed and high measurement accuracy |

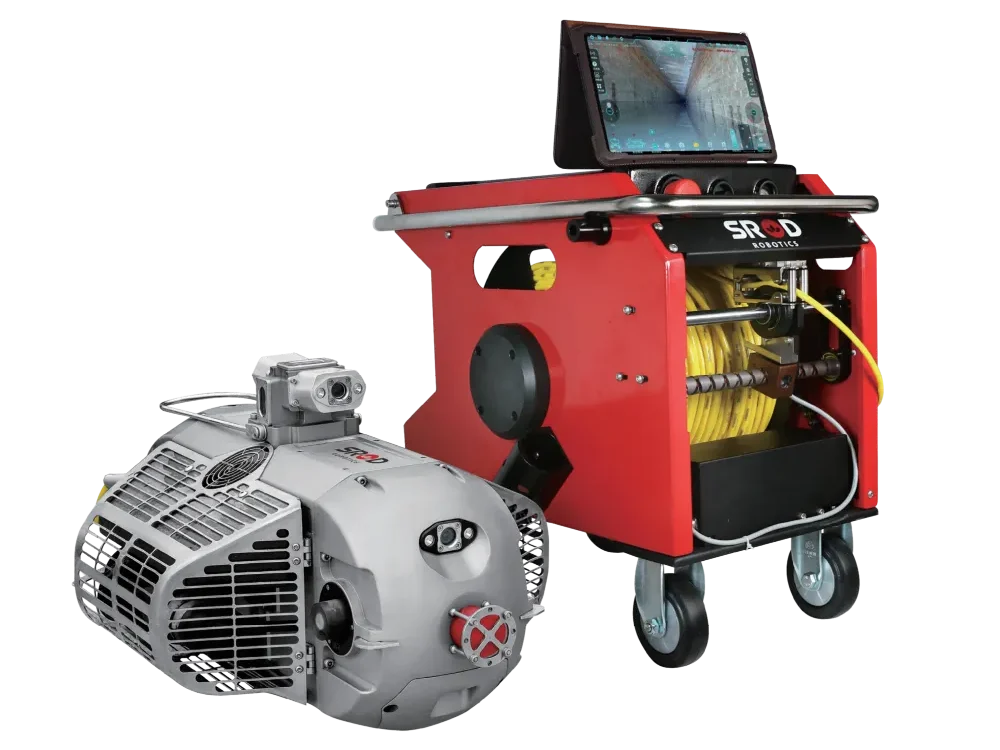

| Tablet operation, one-click report generation | Provide important basis for safe operation and maintenance |
| Dual camera system | Front and rear view 210W starlight camera |
Technical Parameters
| Applicable pipe diameter | DN500mm-6000mm |
|---|---|
| Sonar head | Frequency: 2.25MHz, taper: 1.4°, range: 0.25~6m, scans 1 circle every 1 second |
| Vehicle size | 600x424x251mm |
| Protection level | IP68, waterproof depth: 20 meters |
| Vehicle weight | 20Kg |
| Cable specifications | Standard 200m zero buoyancy cable (customizable 200~1000m) |
| Travel speed | Underwater: 0.8m/s |
| Battery life | High gear 2h, low gear 4h |
| Thruster | 2 horizontal, 2 vertical |
| Depth cruise | Can cruise underwater at a preset depth |
| Camera | On water: front and rear vision 210W, front and rear lights 22Weach; Underwater: front vision 210W, light 22W |
| Directional cruise | Can cruise in preset directions |

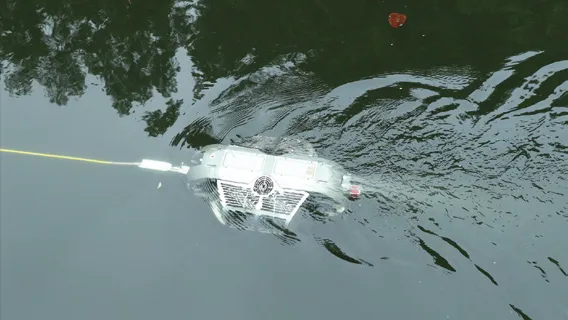

Application scenario cases
