Pipeline Inspection Crawler Robot – S200CHD
S200CHD Pipeline Inspection Robot – Advanced HD crawler with 360° scanning, dual front & rear cameras, laser width measurement, and one-key defog. Designed with a modular, IP68-rated body, it offers centimeter-level positioning, 8–10 hours battery life, and powerful lighting for crystal-clear, full-coverage pipeline inspections.
OVERVIEW
Description

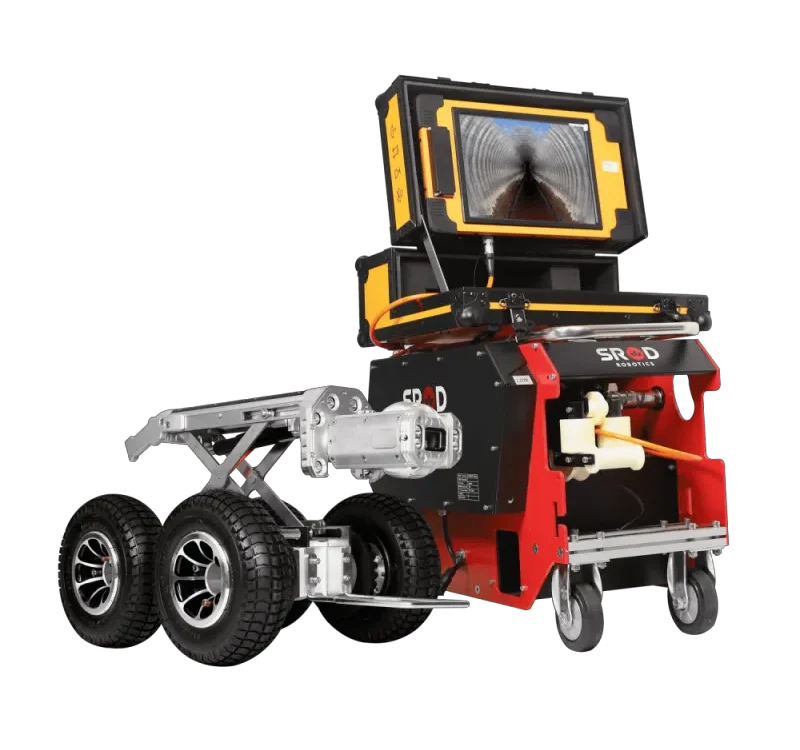

Pipeline Inspection Crawler Robot S200CHD
Engineered for precision and clarity, the S200CHD Pipeline Inspection Robot delivers high-definition imaging with unmatched stability for superior defect detection. Built on an intelligent wheeled platform, it integrates industrial-grade HD color cameras, posture detection, intelligent image recording, powerful lighting, and a high-precision meter-counting cable reel.
The S200CHD navigates pipelines with ease to record video, capture defect images, pinpoint defect locations, and generate professional inspection reports.
Key Features:
- IP68-rated protection for harsh environments

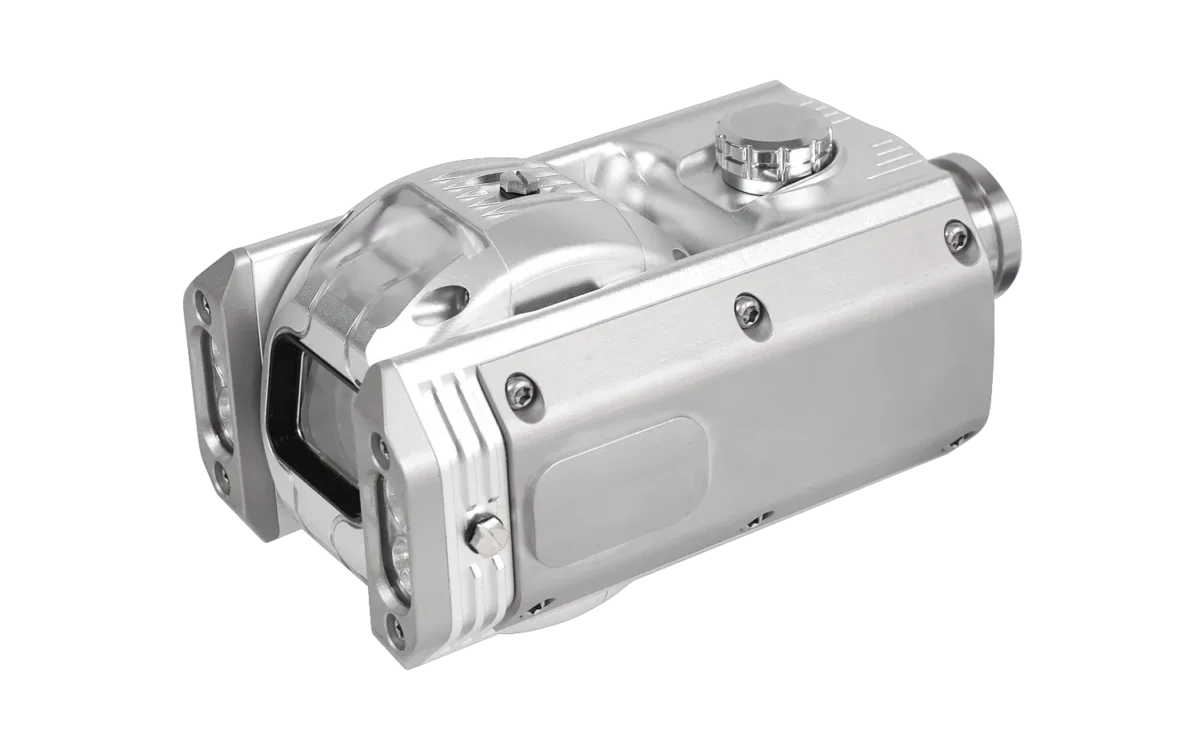

- 1090F1 HD camera with 360° scanning and angle control
- GPS high-precision positioning
- 8–10 hours ultra-long battery life
- Laser width measurement & one-key defog for enhanced clarity
- Dual HD cameras (front & rear) with upgraded front imaging
- Modular dual-compartment design for easy installation, maintenance, and accessory interchangeability
- 360° pipe wall inspection with radial rotation up to 230° and full axial rotation
- Centimeter-level meter counting device for exact defect location tracking
- Sealed dustproof and waterproof system, backed by 10+ years of sealing expertise
SPECIFICATIONS
| Scope of application | DN200mm-3000mm |
|---|---|
| Lens protection | The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces |
| Obstacle surmounting ability | Maximum climbing ability up to 40° |
| Protection level | IP68 |
| Camera unit | Resolution: 1920*1080, 210W pixel non-delay high-definition camera |
| Drive | Six-wheel drive, powerful horsepower, maximum load capacity up to 50kg |
| Zoom | 10× optical, 12× digital |
| Wire take-up vehicle | Manual, electric take-up (optional) |

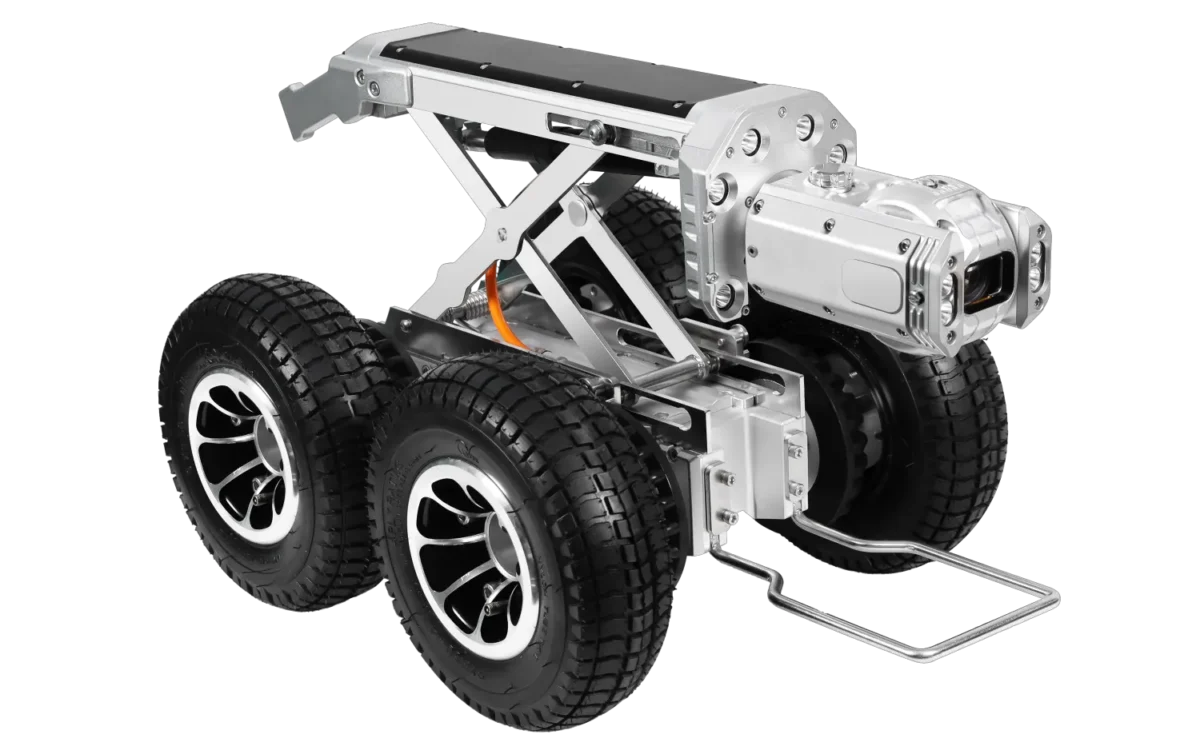

| Lifting method | “X” type electric lifting frame, with large lifting torque, can easily lift the equipment, the lens lift is 200mm |
| Cables | 12-core special tensile cable, optional cable length 120~300m |
| Positioning | With high-precision GPS positioning system, real-time positioning |

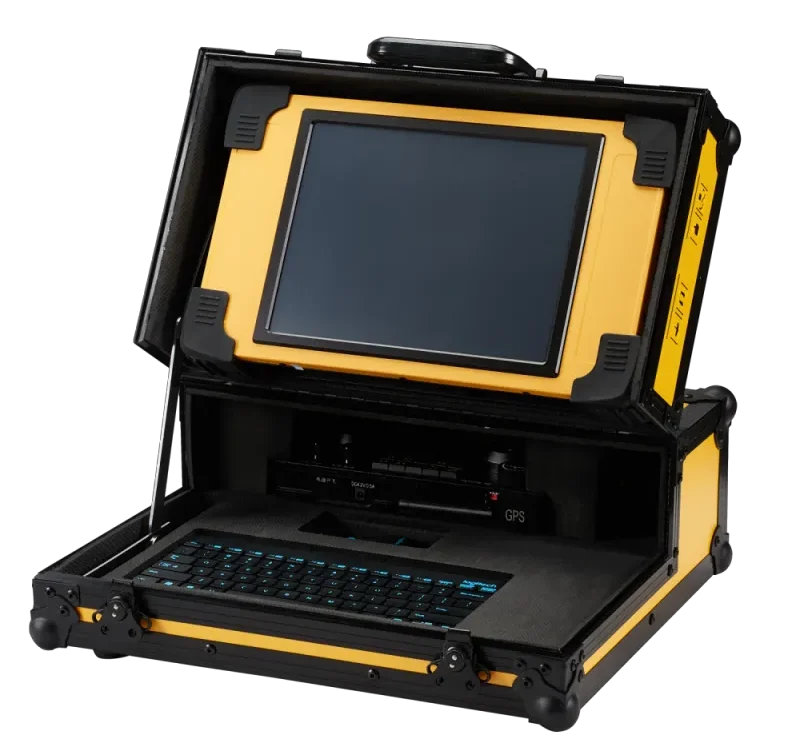

| Meter | Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit |
| illumination | High brightness LED 8×2W |
| Anti-rollover design | Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler’s posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height) |
| Width measurement | With laser width measurement function |
| Defogging | With one-button defog function |
