Pipeline Inspection Crawler Robot – S100
S100 Pipeline Inspection Robot – A compact, modular 6-wheel crawler with real-time tilt sensing, HD imaging, and GPS positioning. Designed for 100–600 mm pipes, it delivers 8–10 hours of operation with IP68 protection, adjustable speed, and automatic inspection reporting.
OVERVIEW
Description

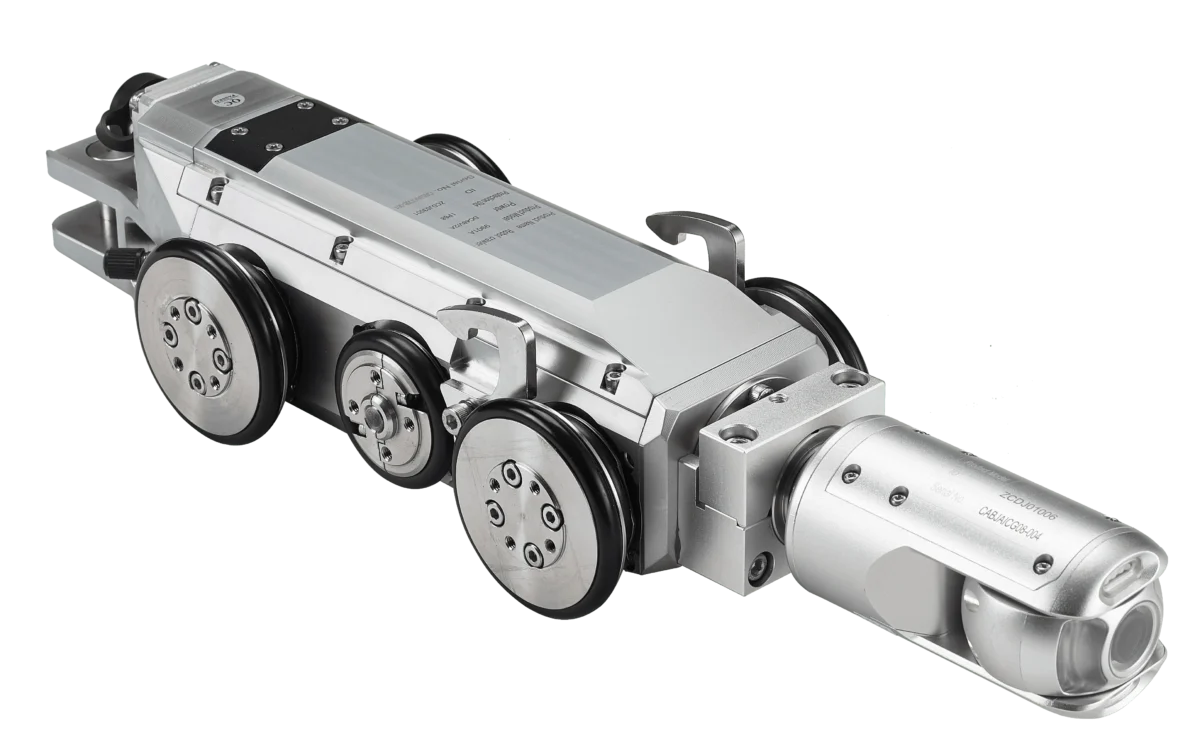

Pipeline Inspection Robot S100
Compact yet powerful, the S100 Pipeline Inspection Crawler Robot is engineered for efficiency in confined and challenging environments. Its modular design, six-wheel drive, and integrated tilt sensor deliver real-time status feedback for precise maneuvering.
Despite its small size, the S100 offers exceptional flexibility with adjustable crawling speed, making it ideal for inspections in hidden or restricted spaces. Equipped with advanced imaging, it provides clear real-time visuals and automatically processes inspection data into professional reports.
Key Features:
-
IP68-rated protection for reliable operation in harsh conditions
-
Applicable pipe diameter: 100–600 mm
-
High-precision GPS positioning
-
Ultra-long battery life: 8–10 hours continuous operation
SPECIFICATIONS
| Scope of application | DN100mm-600mm |
|---|---|
| Protection level | IP68 |
| Obstacle surmounting ability | Maximum climbing ability up to 40° |

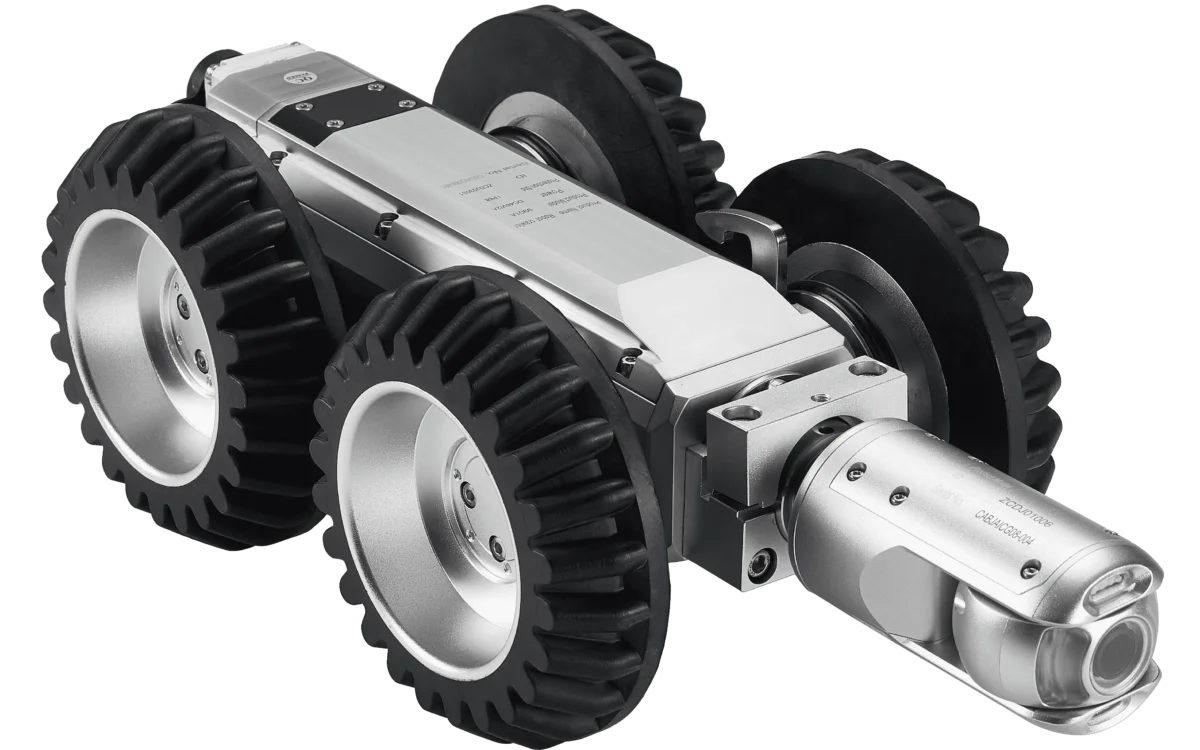

| Extensions | Expandable bracket, widen chassis |
| Cables | 12-core special tensile cable, optional cable length 120~300m |

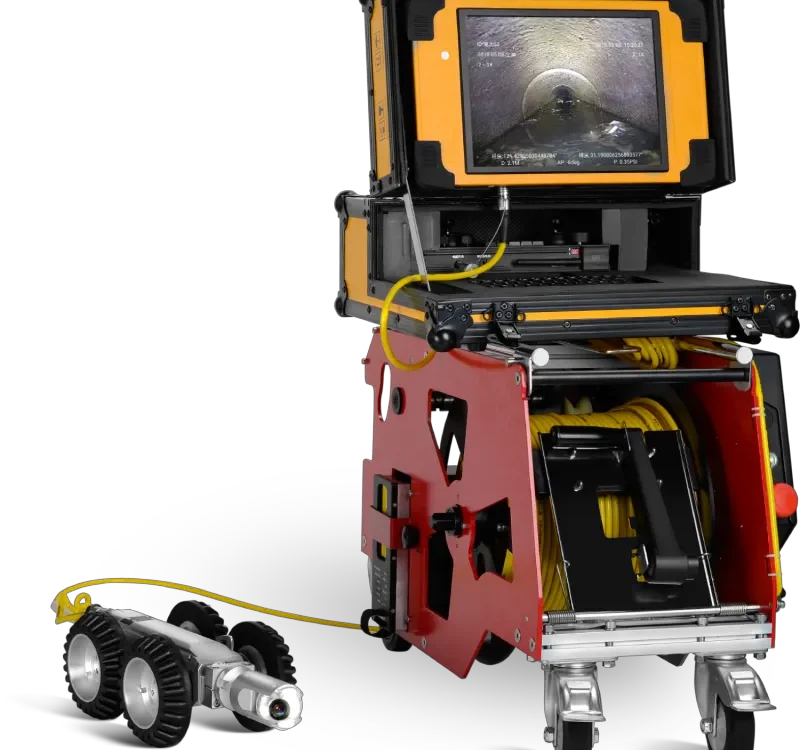

| Wire take-up vehicle | Built-in large-capacity lithium battery, can work continuously for 8-10 hours |
| Light source | High-brightness LED lights, segmented intensity adjustment, to achieve the best effect of matching lighting and environment |
| Drive | Swiss imported motor, six-wheel drive, load capacity not less than 50kg/m |
| Camera unit | 65W (optional 210W HD camera) |
| Meter | Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit |
