GZ-GN4
Four Components Seismic Intersity Instrument
Main Application Fields:
1. Free field intensity seismic observation, building structure observation and artificial blasting observation;
2. Earthquake monitoring of localities, reservoirs, coal mines and oil fields;
3. Low-frequency vibration monitoring of dams, Bridges, stations, tunnels and other facilities;4. Building earthquake early warning system, etc.

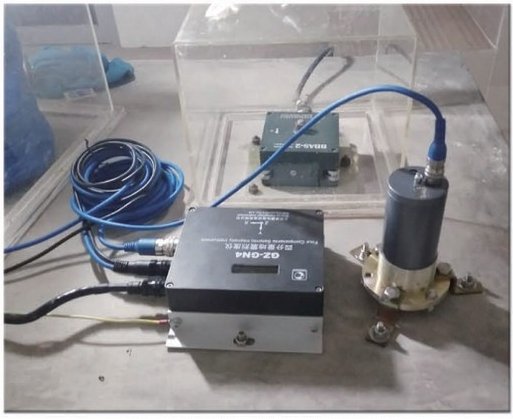

OVERVIEW
Description
The GZ-GN4 four-component seismic intensity meter employs a three-axis MEMS accelerometer and one-axis short-period velocity sensor, featuring electromagnetic transduction and force-balanced feedback architecture. Its circuitry is housed in a sealed aluminum enclosure measuring 180mm×150mm×68mm, weighing approximately 2.2
kg. The built-in 10-year maintenance-free battery provides continuous power for about 5 minutes during external power outages. Utilizing force-balanced electronic feedback technology, the GZ-GN4 delivers exceptional dynamic range, wide frequency bandwidth, and excellent linearity. Calibration signals include pulse, sine wave, and random
code options. It supports external GPS synchronization and NTP time synchronization services, enhances power interference resistance, and features STA/LTA (Time-Sensitive Access) and level-triggered functionality STA/LTA+ level trigger combination, can be configured separately for each component voting; data management adopts internal storage space management, set earthquake event recording mode, select intensity calculation method, manually set system time, configure network server, internal system status monitoring, remote start of equipment.

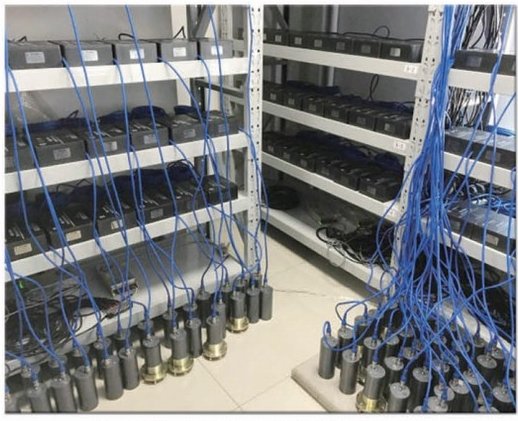

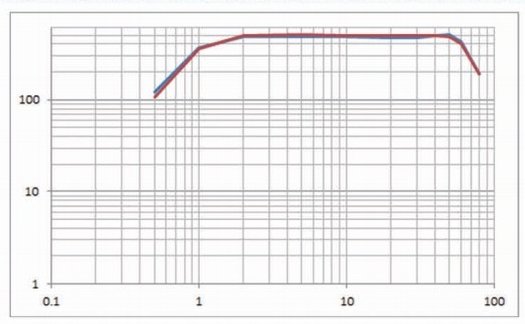

Spectrum Characteristic Curve

Self-Noise Curve

Technical Parameter
Three-component MEMS acceleration output and Digital performance one-component short-period velocity
Three-dimensional MEMS performance
-
Full scale range: horizontal: ±2g, vertical: -1g~3g
-
Bandwidth: DC~80Hz
-
Dynamic range: ≥95dB
-
Nonlinearity: ≤1%
-
Orthogonality: ≤1%
-
Temperature drift: ≤300ug/℃
Acquisition Parameters
-
Number of acquisition channels: 4
-
Sampling: synchronous sampling
-
Bit length: 28 bits
-
Filter parameters: linear phase or minimum phase
-
Sampling rate: 50/100/200/500sps
-
Overall sensitivity: 500count/gal
-
Timing mode: support GNSS timing and NTP network timing
System Power Supply
-
Sensitivity: 1.25V/g
-
Bandwidth: 1Hz~60Hz
-
Dynamic range: ≥135 dB
Single Particle Short Week Seismic Performance
-
Structure: Electromagnetic energy, force balance feedback
-
External power supply: 9VDC~18VDC (recommended 12VDC)
-
POE power supply: Maximum output ±5V; supports POE network power supply
-
Sensitivity: 2000V/(m/s)
-
Distortion: total harmonic distortion <0.2%
-
System power consumption: about 2W
Work Environment
-
Working temperature: -30℃~60℃
-
Working humidity: <98%
-
Protection level: IP67
