GL-PS2
Short Period Seismograph
Main application fields:

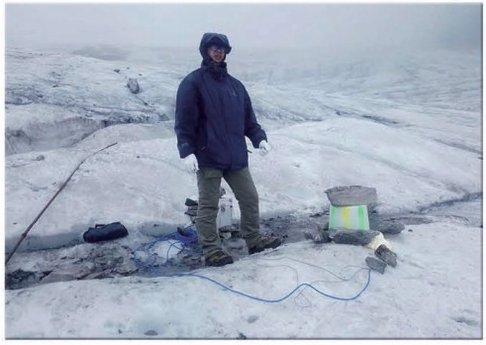

1. Emergency mobile observation;
2. Earthquake scientific investigation;
3. Earthquake early warning monitoring;
4. Landslide and rockfall monitoring;
5. Reservoir earthquake monitoring;
6. Coal mine earthquake monitoring;
7. Oilfield seismic monitoring.
OVERVIEW
Description
The GL-PS2 is a compact, integrated portable short-period digital seismometer specifically engineered for mobile seismic monitoring applications. This compact device combines a three-component short-period feedback seismometer with a 24-bit data acquisition system, delivering integrated functionality, energy efficiency, and portability. Designed for mobile emergency surveys, reservoir seismic studies, and scientific array operations, the GL-PS2 incorporates a complete three-component displacement-sensitive short-period seismometer with a 2-second to 50 Hz response bandwidth. Its data acquisition module integrates real-time monitoring functions, including three-channel signal extraction and filtering, while providing users with both minimum-phase and linear-phase FIR filters. Equipped with an embedded Linux operating system, the device ensures robust data management and transmission capabilities. Through LAN interfaces, it supports multi-channel continuous real-time data streaming and remote FTP file downloads. The built-in 8GB expandable storage enables long-term data preservation for extended monitoring periods.

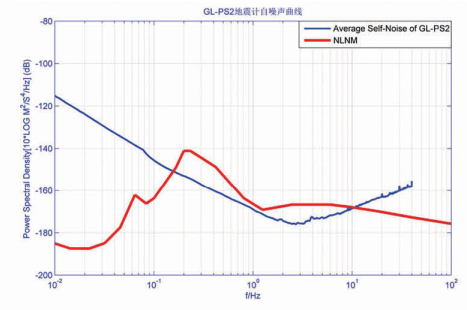

Earthquake meter noise curve

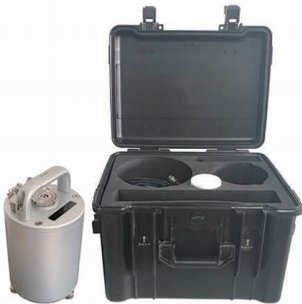

Complete machine packaging

Technical Parameter
-
Sensor
-
Bandwidth: 0.5 Hz ~ 50 Hz
-
Sensitivity: 1000 V/(m/s)
-
Dynamic range: > 140 dB
-
Distortion: 0.1%
Data Acquisition (DA)
-
ADC: 24 bits
-
Sampling rate: 50 sps, 100 sps, 200 sps, 500 sps
-
Digital filter: Linear phase FIR, Minimum phase FIR
-
Distortion: < -100 dB
Data Logging
-
Recording method: Event trigger recording, Continuous waveform recording
-
Data format: EVT, MiniSEED
-
Event trigger: STA/LTA, Level, Timing
Calibration Signal Generator
-
DAC: 16 bits, Maximum output current ±5 mA
-
Signal type: Pulse, Sine wave (configurable parameters)
-
Start mode: Timing, Instruction
Data Communication Interface
-
Interface: LAN Ethernet
-
Protocol: TCP/IP
Time Service
-
Timing: GNSS timing unit / IRIG code input
-
Time synchronization error: < 0.01 ms
-
Clock stability: Better than 0.5 ppm
Overall Machine Performance
-
Conversion factor: 74.5 nV/count
-
Dynamic range: > 135 dB @ 100 sps
-
Remote monitoring: Calibration, Parameter setting, Working status monitoring
-
Power supply: +12V (10V ~ 20V), average power consumption ~1.2 W
-
Working environment: -20℃ ~ 60℃, relative humidity 98%
-
Size and weight: Ø140 mm × 193 mm × 243 mm (including handle), 4.5 kg
-
External lock lever: Easy to maintain, strong anti-transport capability
-
