ZY-30Y Precision-Controlled Seismic Source Generator
The ZY-30Y Precision-Controlled Seismic Source is an eco-friendly, electrically driven system that generates highly accurate and repeatable elastic waves for geophysical research, seismic tomography, and long-term monitoring. With precise frequency control, low noise, and continuous operation, it offers a reliable alternative to traditional blasting methods for subsurface imaging and seismic studies.
OVERVIEW
Description
The ZY-30Y Precision-Controlled Seismic Source is an advanced artificial seismic device designed to generate highly accurate, repeatable, and environmentally friendly elastic wave signals for geophysical research and monitoring. Originally developed in the 1990s, this next-generation system has evolved into a reliable solution for modern seismic exploration and continuous observation.
Technology & Operation

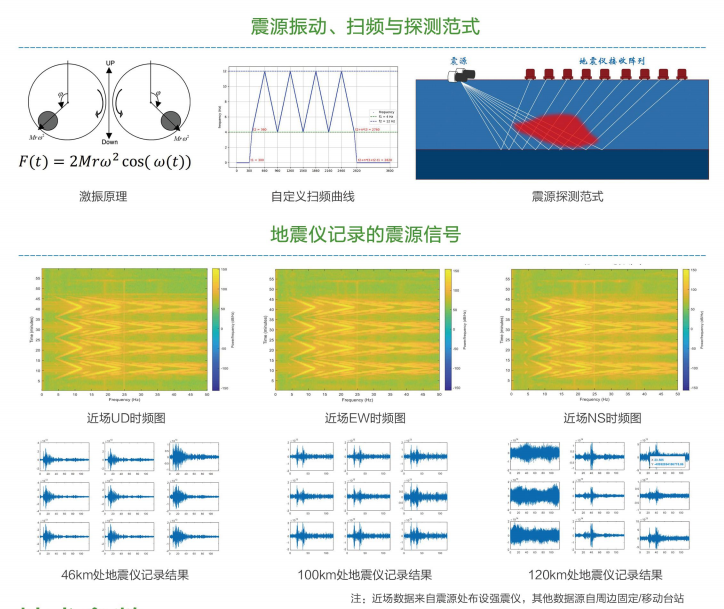

At its core, the system utilizes a precisely controlled drive mechanism that rotates two eccentric masses toward each other, producing pre-designed elastic waves at specific times and locations. These waves penetrate deep into the subsurface and are captured by remote receivers for processing and analysis, enabling detailed imaging and monitoring of underground structures.
The ZY-30Y ensures stable and repeatable data through precise frequency control of the rotating masses, delivering high-precision elastic wave outputs. Coupled with a broadband signal acquisition system, it achieves excellent signal-to-noise ratios, while advanced processing methods such as signal stacking further enhance data quality. Synchronization between the source and receivers is maintained via GNSS timing and positioning, ensuring unparalleled spatial and temporal accuracy.
Key Features & Benefits
- High Precision & Repeatability – Stable frequency output enables consistent, reproducible seismic data.
- Eco-Friendly Operation – Electrically driven with low power consumption, minimal acoustic noise, and no environmental disturbance, unlike blasting methods.
- Continuous Monitoring – Capable of long-term operation with repeatable energy output, making it ideal for continuous seismic observation.
- Robust Performance – Delivers elastic waves capable of traveling hundreds of kilometers, supporting large-scale monitoring campaigns.
- Versatile Deployment – Requires minimal installation preparation and can be integrated with strong-motion sensors, broadband seismometers, and nodal instruments.

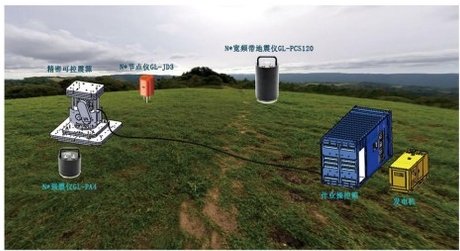

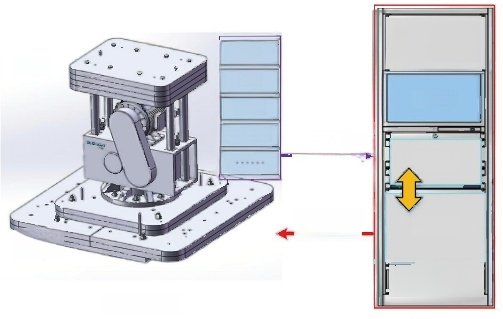

System Composition
The complete seismic source system includes:
- Excitation Unit – Electromechanical drive with dual eccentric mass configuration
- Control Cabinet / Operator Console – Precision frequency control and system management
- General Generator – Stable power supply for continuous operation
- Integration Options – Compatible with nodal instruments, broadband and strong-motion seismometers, and automated seismic stratigraphy observation systems
SPECIFICATIONS
Vibration parameters
• Vibration force: 43 TF @ 12 Hz
• Excitation force direction: vertical
• Output excitation force frequency: 4~12 Hz
• Scan frequency method: fixed frequency / linear
Working mode
• Mobile / fixed
• Positioning: GNSS / Biennuo
Electrical parameters
• Working voltage: 380V AC, 50~60 Hz
• Motor power: 150 kW
• Power supply: general generator / municipal power
Physical dimensions
• Overall size: about 3500 × 3500 × 3000 mm
• Base: steel plate (including counterweight)
• Weight: 50 T
Software functions
• Motor, controller, and other hardware parameter setting
• Fixed frequency, linear scan frequency, and other operation mode input
• Sweep frequency, operation time, and other parameter settings
• Exciter real-time acceleration and temperature data curve
• Real-time display of current, voltage, and frequency
APPLICATIONS
- Seismic tomography and subsurface imaging
- Reservoir-induced seismicity studies
- Earthquake and mining seismicity monitoring
- Long-term geophysical observation networks
- Dynamic monitoring of underground targets and structural changes
