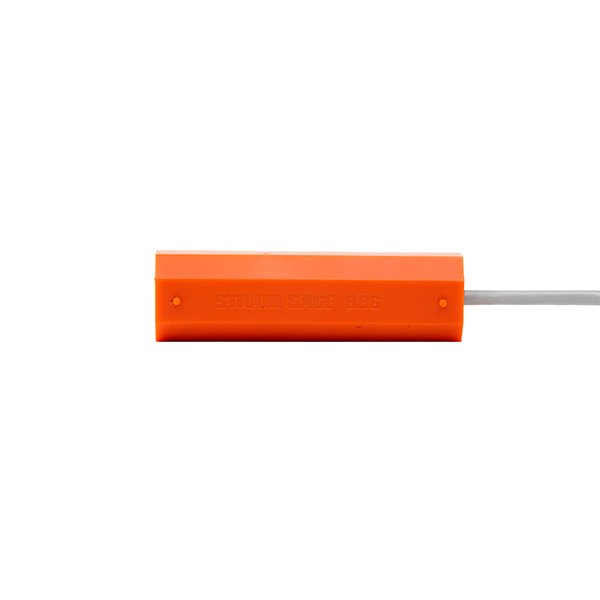

VW Spot-Weldable Strain Gauge
VW Spot-Weldable Strain Gauge, as the name suggested, can be welded to load-bearing beams or tunnel segments to measure its strain. it can provide accurate, reliable, and stable data reading over long lengths.
OVERVIEW
Description
Introduction
VW Spot-Weldable Strain Gauge, as the name suggested, can be welded to load-bearing beams or tunnel segments to measure its strain. it can provide accurate, reliable, and stable data reading over long lengths.
Applications
Monitoring distribution of load in pile tests
Monitoring areas of concentrated stress in pipes
Measuring strain in tunnel linings and supports
Monitoring load in struts used to brace deep excavations
Monitoring structural members of buildings and bridges during and after construction
Key Features
- High Accuracy
- High Resolution
- Compatible with dot series datalogger
- Waterproof
Best Suited
- Struts
- Tunnel Segment
- Sheet Pile Walling
Product Specification
| Sensor Type | Vibrating Wire Sensor |
|---|---|
| Temperature Type | Thermistor |
| Measuring Range | 3000 micro-strain |
| Temperature Resolution | 0.1°C |
| Accuracy | ±0.1% F.S. |
| Working Temperature | -30°C to 80°C |
| Sensitivity | 1 micro-strain |

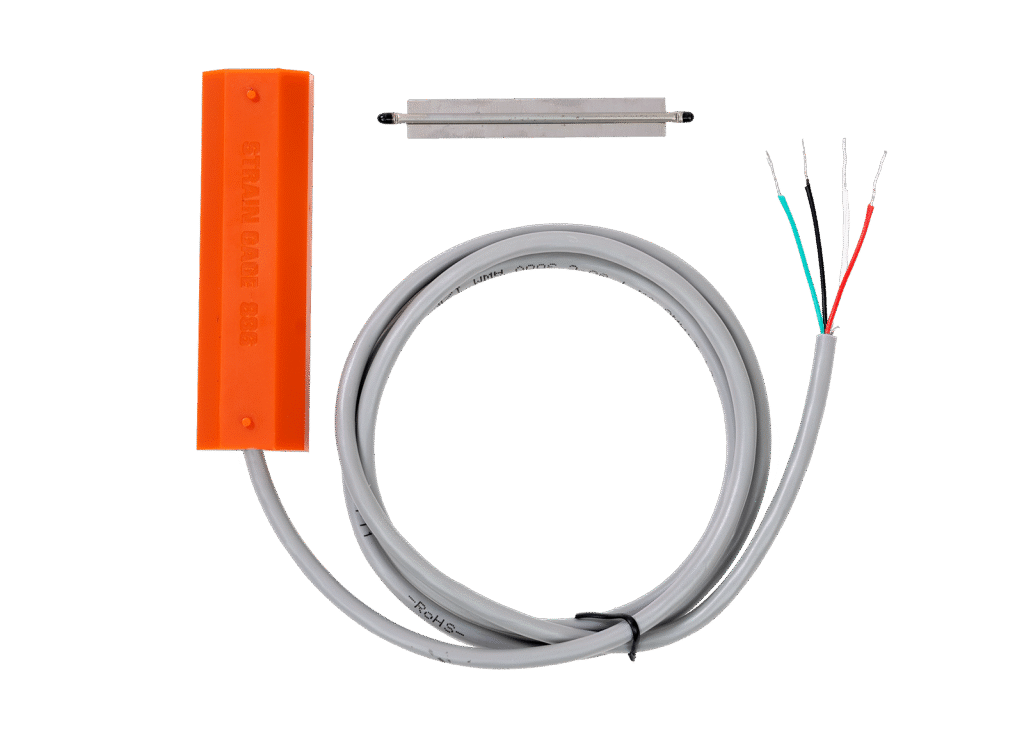

| Dimension (W x L x H) | Sensor: 85 x 25 x 14 mm Strain gauge: 70 x 9 x 2.4 mm |
*All prices, features, and specifications are subject to change without prior notice.
