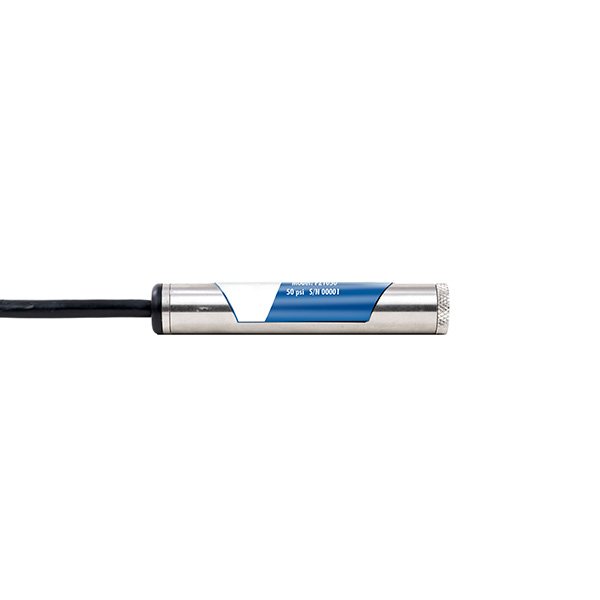

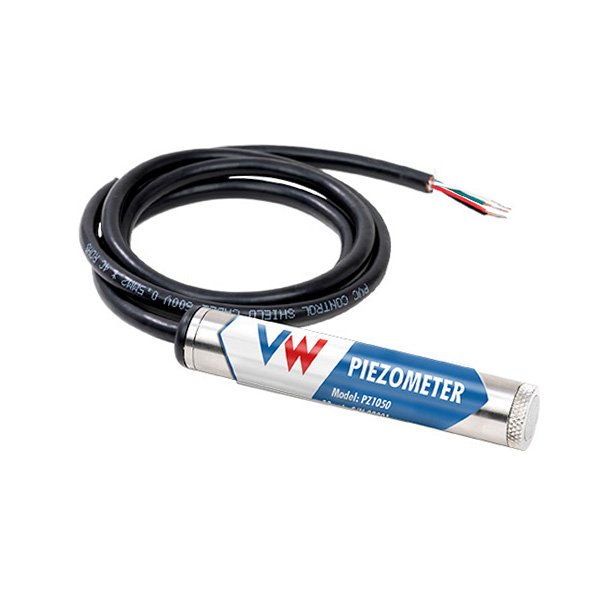

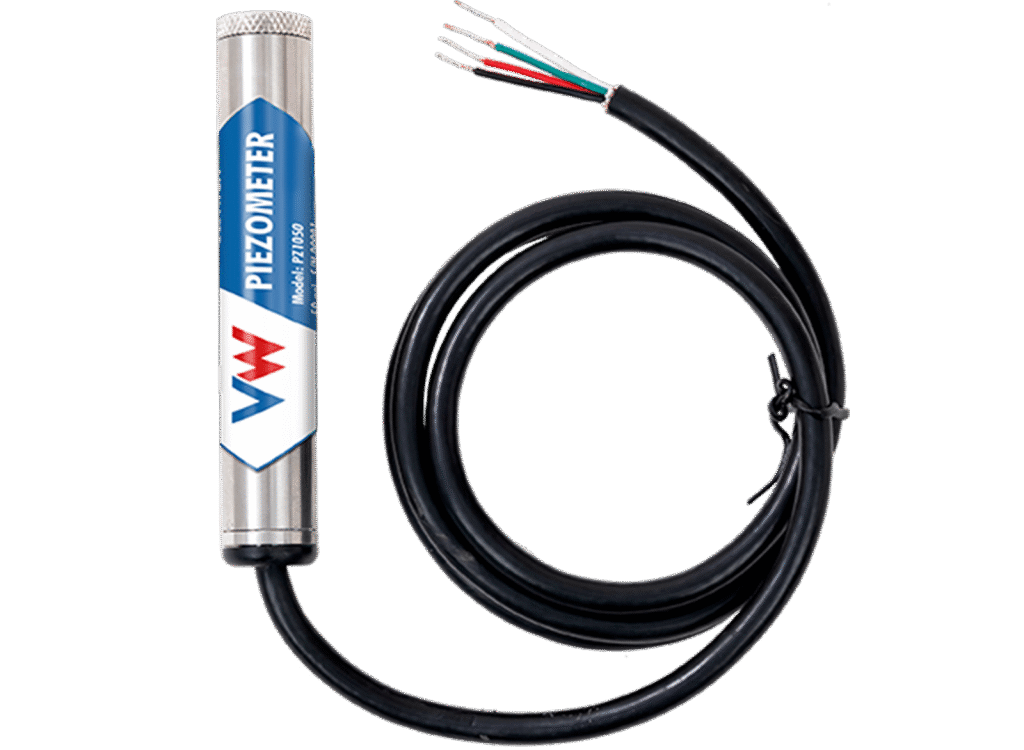

VW Piezometer
The VW Piezometer is a cutting-edge sensor enclosed within a stainless-steel cylinder. It utilizes a magnetic coil to detect vibrations in the steel cords, accurately measuring vibration frequencies and converting them into valuable data. This versatile tool finds applications in structural health monitoring, geotechnical investigations, machinery analysis, environmental studies, and research and development, offering precise, reliable insights for informed decision-making and optimized project performance.
OVERVIEW
Description
Introduction
The VW Piezometer is a cutting-edge sensor enclosed within a stainless-steel cylinder. It utilizes a magnetic coil to detect vibrations in the steel cords, accurately measuring vibration frequencies and converting them into valuable data. This versatile tool finds applications in structural health monitoring, geotechnical investigations, machinery analysis, environmental studies, and research and development, offering precise, reliable insights for informed decision-making and optimized project performance.
Applications
Measurement of groundwater levels
Monitoring of borehole pressure
Key Features
- Alloy Pressure Sensor
- Mechanical Locking
- Temperature Sensor
- Multi Layers Cable Sealed
Best Suited
- Dam
- Ducts
- Mining Wells
- Tunnels
- Road Construction
- Soft Ground Surfaces
Product Specification
| Sensor Type | Vibrating Wire Sensor |
|---|---|
| Temperature Type | Thermistor, resolution 0.1°C |
| Measuring Range | 50 psi or 100 psi |
| Working Temperature | -40°C to 125°C |
| Accuracy | ±0.1% F.S. |
| Filter | 50-micron sintered stainless steel |
| Max Pressure | 150 % |
| Resolution | 0.025% F.S. |
| Material | SUS316 Stainless Steel |
| Dimension (W x L x H) | 20.2 x 114 x 20.2 mm |
| Signal Cable | 4 wire |
*All prices, features, and specifications are subject to change without prior notice.
