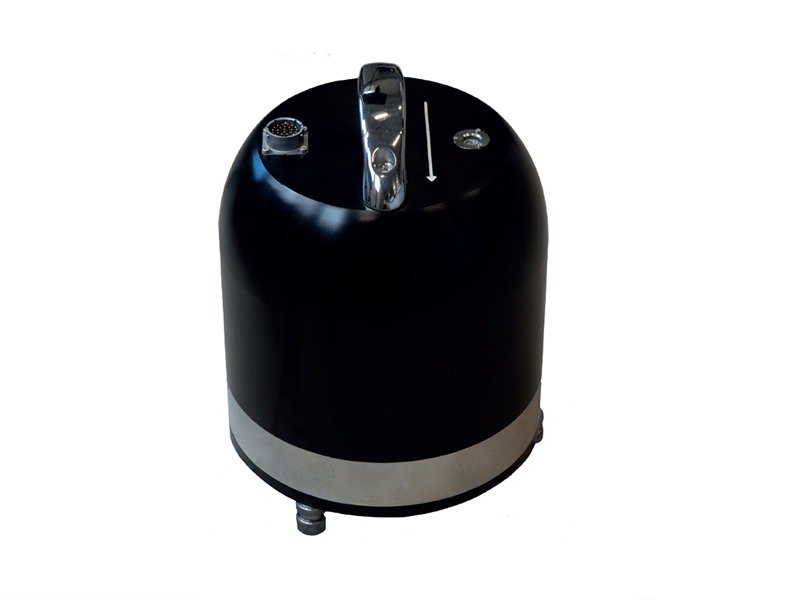

TELLUS-BB
TELLUS-BB is a high quality broad-band triaxial seismometer designed for easy deployment and safe transport.
TELLUS-BB is based on Galperin configuration which allows to more easily distinguish external noise sources from internal ones and achieve higher performance.
TELLUS-BB can be ordered with a flat band-pass between 200s-20s and 100Hz. The lower frequency corner can be customized at the
order. The transduction factor is 1500V/m/s, the output differential 40Vpp.
TELLUS-BB is manufactured in aluminum (surface treatment) housing offering a high level of protection IP68K making it ideal for harsh environment and for field use.
TELLUS-BB is robust magnetic shielded and exhibits a low temperature sensitivity.
OVERVIEW
Description
High Performance triaxial broad-band seismometer.
TELLUS-BB is a high quality broad-band triaxial seismometer designed for easy deployment and safe transport.
TELLUS-BB is based on Galperin configuration which allows to more easily distinguish external noise sources from internal ones and achieve higher performance.
TELLUS-BB can be ordered with a flat band-pass between 200s-20s and 100Hz. The lower frequency corner can be customized at the
order. The transduction factor is 1500V/m/s, the output differential 40Vpp.
TELLUS-BB is manufactured in aluminum (surface treatment) housing offering a high level of protection IP68K making it ideal for harsh environment and for field use.
TELLUS-BB is robust magnetic shielded and exhibits a low temperature sensitivity.
KEY FEATURES
Dynamic Range > 150db
Frequency Range 200s-20s ÷ 100 Hz
Transduction Factor 1500v/M/S (S)
High Accuracy
Low Self-Noise
Good Thermal Stability
Low Power
Robust
Precision Factory Calibration
