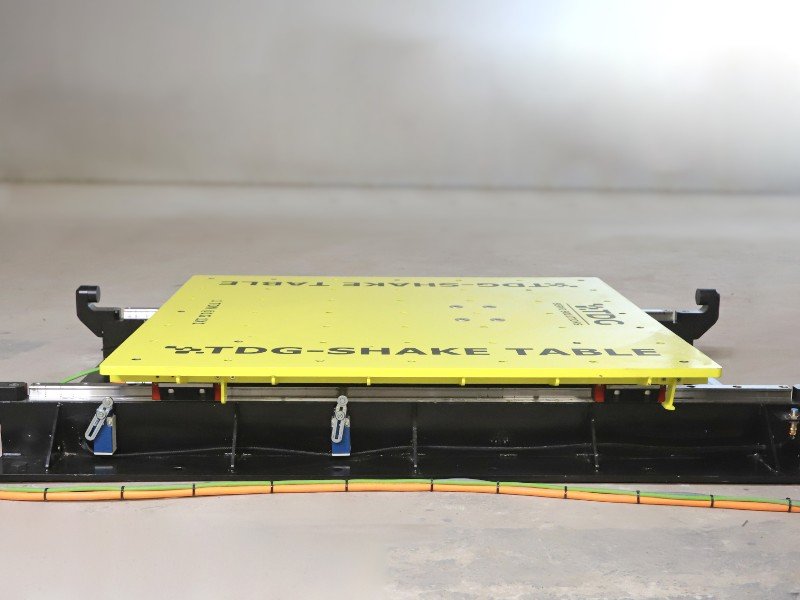

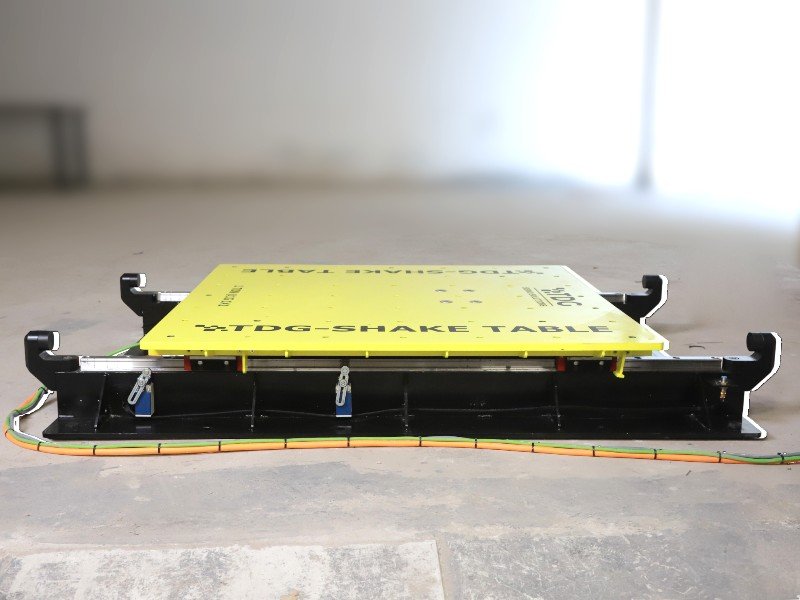

TDG-SHAKETABLE 1 TON
This product is designed for tests requiring a relatively large table size and payloads around 1 ton. It can replay recorded earthquakes, apply predefined waveforms such as sine, triangle etc. and run any acceleration or displacement-time history provided by the user.
It’s mostly used for small scale structural mechanics, earthquake, soil and geological tests.
OVERVIEW
Description

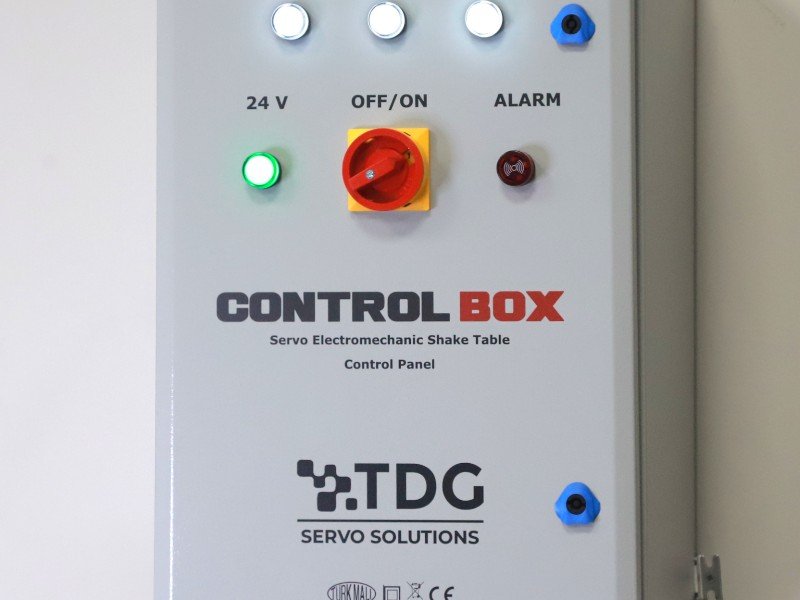

System is fully operable through the PC Software.
Besides being cost-effective when compared to hydraulic systems, low power consumption, low maintenance cost and compactness are other advantages.

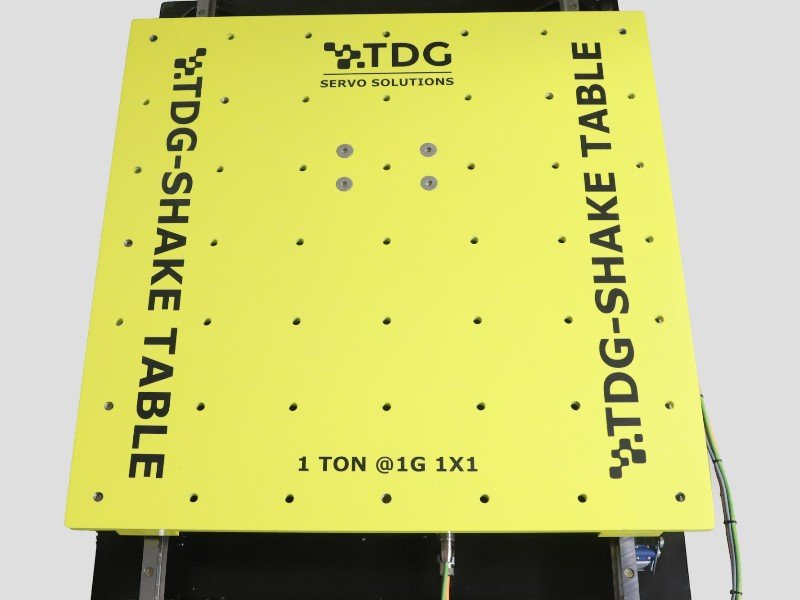

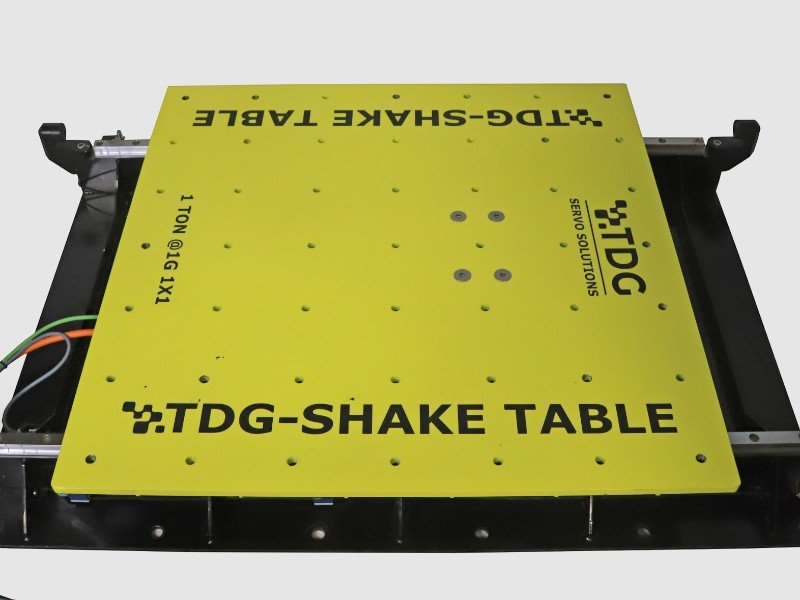

- 1.5m x 1.5 m Top Table
- 1 ton payload (@ ±1 g)
- ±200 mm Stroke
- Closed Loop PID Control
- Precise Control with Servo Motor
- Earthquake Simulation
- Easy Setup, Plug & Play
- Low Power Consumption
- High Industrial Quality, Virtually Maintenance Free
UNMATCHED FEATURES & UNMATCHED PRICING
NUMBER OF AXES / CAPACITY / TABLE SIZE / STROKE
Servo-Electro-Mechanical Shake Table solutions can be customized in terms of payload capacity, table size, stroke and number of axes.
COMPLEMENTARY MEASUREMENT SYSTEM
This earthquake simulator is best used with a complementary measurement set, making it possible to measure the reaction of the test model in terms of acceleration and displacement.
(TESTBOX 2010 Digitizer, SENSEBOX ACC-7001/7002 Accelerometer, Displacement Transducer)
APPLICATIONS
TDG-SHAKETABLE 1 TON |
---|
CIVIL ENGINEERING LABORATORIES |
STRUCTURAL MECHANICS / EARTHQUAKE / GEOPHYSICS / SOIL MECHANICS TESTS |
EARTHQUAKE ENGINEERING LABORATORIES |
ACCELEROMETER CALIBRATION |
SHAKE TABLE TESTS |
