SMOTION100 – E6D
SMotion100 is a compact 6DOF motion platform with 100 kg payload, built for signal simulation, testing, and mobile use. Its precise control and light design suit labs and training setups.
OVERVIEW
Description

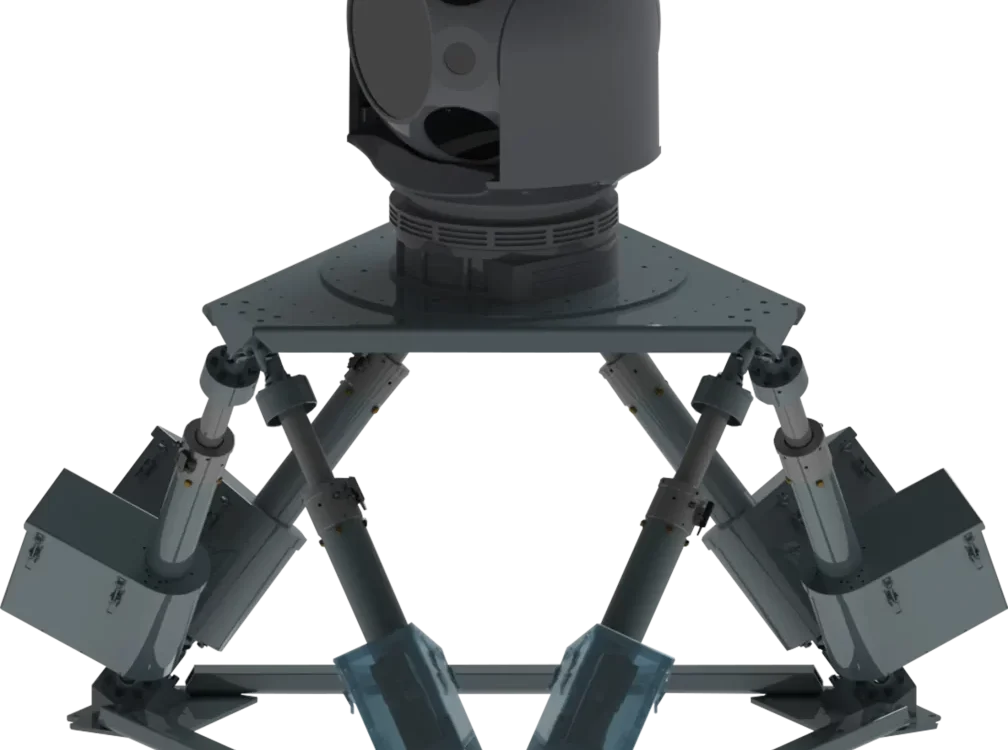

SMotion100 is a state-of-the-art 6DOF (Six Degrees of Freedom) motion platform designed to provide precise movement and control for various high-tech applications. It boasts an impressive payload capacity of 100 kilograms, making it a versatile solution for a range of industries.
- Dimensions: Length 110 cm x Width 100 cm x Height 70 cm
- Payload Capacity: 100 kg
- Actuator Stroke:200 mm
- Moment of Inertia: 45 kg·m² (X, Y, Z axes)
- Power Supply: 380VAC ±10%, 3ph, 50/60Hz
Compatible With
Optic Systems
Antenna Systems
Radar Systems
Camera Tracking Systems
Gimbal Systems
Rotator Systems
Facts
6DOF (degrees of freedom)
6 Electro-Mechanical Actuators
100 kg total payloads
200 mm actuator stroke
Applications
Component validation
Signal replication
Signal generation
Real time simulation table
Field data system testing simulator
