SM3200-600-C01-EP6DO
High-performance 6DOF outdoor motion platform designed for simulation, testing, and validation of defense, aerospace, and industrial systems. Supports up to 3,200 kg payload with advanced real-time control and high dynamic response.
OVERVIEW
Description

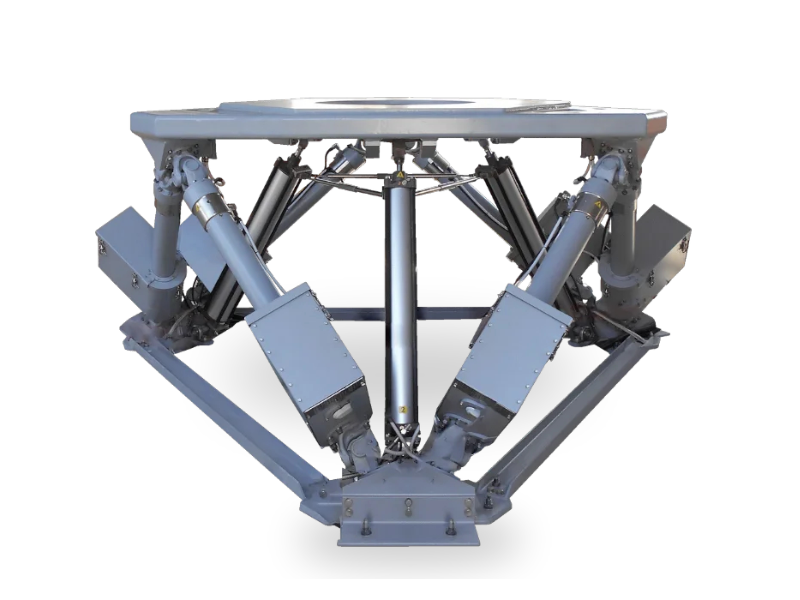

The SM3200-700-C01-EP6DO is a heavy-duty, outdoor-rated 6 Degrees of Freedom (6DOF) motion platform engineered for high-performance simulation and test applications. Designed with a modular electro-mechanical / electro-pneumatic architecture, the system delivers exceptional motion fidelity, dynamic accuracy, and long-term operational stability.
The platform supports gross moving loads up to 3,200 kg with a 700 mm actuator stroke. This capability enables realistic motion cueing for demanding applications. Examples include vehicle simulators, turret and antenna testing, stabilization systems, and flight simulation. High-bandwidth actuators combined with advanced motion cueing algorithms provide precise control across all six axes. These axes are surge, sway, heave, roll, pitch, and yaw.
An IPC-based real-time controller ensures deterministic performance, while integrated safety mechanisms—both mechanical and software-level—protect equipment and operators. The system is fully compatible with external host systems through Ethernet, CAN, and serial communication interfaces. This allows seamless integration into existing test and simulation environments.
Designed for outdoor operation with IP66 protection, the SM3200-700-C01-EP6DO is a robust, reliable, and cost-effective solution. It is suitable for mission-critical simulation and testing programs.
Technical Specifications
-
Degrees of Freedom: 6 (Surge, Sway, Heave, Roll, Pitch, Yaw)
-
Gross Moving Load: Up to 3,200 kg
-
Actuator Stroke: 700 mm
-
Center of Gravity (Max): 1.0 m above top platform
-
Power Supply: 380 VAC ±10%, 3-Phase, 50/60 Hz
-
Motor Type: Servo Motor
-
Ball Screw: Precision Ground Ball Screw
-
Control Interfaces: Ethernet, CAN, Serial Port
-
Protection Class: IP66 (Outdoor Use)
-
Operating Temperature: -20°C to +50°C
Performance & Motion Capabilities
-
Velocity:
-
Surge / Sway: ±0.80 m/s
-
Heave: ±0.70 m/s
-
Roll / Pitch / Yaw: ±50°/s
-
-
Acceleration:
-
Linear: up to ±10 m/s²
-
Angular: up to ±300°/s²
-
-
High-bandwidth frequency response
-
Single-axis and multi-axis motion excursion support
-
Real-time motion cueing with no performance drift
Applications & Software
Applications
-
Vehicle & driving simulators
-
Flight simulators
-
Turret, antenna, and radar testing
-
Electro-optical and camera stabilization testing
-
Weapon system and rotator testing
-
Industrial and defense system validation
Software Features
-
Real-time signal generation and processing
-
Signal replication from real-world sensor data
-
Data logging, visualization, and replay
-
Multi-axis motion testing with automatic scaling
-
Intuitive GUI with deterministic error codes
