S450A Amphibious Inspection Robot
A new generation of amphibious inspection robot S450A
OVERVIEW
Description

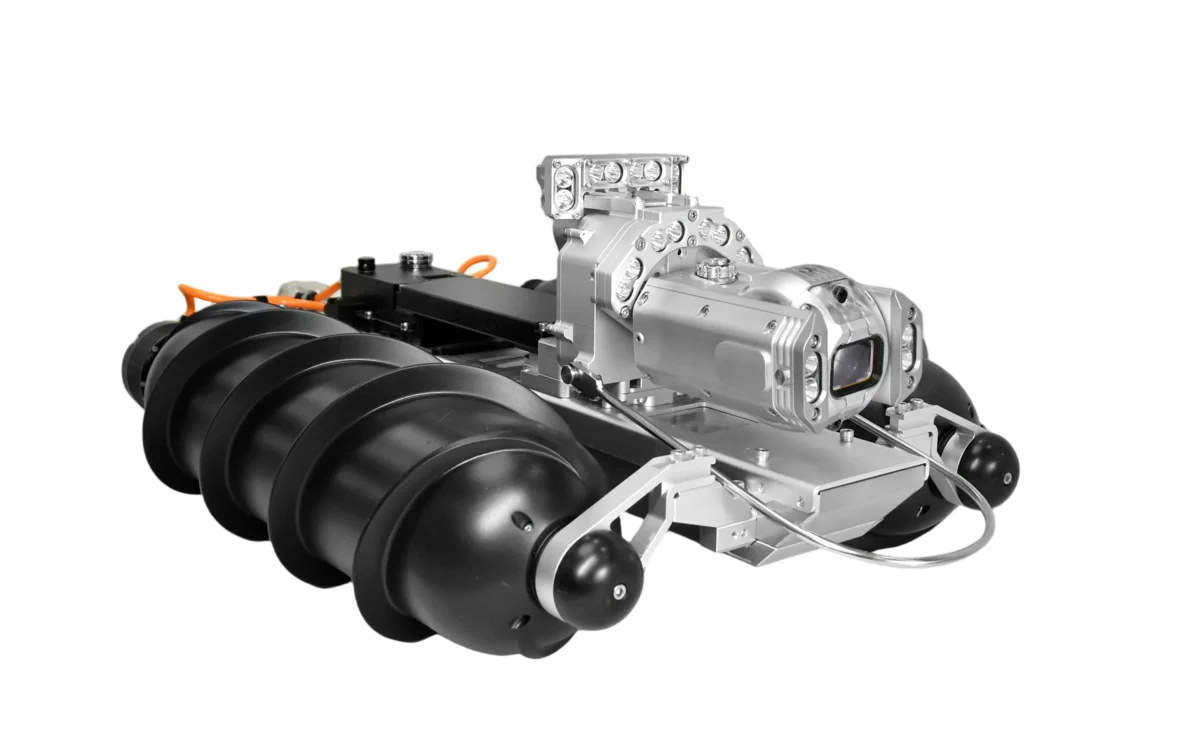

S450A adopts a spiral propulsion structure and is a product that can be used for testing in complex environments such as pipelines, culverts, swamps, and silt. It has a strong ability to pass through silt.
It can also travel on water when the water level is relatively high, which is a powerful supplement to CCTV detection and sonar detection. It consists of a front-mounted high-definition pan-tilt camera, a rear-mounted fixed high-definition camera, a portable robot control cable reel and a robot control terminal. It can detect pipes as small as DN500mm.
- IP68 Protection level
- 210W Digital HD Camera
- DN500 Minimum
- 4H Battery life
Technical Parameters
| Scope of application | DN500mm-6000mm |
|---|---|
| Pull | 14Kg |
| Gradeability | 15° |
| Protection level | IP68 |
| Camera unit | Front and rear 210W dual digital HD cameras, 360° axial and 270° radial rotation |
| Drive | Screw drive |
| Zoom | 10× optical, 16× digital |
| Reeling method | Automatic pay-off and retracting |
| Crawling speed | 0~26m/min |
| Cables | Standard configuration 200 meters, customizable |
| Motor | With high-precision GPS positioning system, real-time positioning |
| Meter | Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit |
| Illumination | High brightness LED Main light 8x2w, auxiliary light 6×3.5W |
| Anti-rollover design | Real-time animation simulation shows the robot’s posture inside the pipeline (front and rear tilt angle, left and right tilt angle) |
| Width measurement | Optional laser width measurement function |
| Defogging | With one-button defog function |

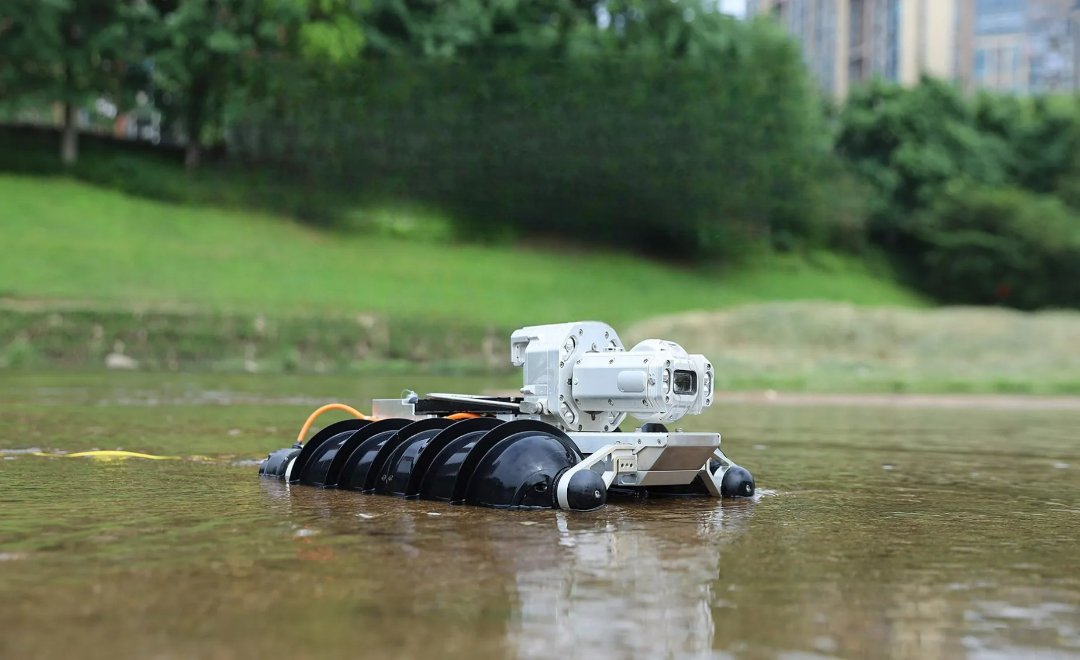

Application scenario cases
