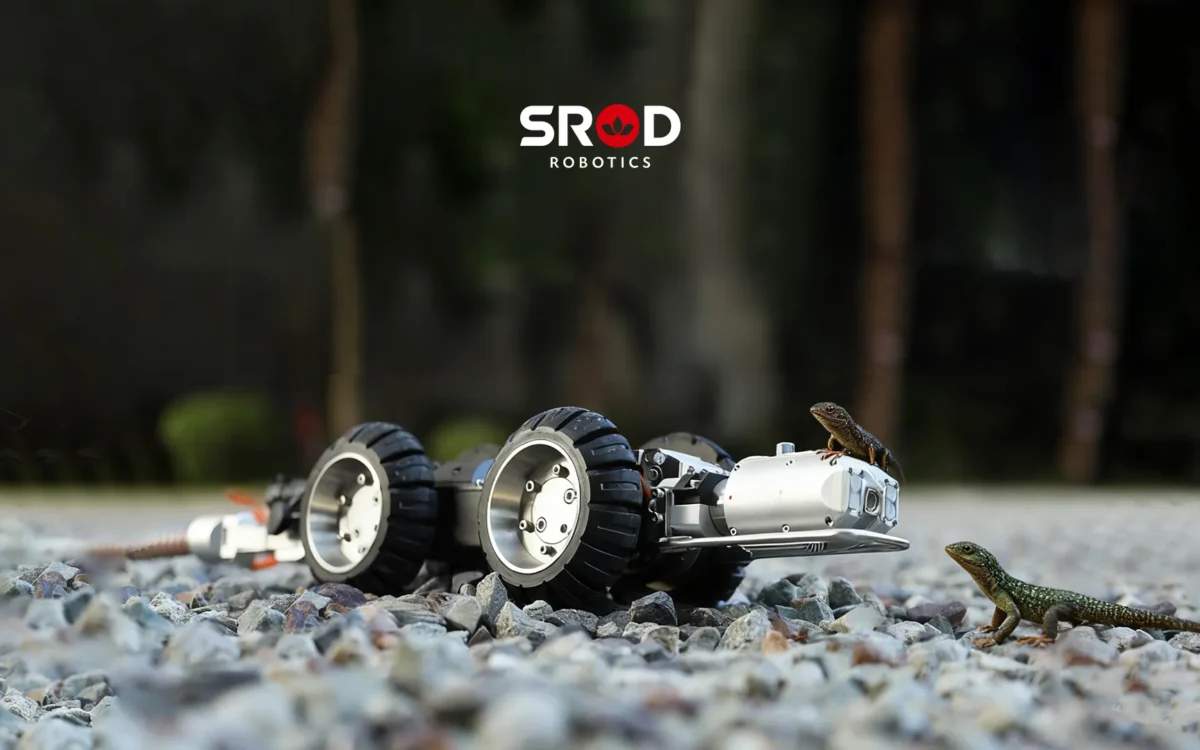

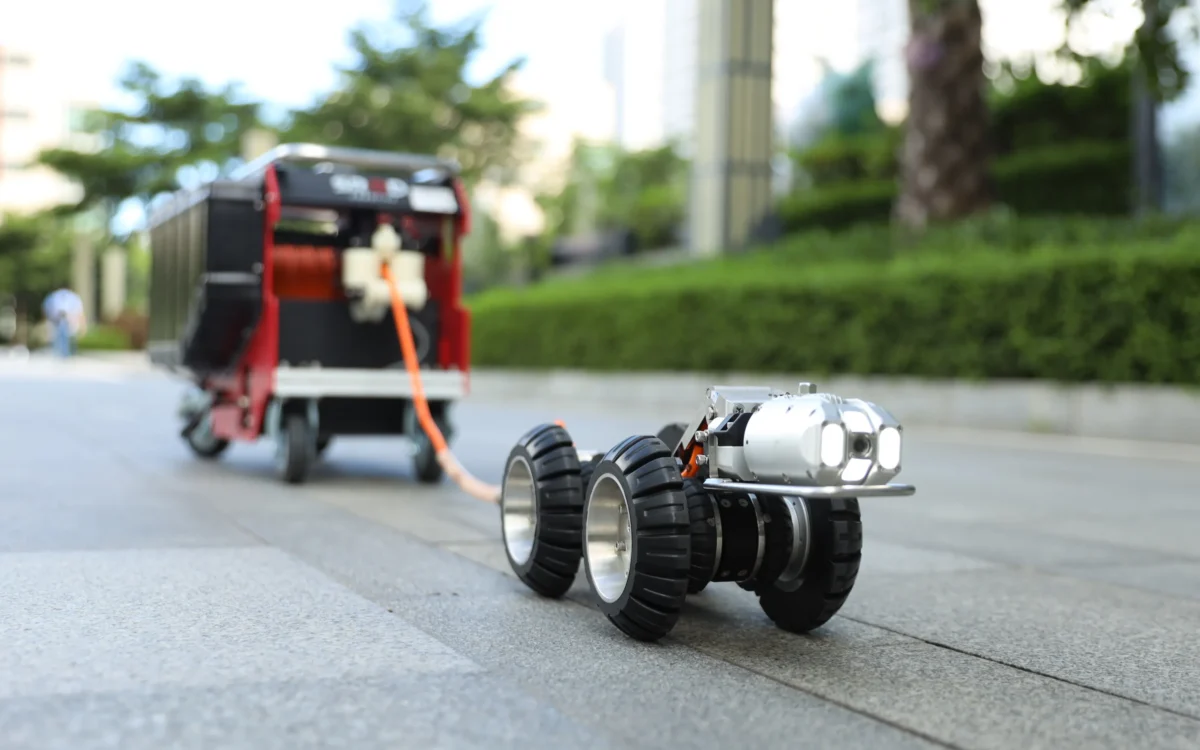

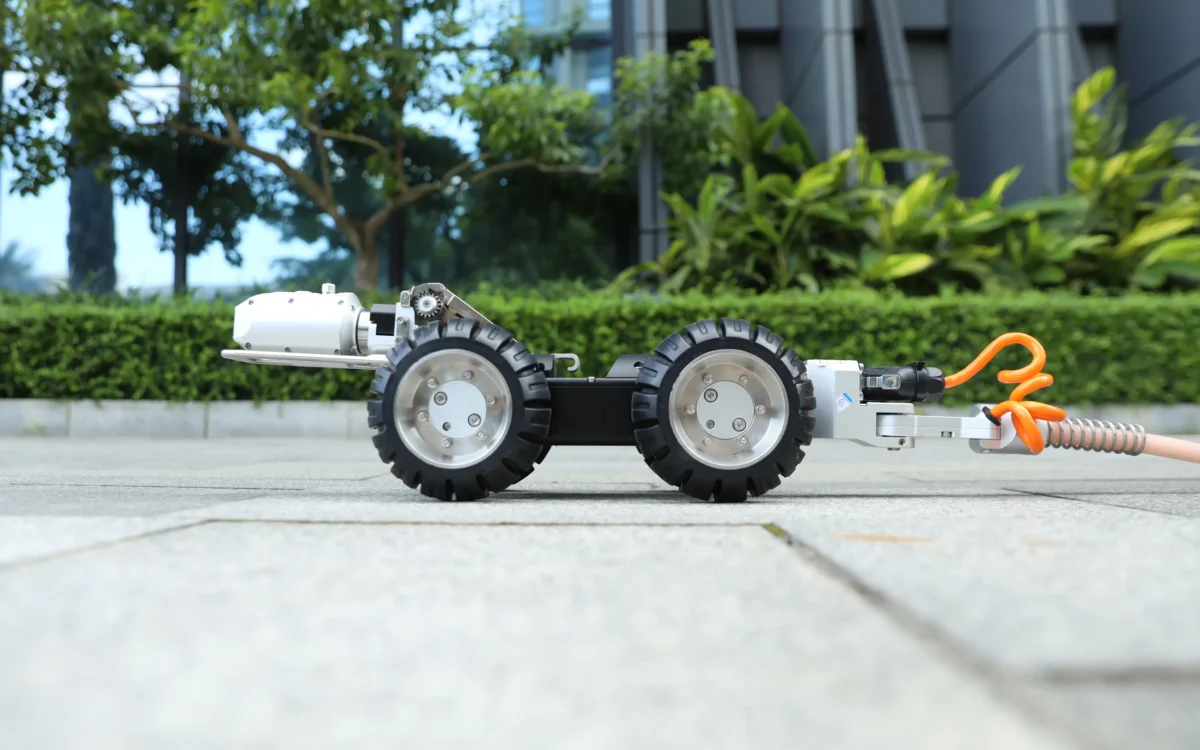

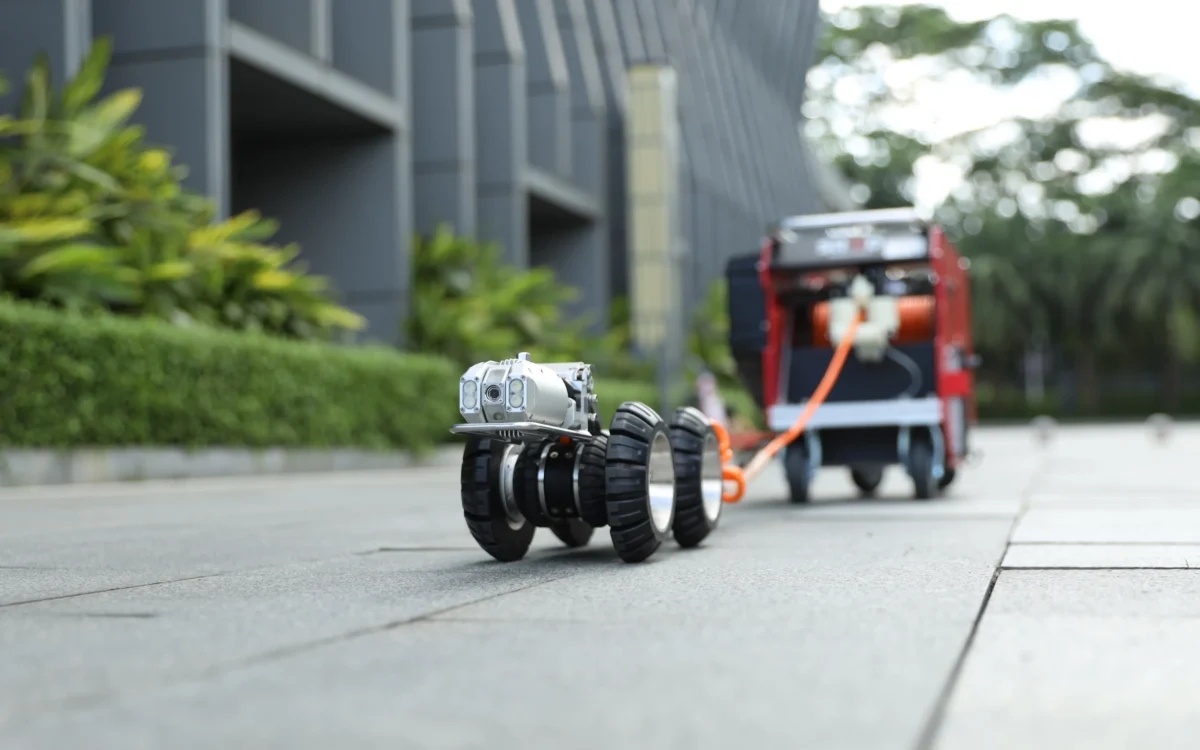

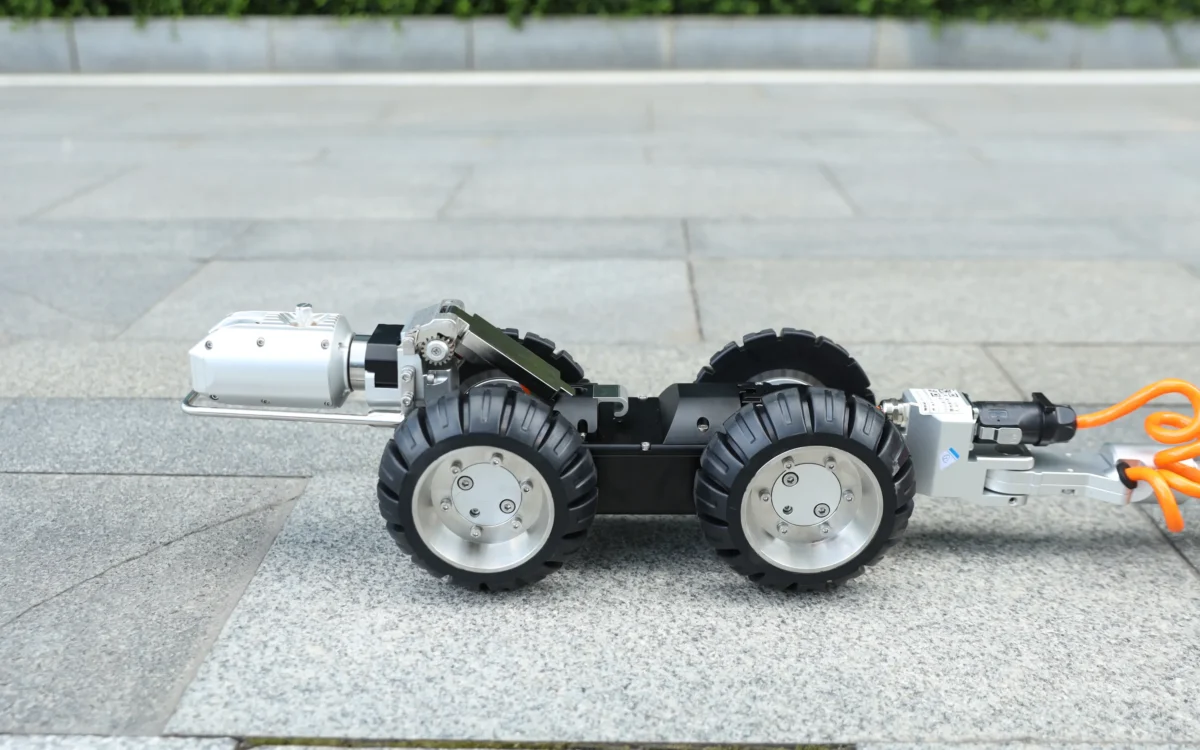

S100C Pipe Inspection Robot
The elf is small and moves freely
OVERVIEW
Description
The S100C pipeline inspection robot can inspect pipes as small as DN100. It’s only 35 cm long and weighs 4.5 kg.
A single person can complete the inspection, offering convenient and efficient operation.
Direct-drive in-wheel motors ensure high efficiency, smooth operation, and reduced power consumption.
-
IP68 – Protection level
-
100–1200mm – Applicable pipe diameter
-
GPS – High-precision positioning
-
8–10 hours – Ultra-long battery life
Technical Parameters
| Scope of application | DN100mm – 1200mm |
|---|---|
| Controller Type | Portable tablet terminal |
| Obstacle surmounting ability | Not less than 30° |
| Protection level | IP68 |
| Camera unit | Front 210W pixel digital high-definition camera, axial 360°, radial ±90° pitch |
| Drive | Four motor drive, powerful power |
| Zoom | 10x optical, 16x digital camera |

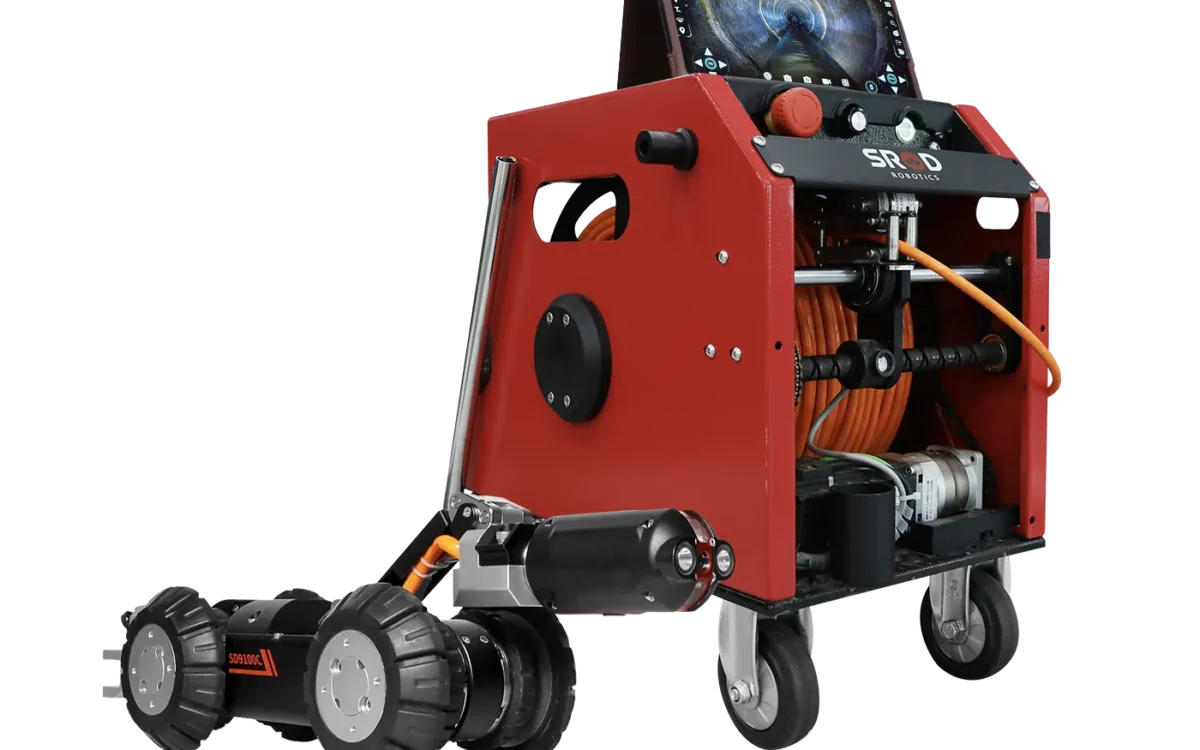

| Reeling method | Automatic or manual wire reeling and unreeling, automatic wire arrangement |
| Lifting frame | Yes, the lens can be easily raised 50mm |
| Cables | Standard 120m |
| Positioning | With high-precision GPS positioning system, real-time positioning |
| Meter counting method | Absolute encoder, real-time distance display |
| Illumination | Main light 2×1W, Auxiliary light 2×1W |
| Anti-rollover design | Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display crawler posture (front/rear tilt, left/right tilt, lifting platform height) |
| Width measurement | Optional laser width measurement function |
| Defogging | Optional one-button defog function |
