QL-UGV – Unmanned Off-Road Platform
Unmanned Off-road Platform
(6-wheel drive autonomous following detection of 12 kinds of gases graphical and numerical integrated remote controller autonomous navigation)
OVERVIEW
Description

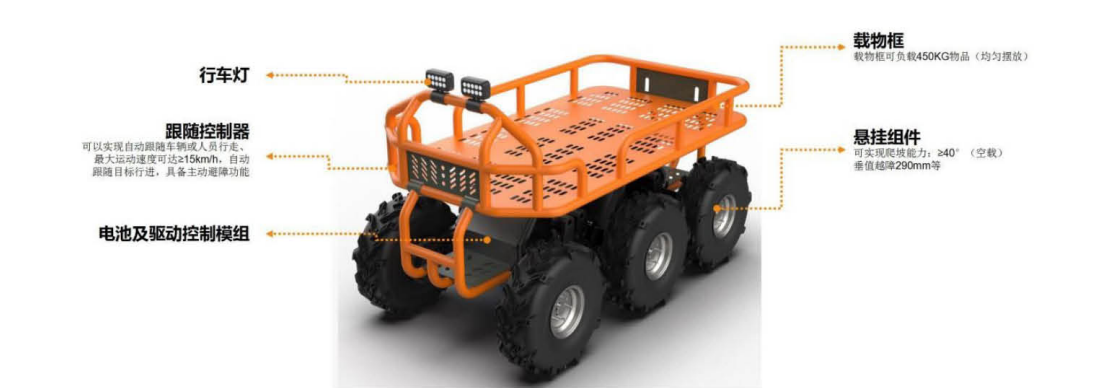

Product Features:
1. Automatic Following
It can automatically follow vehicles or people. The maximum movement speed can reach 13.8 km/h. It can follow the target during its movement and has the function of active obstacle avoidance.
2. Strong Maneuverability
It adopts a six-wheel full-wheel independent suspension drive system, which can adapt to various harsh road conditions such as forests and mountains, as well as special environments like steep slopes and trenches.
3. Transportation and Reconnaissance of Rescue Equipment
Other sensors (such as audio sensors, gas sensors, visual pan-tilts, etc.) can be expanded to conduct reconnaissance and detection of the target area.
4. Function as a Rescue Stretcher
It can serve as a rescue stretcher to transport the injured and the sick to evacuate from the dangerous area.
5. Extra-long Endurance
It can be equipped with a range extender generator to improve its endurance.
6. Networked
It realizes networked transmission of the robot’s information parameters, which are transmitted and managed in the background. It has GPS/Beidou dual-mode positioning.
Product Parameters:
1.Steering Diameter: 2600mm.
2.Weight: 880kg
3.Traction Force: > 8650N
4.Maximum Straight-line Speed: 13.8 km/h, with stepless
speed regulation under remote control
5.Deviation in Straight-line Driving: ≤ 0.30% 6.Braking Distance: ≤ 0.5m
7.Climbing Ability: 40° (unloaded)
8.Obstacle-crossing Height: 290mm
9.Side Tilt Stability Angle: 30 degrees (unloaded)
500mm
10.Wading Depth:
