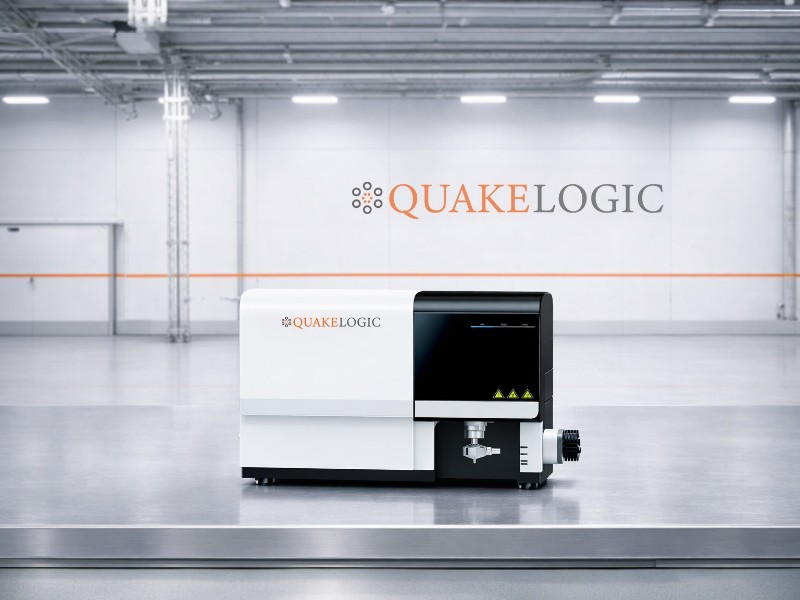

QL-SpectraTrace Elite GC-MS System
The QL-SpectraTrace Elite GC-MS System is a high-performance gas chromatography mass spectrometry system with a single quadrupole MS, Scan + SIM acquisition, and 1.5–1000 amu mass range for trace contaminant detection and advanced chemical analysis.
OVERVIEW
Description
The QL-SpectraTrace Elite GC-MS System is a high-performance solution for chemical analysis. It helps labs identify and measure trace contaminants in fuels and complex samples. It combines a gas chromatograph for liquid sample analysis with a single quadrupole mass spectrometer for accurate and repeatable results.
The system is built for reliable daily use in laboratory environments. It supports Scan and SIM acquisition at the same time. It also offers a mass range of 1.5–1000 amu and electron ionization at 70 eV. In addition, it includes an autosampler with at least 16 positions, a turbo vacuum system, and integrated software for easy control.
Moreover, the QL-SpectraTrace Elite GC-MS System fits many laboratory applications. It supports fuel testing, environmental analysis, forensic work, and general chemical research. As a result, it is a practical choice for labs that need sensitivity, stability, and clear analytical data.
Key applications include:
- Fuel analysis and trace contaminant detection
- Environmental monitoring
- Laboratory research and chemical analysis
- Forensic and material analysis
In addition, the system includes:
- Delivery
- On-site installation
- Validation
- Operator training
- Minimum one-year warranty
- Technical support
- Spare parts availability
Technical Specifications
- GC Configuration: Capillary column compatible, EPC controlled
- Injector: Split/Splitless
- Oven: ≥430°C max, ≥35 °C/min ramp
- MS Type: Single Quadrupole
- Ionization: Electron Ionization (70 eV)
- Mass Range: 1.5–1000 amu
- Scan Mode: Scan + SIM simultaneous
- Sensitivity: ≤1 pg (S/N 30:1)
- Vacuum System: Turbo + mechanical backing pump
- Autosampler: ≥16 positions
- Software: English interface, NIST 2023 library
- Electrical: 120V, single-phase, 60 Hz
Applications & Support
Applications:
- Fuel analysis and trace contaminant detection
- Environmental monitoring
- Laboratory research and chemical analysis
- Forensic and material analysis
Support Includes:
- Delivery
- On-site installation
- Validation
- Operator training
- Minimum one-year warranty
- Technical support
- Spare parts availability
