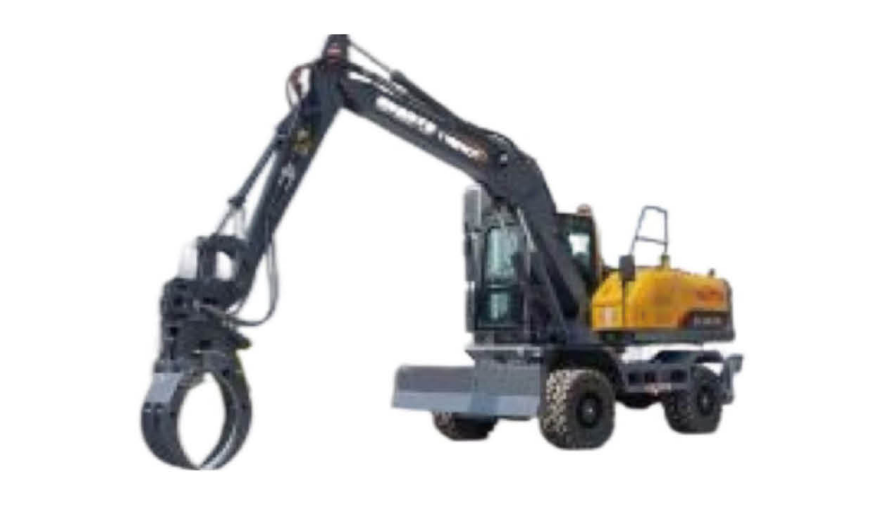

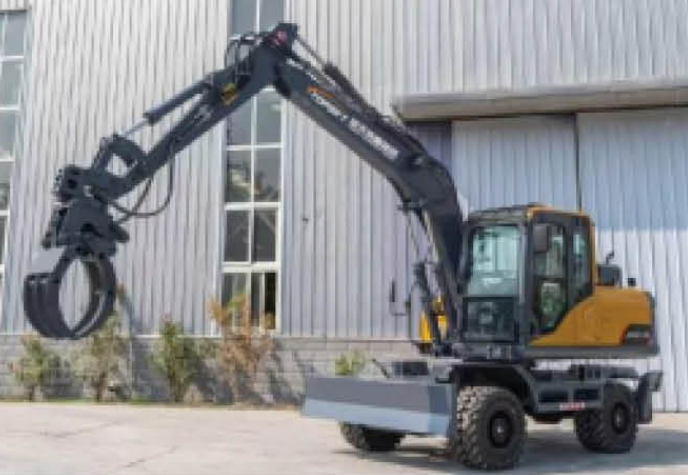

QL-RESCUE-LITE – Multifunctional Rescue Vehicle
Lifting arm, demolition tools, emergency response use.
OVERVIEW
Description
Product Features:
The vehicle adopts a 4×4 all-wheel drive off-road chassis, with strong water-crossing capabilities and greater maneuverability and flexibility. It is equipped with a dedicated working boom. The front of the vehicle has a quick-loading and unloading type shovel, and the rear has devices such as a traction winch. The cab top is equipped with a lifting and lighting device. The entire vehicle has functions such as lifting, digging, demolition, grasping, power generation, lighting, obstacle removal, and towing, enabling emergency rescue operations at disaster sites.
Product Parameters:
- Water depth: 601mm
- Rated power: 62.5kW
- Overall dimensions: 6890* 2320* 2880mm
- Lifting arm length: 3900mm
- Travel speed: 35 kilometers/hour
- Working pressure: 24MPa
- Working weight: 10T ± 0.5%
- Rotation speed: 10.5r/min
- Steep slope capacity: 35°
- Maximum lifting weight: 3T
- Bucket digging force: 40kN
