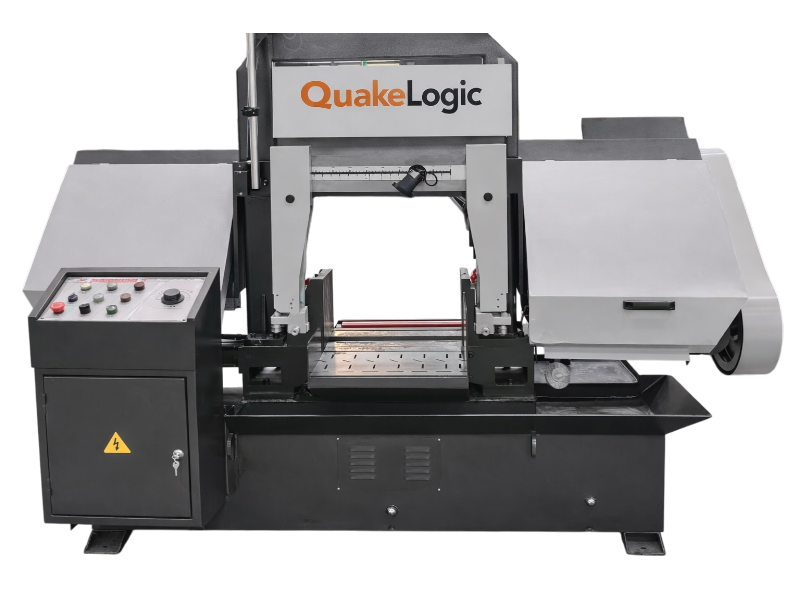

QL-ProSaw Industrial Band Saw
Heavy-duty industrial band saw with Ø320 mm cutting capacity, hydraulic blade control, bundle cutting fixture, and integrated chip conveyor for efficient material preparation.
OVERVIEW
Description
QL-ProSaw Industrial Band Saw – Ø320 mm Heavy-Duty Cutting System
The QL-ProSaw Industrial Band Saw delivers precise and stable cutting for industrial material preparation. This makes it an excellent example of an Industrial Band Saw Machine for shops requiring efficient and high-performance material processing. It supports both round and square stock. As a result, it prepares raw materials quickly before CNC turning or milling.
Large Cutting Capacity
The machine offers:
-
Round cutting capacity: Ø320 mm
-
Square cutting capacity: Equivalent range
Therefore, it handles medium and large bar stock with ease.
Hydraulic Blade Feed Control
The QL-ProSaw uses a hydraulic blade feed and pressure control system. Because of this, operators achieve consistent cutting force and smooth blade movement.
In addition, controlled pressure reduces burr formation and improves cut quality. Consequently, less secondary finishing is required.
Built for High-Volume Production
The machine includes a nesting fixture for bundle cutting. As a result, operators can cut multiple bars at the same time.
Moreover, the system includes 2-meter infeed and outfeed roller tables. Therefore, material handling becomes faster and safer.
This setup improves workflow in busy production environments.
Powerful and Reliable Motor System
-
Main Motor: 5 HP (3.7 kW)
-
Hydraulic Motor: 1 HP (0.75 kW)
Together, these motors provide stable torque and smooth cutting performance.
Integrated Productivity Features
The QL-ProSaw includes:
-
Automatic chip conveyor
-
Blade pressure regulator
-
Cutting fluid system
-
Nesting fixture for bundle cutting
-
2-meter infeed roller table
-
2-meter outfeed roller table
-
Required saw blades (steel & non-ferrous materials)
The machine operates on 220V, 3-phase, 60Hz electrical configuration.
Because of its strong frame, hydraulic control, and bundle cutting capability, the QL-ProSaw suits metal fabrication shops, industrial manufacturers, and high-volume CNC production facilities.
Technical Specifications
Cutting Capacity:
• Round: Ø320 mm
• Square: Equivalent capacity
Main Motor: 5 HP (3.7 kW)
Hydraulic Motor: 1 HP (0.75 kW)
Electrical: 220V / 3-Phase / 60Hz
Standard Equipment
-
Automatic chip conveyor
-
Hydraulic blade feed control
-
Blade pressure regulator
-
Cutting fluid system
-
Nesting fixture for bundle cutting
-
2m infeed roller table
-
2m outfeed roller table
-
Saw blades for steel & non-ferrous materials
Applications
-
Raw material preparation
-
Bar stock cutting
-
Bundle cutting operations
-
CNC pre-machining preparation
-
Metal fabrication workshops
-
Industrial production lines
