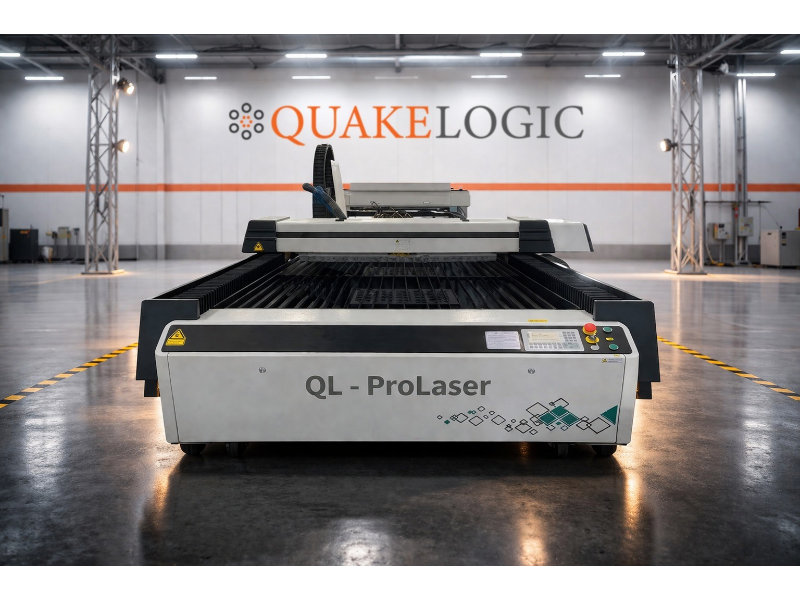

QL-ProLaser
QL-ProLaser is a large-format 250W industrial CO₂ laser cutting and engraving machine with a 1300 × 2500 mm working area, high precision motion control, and reliable performance for non-metallic materials, prototyping, fabrication, and industrial production.
OVERVIEW
Description
The QL-ProLaser is an industrial CO2 laser cutting and engraving machine for non-metal materials. It supports fabrication, prototyping, laboratory work, and production use. The system combines a 250W CO2 laser source with a 1300 × 2500 mm working area for precise and repeatable results.
The machine helps users cut and engrave with speed, stability, and accuracy. It supports formats such as BMP, PLT, DST, DXF, and AI. It also works with LightBurn Pro compatible software, which makes job control simple and efficient.
The QL-ProLaser includes a knife/honeycomb worktable, stepper motor drive, and an industrial water chiller. These components help the machine run smoothly during demanding jobs. The system also offers ±0.03 mm positioning accuracy and engraving speeds of up to 600 mm/s.
Key benefits include:
- Large-format cutting and engraving area
- High precision motion system
- Smooth cutting edges with clean results
- Stable operation for industrial use
- USB data transfer and internal memory
- Exhaust, air assist, and cooling support systems
The QL-ProLaser is a strong solution for workshops, labs, and industrial users who need reliable CO2 laser cutting and engraving performance.
Technical Specifications
- Laser Type: Industrial CO₂ laser source, ~10.6 µm wavelength
- Laser Power: 250W
- Working Area: 1300 × 2500 mm
- Table Type: Knife / Honeycomb worktable
- Laser Tube Lifetime: 8,000–10,000 hours
- Positioning Accuracy: ±0.03 mm
- Engraving Speed: 0–600 mm/s
- Supported Formats: BMP, PLT, DST, DXF, AI
- Software: LightBurn Pro compatible
- Cooling System: CW-6000 equivalent industrial water chiller
- Power Supply: 220V ±10% 50Hz or 110V ±10% 60Hz
- Operating Temperature: 0–45°C
- Operating Humidity: 5–95%
Key Features
- Large-format cutting and engraving area
- High precision linear guide system
- Smooth cutting edge with burr-free performance
- Stable mechanical design for high speed and accuracy
- Laminated safety glass
- Exhausting, absorbing, and assistant blowing systems
- USB data transmission with large internal memory
- Aluminum strip platform and open working table design
- Durable laser path system with mirror lens for consistent output
- Designed for reliable long-term industrial operation
