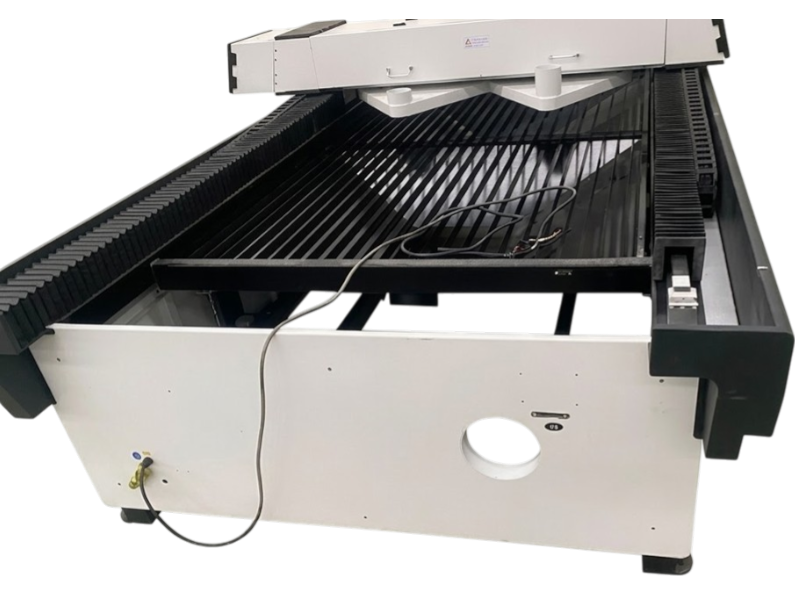

QL-ProLaser Industrial CO₂ Laser Cutting Machine
QL-ProLaser CO₂ Laser Cutter is a large-format laser cutting and engraving system with a 1300×2500 mm working area. It delivers fast, accurate processing for acrylic, wood, plastics, and other non-metal materials. Ideal for fabrication, prototyping, and industrial production.
OVERVIEW
Description
QL-ProLaser Industrial CO₂ Laser Cutting Machine is designed for precise cutting and engraving of non-metal materials. For those seeking an industrial CO2 laser cutting machine, it works well in fabrication shops, laboratories, and prototyping centers.
This laser system offers a large 1300 × 2500 mm working area. Users can process large sheets and production batches with ease. The machine uses a sealed CO₂ laser tube with power options from 75W to 150W. The QL-ProLaser stands out as an industrial CO2 laser cutting machine that delivers stable performance and reliable cutting quality.
The QL-ProLaser supports popular design formats such as DXF, AI, BMP, PLT, and DST. It also works with common design software including AutoCAD, CorelDraw, and Photoshop. As an industrial CO2 laser cutting machine, this makes file preparation simple for designers and engineers.
The machine provides fast and accurate processing. Engraving speeds reach 600 mm/s, while cutting speeds reach 200 mm/s. The precision guide rail system ensures smooth movement and consistent results. Moreover, the industrial CO2 laser cutting machine offers high-speed and high-quality output for demanding projects.
The integrated air assist, cooling system, and exhaust system improve safety and cutting quality. These features help remove smoke, protect optics, and keep the machine running efficiently.
Main Features
-
High-precision linear guide rails ensure accurate processing and consistent cutting quality.
-
Advanced fine-cutting technology delivers smooth edges with minimal burr formation.
-
Laminated safety glass provides improved operator safety and visibility.
-
Integrated exhaust, suction, and air-assist systems remove smoke and debris during cutting.
-
Durable aluminum strip worktable supports a wide range of materials.
-
USB interface with large internal memory allows fast and reliable data transfer.
-
High-quality CO₂ glass laser tube ensures stable laser output and long operational life.
Advantages
-
Open-type working table enables large-format cutting and engraving applications
-
Protective dust cover helps keep linear guide rails clean and extends machine lifespan
-
One-piece milled guide rail structure ensures long-term mechanical stability
-
Rigid mechanical design provides high speed, high precision, and excellent stability
-
Honeycomb working table combined with durable focusing optics improves cutting quality
Technical Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Area (X × Y) | 1300 × 2500 mm |
| Worktable Type | Knife-type / Honeycomb worktable |
| Laser Power Options | 75W / 90W / 100W / 130W / 150W |
| Laser Type | Sealed CO₂ laser tube |
| Laser Tube Lifetime | 8,000 – 10,000 hours |
| Transmission System | Fulong belt drive |
| Driving System | Stepper motors with precision drivers |
| Cooling System | Water cooling |
| Engraving Speed | 0 – 600 mm/s |
| Cutting Speed | 0 – 200 mm/s |
| Minimum Character Size | English letters: 1 × 1 mm |
| Positioning Accuracy | ±0.03 mm |
| Supported Graphic Formats | BMP, PLT, DST, DXF, AI |
| Compatible Software | CorelDraw, AutoCAD, Photoshop |
| Accessories Included | 550W exhaust fan, air pump |
| Power Supply | 220V ±10% 50Hz or 110V ±10% 60Hz |
| Total Power Consumption | < 1,000 W |
| Operating Temperature | 0 – 45°C |
| Operating Humidity | 5 – 95% |
| Packaging | Heavy-duty plywood crate |
| Package Dimensions / Weight | 3660 × 2250 × 1250 mm / approx. 1,000 kg |
Key Features
Key Features
-
Large 1300 × 2500 mm working area
-
High-power CO₂ laser tube (75W–150W)
-
Precision linear guide rail system
-
Engraving speed up to 600 mm/s
-
Cutting speed up to 200 mm/s
-
High positioning accuracy ±0.03 mm
-
Compatible with AutoCAD, CorelDraw, Photoshop
-
Supports DXF, AI, BMP, PLT, DST formats
-
USB data transfer and internal memory
-
Integrated air assist and exhaust system
Applications
The QL-ProLaser is suitable for a wide range of laser fabrication applications including:
-
Industrial fabrication and manufacturing
-
Educational laboratories and research facilities
-
Rapid prototyping and product development
-
Acrylic and plastic cutting
-
Wood engraving and decorative design
-
Sign making and advertising fabrication
-
Leather and textile processing
-
Packaging and model making
