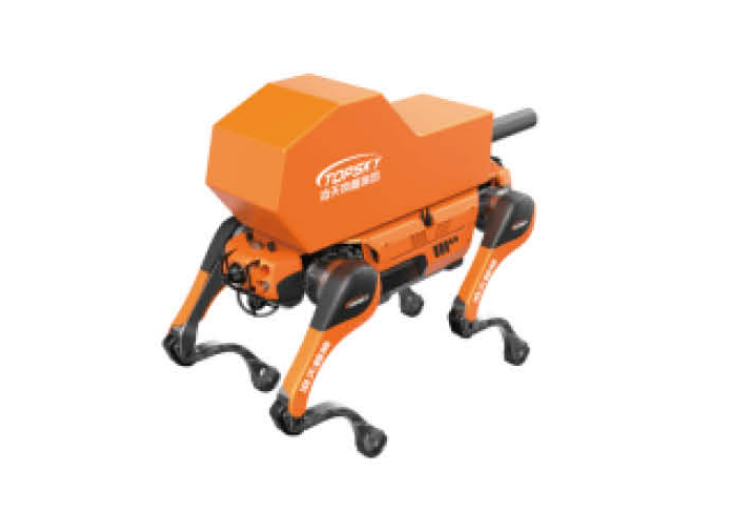

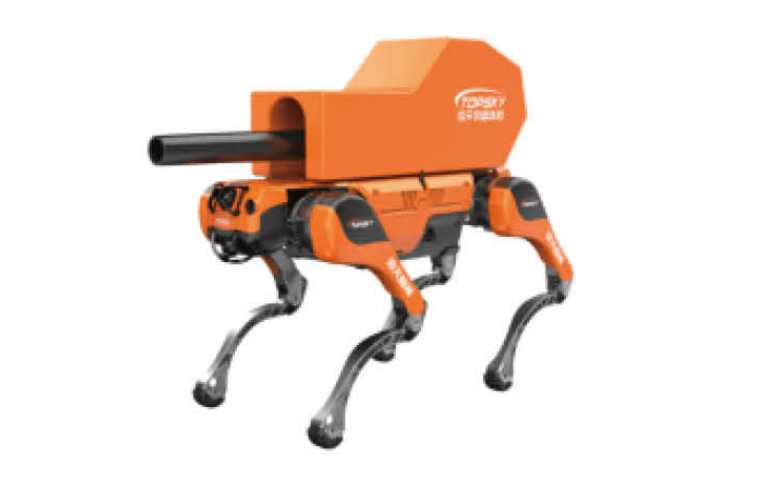

QL-MY15000Q – High-Speed Fire Airflow Robot Dog
High speed fan airflow fire extinguishing quadruped robot dog
OVERVIEW
Description
Product features:
1. Strong flexibility and adaptability, capable of effectively executing tasks in various environments;
2. ▲ Strong load capacity, high protection level: protection level IP67
3. ▲ Equipped with various modules, with expansion interfaces, supporting secondary development;
4. ▲ Configure a handheld integrated remote control terminal: integrating robot dog control and fan control;
5. Power supply form: lithium battery, quick plug structure that can be replaced at any time;
6. ▲ Lidar: 4 solid-state lidars, detection distance: ≥ 40m, capable of terrain perception such as stairs
Product Parameters:
1. Protection Level: IP67
2. Chassis Standing Dimensions: 1098mm×450mm×845mm
3. Whole Machine Weight: 55Kg
4. Endurance Time: 4-6 hours under comprehensive operation
5. Standing Load: Maximum 120Kg
6. Continuous Walking Load: >40Kg
7. ▲ Stair Walking Ability: Maximum step height 20-25cm; capable of climbing industrial hollow metal stairs.
8. ▲ Climbing Ability: Forward climbing up and down 40cm steps.
9. ▲ Slope Walking Ability: ±30°。
10. ▲ Running Speed: >5m/s.
