QL-Mini-Laser-Displacement-Sensor — Compact Class-1 Laser Distance Measurement with TTL & Modbus RS485 Interfaces (Software is included)
QL-Mini-Laser-Displacement-Sensor is a compact Class 1 laser distance sensor designed for precise, real-time displacement and ranging measurements. Featuring TTL and RS485 (Modbus) communication, high update rates up to 100 Hz, and a rugged waterproof housing, it is ideal for industrial automation, security systems, robotics, and embedded applications.
$695,00
OVERVIEW
Description
QL-Mini-Laser-Displacement-Sensor is a high-performance laser ranging solution. It is engineered for accurate, non-contact distance measurement in demanding environments. Using a Class 1 laser, it is completely safe for human exposure and environmentally friendly. Thus, it is suitable for both indoor and controlled outdoor use.
With a measurement range of 4 cm to 4 meters (about 1.57 in to 157.5 in), this sensor delivers reliable millimeter-level data through TTL serial (ASCII) or RS485 Modbus communication. The high-speed update capability (up to 100 Hz) allows seamless integration into real-time control systems. Furthermore, it integrates with motion platforms. It also integrates with monitoring applications.
The sensor features multiple measurement modes, including high precision, high speed, and long-distance modes. This allows users to optimize performance based on accuracy, response time, or operating conditions. An integrated alarm output enables threshold-based triggering for safety and automation use cases.

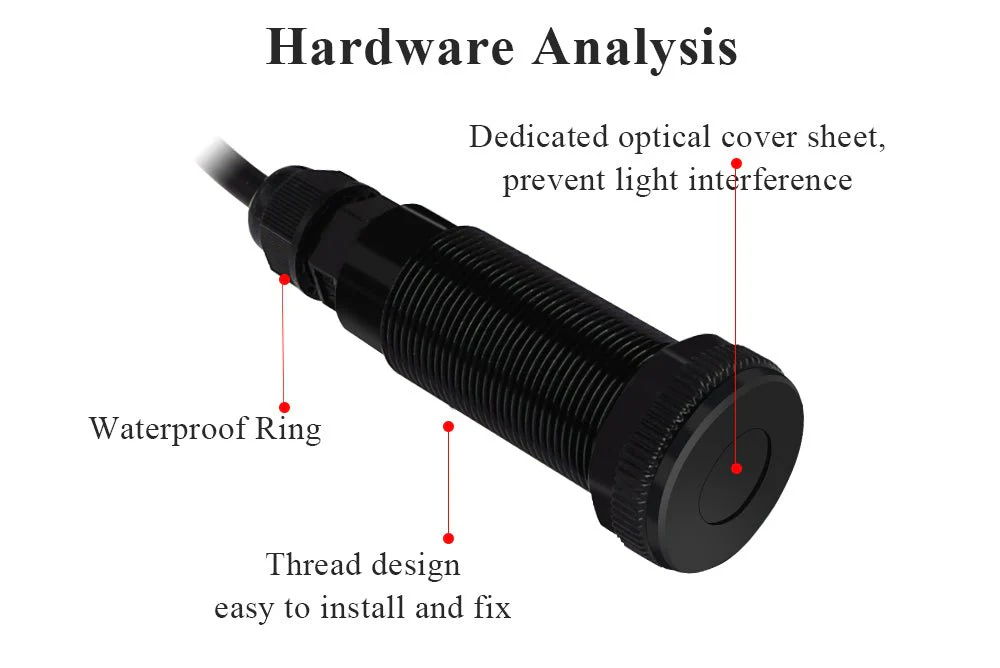

Its compact cylindrical housing with threaded mounting, waterproof sealing, and anti-vibration design ensures easy installation. As a result, it provides long-term stability in industrial environments.
Its user-friendly software is included.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 3 in |
Key Features
-
Class 1 laser (eye-safe, no harm to humans or environment)
-
Measurement range: 4 cm – 400 cm
-
Accuracy up to ±20 mm
-
Update rate: 0.1 – 100 Hz
-

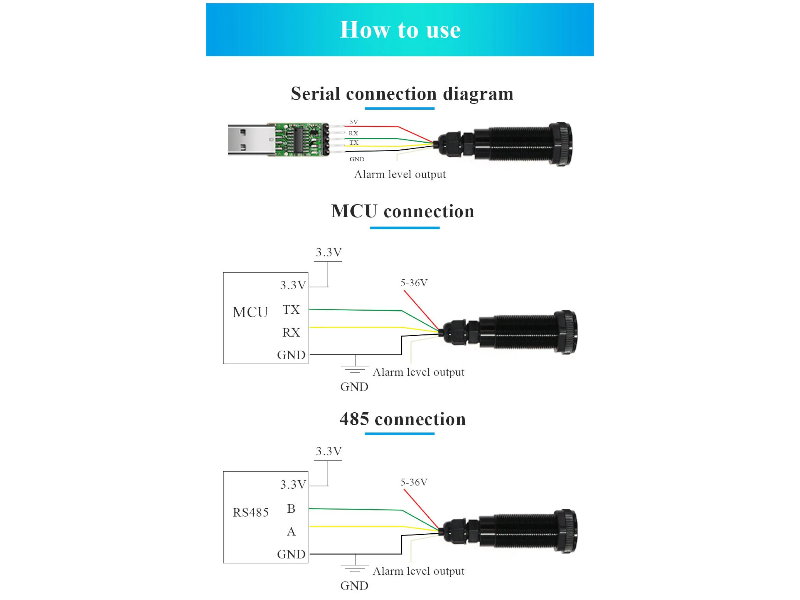

TTL (ASCII output) and RS485 (Modbus RTU) communication
-
Multiple measurement modes: Default, High Precision, High Speed, Long Distance
-
Alarm output with configurable threshold
-
Waterproof and anti-vibration housing
-
Compact size for embedded and space-limited installations

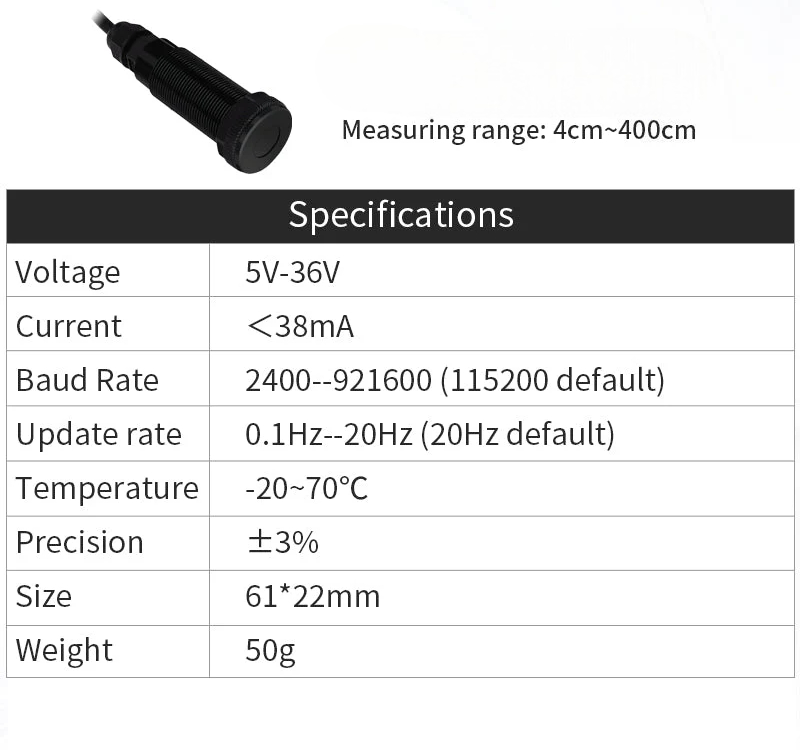

Technical Specifications
-
Supply Voltage: 5–36 V DC
-
Current Consumption: < 38 mA
-
Communication: TTL Serial, RS485 (Modbus RTU)
-
Baud Rate: 2400 – 921600 (115200 default)
-
Operating Temperature: -20°C to +70°C
-
Measurement Range: 4 – 400 cm
-
Accuracy: ±20 mm (mode dependent)
-
Update Rate: Up to 100 Hz
-
Laser Class: Class 1
-
Dimensions: 61 mm × 22 mm
-
Weight: Approx. 50 g
Applications
-
Industrial automation and positioning systems
-
Robotics and motion control
-
Security gates and access control systems
-
Distance monitoring and object detection
-
Embedded systems and MCU-based projects
-
Automation alarms and threshold detection
-
Research, testing, and prototyping
