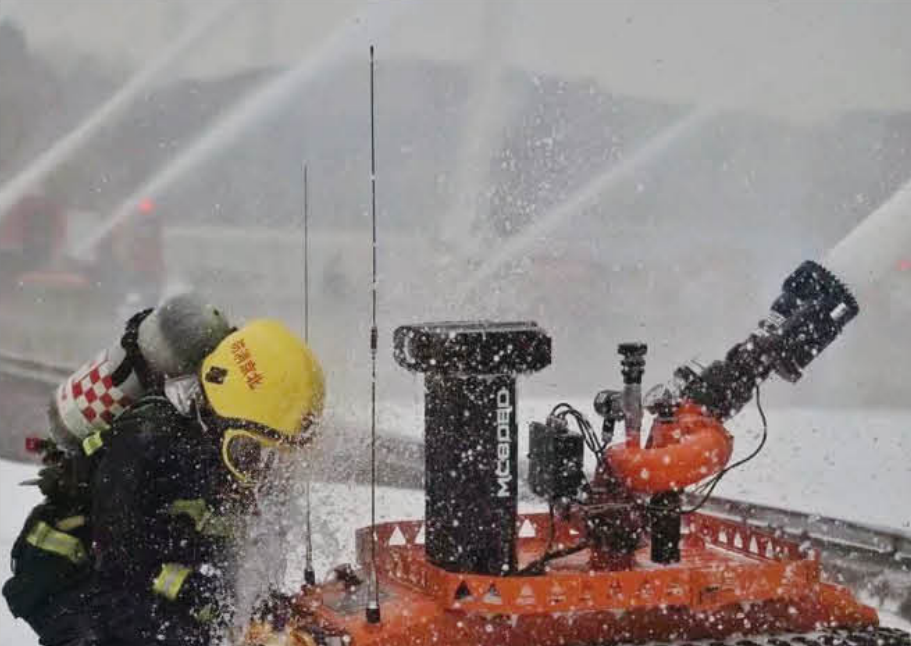

QL-MC80BD – Explosion-Proof Firefighting Robot
Explosion-proof fire-fighting and reconnaissance robot
凌天装备集团 (360° lifting integrated pan-tilt + voice oice control control ++ following following function functi +5G control + water cannon autonomous flame tracking + autonomous navigation)
OVERVIEW
Description
Product Features:
1. High explosion-p explosion-proof grade
The overall size is Exd ibllB+H2T 6GB.
The explosion-proof grade of the battery is Exd[ib]II CT6Gb.
2. High protection level
The overall protection grade is IP67 and the chassis protection grade is IP68 3.
3. There are many types of toxic and harmful gas detectior
Reach 14 kinds of gases and 2 kinds of environmental parameters.
4. ★ Fast traveling speed
It reaches 6.51 kilometers per hour, which is three times higher than the industry standard.
5. Multi-functional uses
It has the functions of fire extinguishing, reconnaissance, transportation, especially the transportation of rescue equipment and materials such as water hoses (such as: water hoses, gas masks, positive pressure air breathing apparatus, fireproof suits, demolition tools and other equipment). fireproof suits, demolition tools and other equipment).
6. ★ Connect to the robot networked cloud platform
The real-time status information of the robot, such as its position, battery level, audio, video, and gas g environment detection information, can be transmitted to the cloud via 4G/5G networks, and can be accessed on the PC and mobile terminals of the back-end.
7. ★ High-integration Pan-tilt:
A three-in-one pan-tilt platform that can be raised, lowered, 360° or tilted.
Product Parameters:
- Dimensions: ≤ length 1305mm × Width 80mm × Height 1065mm
- ★ Weight: ≤ 490kg
- ★ Traction force: > 3800N
- ★ Dragging distance: > 80m (Dragging two DN80 full water hoses)
- Water/foam flow rate: > 81.4L/s water, ≥ 81.6L/s foam
- ★ Maximum linear speed: > 1.81m/s, with remote control and stepless speed change
- Climbing ability: > 83.9% (or 40°)
- Wading depth: > 500mm
