QL-GolfSim Professional Indoor Golf Simulation System

Professional indoor golf simulator with 6000 FPS dual cameras, AI motion tracking, and 4K laser projection, delivering tour-grade accuracy, immersive visuals, and a complete training and entertainment platform for commercial and educational use.

OVERVIEW

Description

The QuakeLogic QL-GolfSim Professional Indoor Golf Simulation System represents the latest generation of tour-grade indoor golf technology. It is engineered for commercial facilities, performance centers, educational institutions, and premium residential installations.

Powered by dual 6000 FPS high-speed stereo cameras and advanced AI-based 3D trajectory reconstruction, QL-GolfSim delivers exceptional measurement accuracy for ball speed, club head speed, launch angle, and spin. Moreover, the system achieves ≥99% detection accuracy with real-time feedback. There is also no perceptible latency. This enables true performance-level analysis and coaching.

The immersive experience is completed by a 4K UHD laser projection system with 6000 lumens brightness, a 3,000,000:1 contrast ratio, and a 120 Hz refresh rate. These features produce ultra-smooth visuals on a premium impact-resistant screen with full safety protection. Furthermore, a powerful computing platform features an Intel® Core™ i5 processor and NVIDIA® RTX graphics. This ensures stable operation and realistic rendering under continuous commercial use.

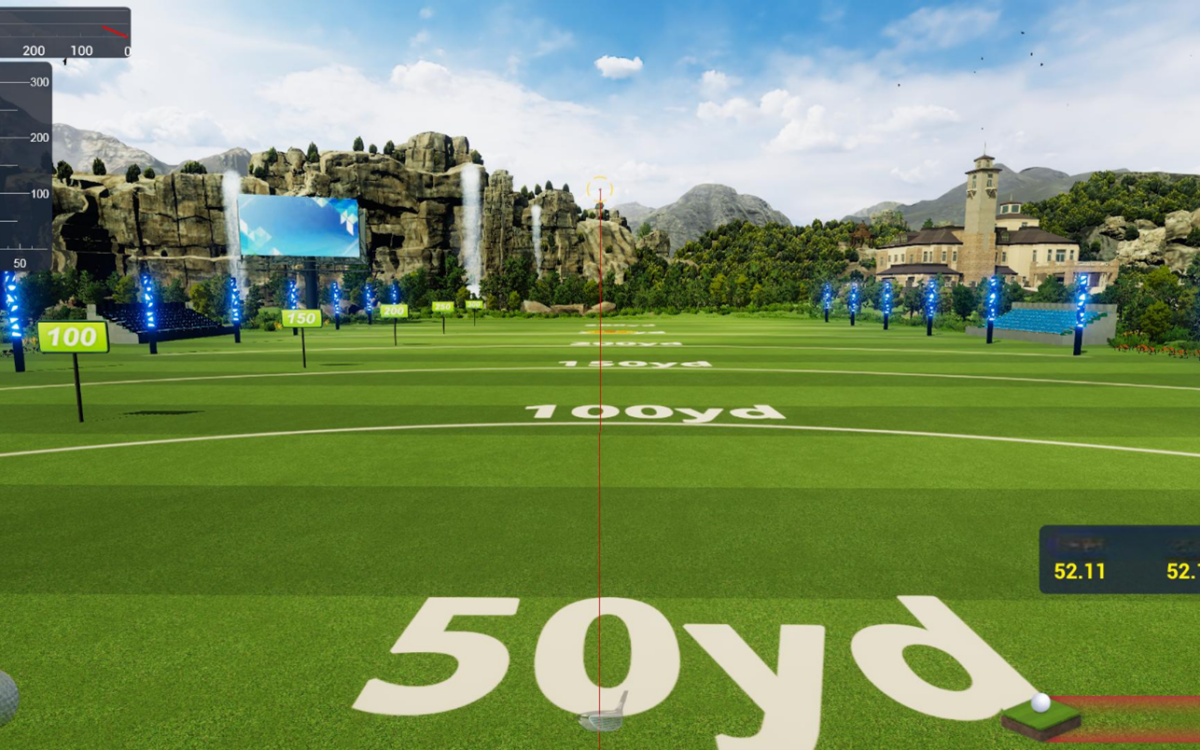

QL-GolfSim includes a comprehensive software ecosystem with 170+ high-definition golf courses, AI coaching tools, swing replay, performance analytics, multiplayer modes, and cloud-based features. It is designed as a complete turnkey solution. Additionally, the system includes professional installation, calibration, training, global technical support, and lifetime software updates.

Key Features

  • Dual high-speed 6000 FPS stereo vision cameras

  • AI-based 3D trajectory and swing reconstruction

  • 99% overall detection accuracy

  • 4K UHD laser projection, 6000 lumens, 120 Hz

  • ±0.5 mph ball & club speed accuracy

  • ±1° launch angle accuracy, ±20 rpm spin accuracy

  • Real-time feedback with <100 ms latency

  • 170+ HD golf courses with real terrain modeling

  • AI coaching, swing replay, and performance analytics

  • Multiplayer, tournaments, rankings, and cloud backup

  • Modular design for commercial and institutional spaces

Technical Specifications

Sensing & Measurement

  • Sensor Type: Dual high-speed binocular cameras

  • Frame Rate: 6000 FPS

  • Detection Principle: 3D stereoscopic tracking with AI reconstruction

  • Ball Speed Range: 1.5 – 215 mph

  • Club Speed Range: 1.3 – 165 mph

Projection & Display

  • Display Technology: 4K UHD laser projection

  • Brightness: 6000 lumens

  • Contrast Ratio: 3,000,000:1

  • Refresh Rate: 120 Hz

  • Image Size: 165–180 inches diagonal

Computing Platform

  • CPU: Intel® Core™ i5-12400 (6 cores)

  • GPU: NVIDIA® RTX 2060, 8 GB

  • RAM: 16 GB DDR4

  • Storage: 512 GB SSD

  • OS: Windows 11 Professional

Installation, Support & Compliance

Installation Requirements

  • Minimum Room Size: 6.5 × 3.8 × 2.8 m

  • Recommended Room Size: 8.0 × 4.8 × 3.1 m

  • System Weight: Approx. 300 kg

  • Operating Environment: 10–35°C, <85% humidity

Included Services

  • Pre-assembly and factory calibration

  • Professional on-site installation

  • Performance validation and system testing

  • Minimum 4 hours user training

  • Global shipping available (DDP or CIF)

Warranty & Support

  • 1-year full system warranty

  • 24/7 technical support (email, chat, video)

  • Lifetime software updates

  • IEC electrical and EMC compliance (CE/FCC equivalent)
