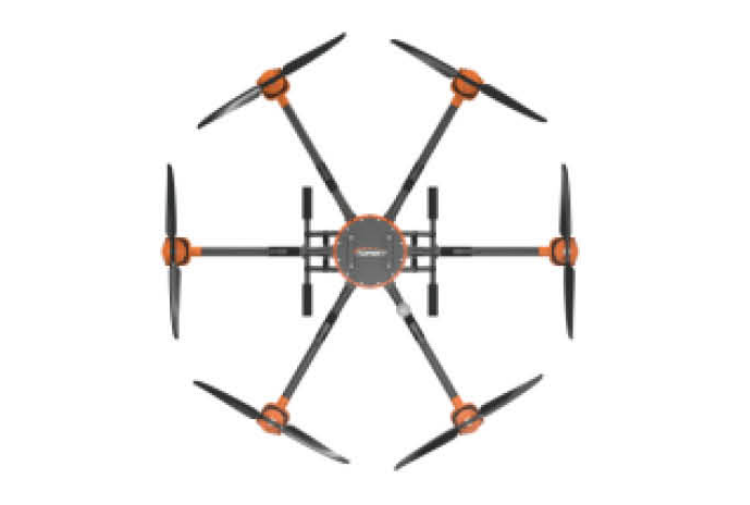

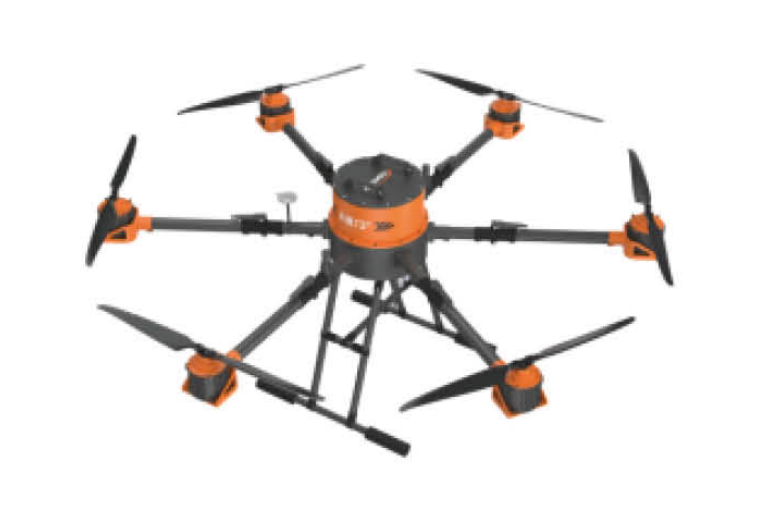

QL-EXPROOF-UAV – Explosion-Proof Drone
Fire emergency response, petrochemical safety drone.
OVERVIEW
Description
Product Features:
The explosion-proof Drone is a special-purpose drone designed specifically for flammable, explosive and high-risk environments. Its sealed flameproof enclosure is made of high-strength 7-series aerospace aluminum alloy, which can withstand internal explosion pressure and prevent flame leakage. Key components such as motors and electronic speed controllers adopt anti-friction design to eliminate the risks of static electricity and electric sparks. The intrinsic safety circuit ensures that the circuit energy is lower than the minimum ignition energy (MIE) of gases through current-limiting and voltage-limiting technologies. The explosion-proof battery pack uses special packaging technology to prevent battery short circuits or overheating. It meets the Ex ib IIC explosion-proof standard.
Product Parameters:
- Diagonal wheelbase: < 1700mm
- Size (without propellers): 1615*1815*840mm
- Maximum take-off weight: ≥ 35kg
- Maximum load: ≥ 3kg
- Flight time: ≥ 15 minutes
- Maximum flight speed: ≥ 8m/s
- Operating cruise altitude: 20-500 meters
- Load: Supports thermal imaging, gas detector, laser methane remote detector, leakage detector, nuclear radiation detector, dust monitor, etc.
- Explosion-proof certification for the entire explosion-proof drone: > Exd IIC
- Operating temperature: -20°C to 50°
