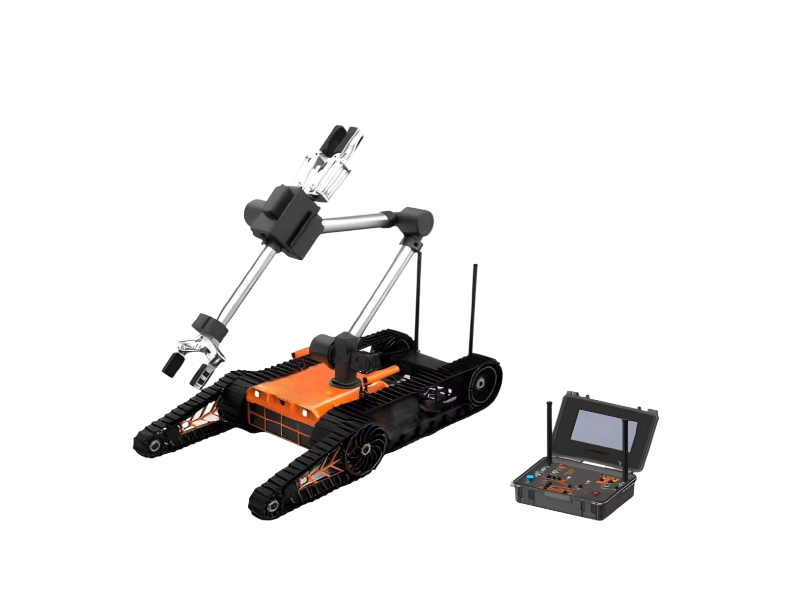

QL-ER3S EOD Robot
The QL-ER3S EOD Robot is a compact explosive ordnance disposal robot featuring a 7-degree-of-freedom manipulator arm, 50 kg lifting capacity, multi-camera HD imaging system, and both wireless and wired remote control. Designed for bomb disposal, hazardous inspection, and tactical public safety operations.
OVERVIEW
Description
The QL-ER3S EOD Robot is a compact and powerful robot designed for bomb disposal and hazardous inspection missions. It helps bomb squads and public safety teams handle dangerous situations while keeping operators at a safe distance. When choosing advanced technology for safety, consider the benefits an EOD Robot can offer.
The robot uses a strong crawler platform and a 7-degree-of-freedom robotic arm. As a result, operators can safely move suspicious objects and inspect hazardous areas. Furthermore, using an EOD Robot with these capabilities ensures operators have versatile tools for demanding missions. In addition, the robotic arm can lift objects up to 50 kg, which allows safe handling of heavy or dangerous materials.
The robot also includes a high-definition camera system. Operators receive clear visual feedback during missions, even in low-light environments. These are key advantages provided by an EOD Robot for accurate object inspection. Moreover, the zoom camera helps teams inspect objects closely and accurately.
The QL-ER3S supports both wireless and wired remote control. Therefore, operators can control the robot from a safe distance of up to 1000 meters. This improves safety during explosive disposal operations, which is an essential feature for any EOD Robot in demanding scenarios.
In addition, the robot features a compact design and strong mobility system. Because of this design, it can climb obstacles, move across rough terrain, and operate in difficult environments. Among robots, the EOD Robot stands out for its adaptability in various settings.
Key Advantages
-
Safe remote operation for hazardous missions is a core benefit when deploying an EOD Robot.
-
Featuring a 7-degree-of-freedom robotic manipulator, the EOD Robot delivers precision handling.
-
Maximum lifting capacity of 50 kg is achieved with the help of the EOD Robot’s robust engineering.
-
High-definition inspection cameras are a crucial asset of the EOD Robot for effective visual analysis.
-
Wireless control up to 1000 m is easily managed with an EOD Robot system.
-
Crawler mobility for rough terrain ensures the EOD Robot handles challenging environments.
-
Compact and durable robotic design is a hallmark of many EOD Robot models.
The QL-ER3S EOD Robot provides a reliable solution for bomb disposal teams, military units, and public safety organizations that require safe and precise robotic inspection tools. Because of its specialized functions, the EOD Robot is trusted in critical applications.
Technical Specifications
Manipulator System
-
Degrees of Freedom: 7
-
Maximum grab weight: 50 kg
-
Big claw open range: 0–280 mm
-
Small claw open range: 0–120 mm
Driving System
-
Speed: 0–2.3 m/s
-
Obstacle crossing height: 270 mm
-
Climbing capability: ≥40°
-
Turning radius: On-the-spot rotation
Imaging System
-
Cameras: 1 body camera + 4 manipulator cameras
-
Resolution: 1080P HD
Control System
-
Wireless control distance: up to 1000 m
-
Wired control distance: up to 100 m
-
Display: 12-inch LCD
-
Working time: up to 3 hours
Physical Parameters
-
Dimensions: 950 × 700 × 500 mm
-
Weight: 50 kg
-
Power supply: Lithium battery
-
Protection level: IP67
Key Features
-
7-degree-of-freedom high-precision manipulator arm
-
Maximum lifting capacity up to 50 kg
-
Dual claw mechanical arm design
-
Crawler and swing-arm mobility platform for rough terrain
-
Zoom camera with close-range inspection capability
-
High-definition micro-light camera for night operations
-
Wired and wireless remote control options
-
Compact, high-strength robotic platform
Applications
-
Explosive ordnance disposal (EOD) operations
-
Hazardous environment inspection
-
Suspicious object handling
-
Counter-terrorism response missions
-
Public safety and bomb squad operations
-
Remote manipulation in dangerous environments
