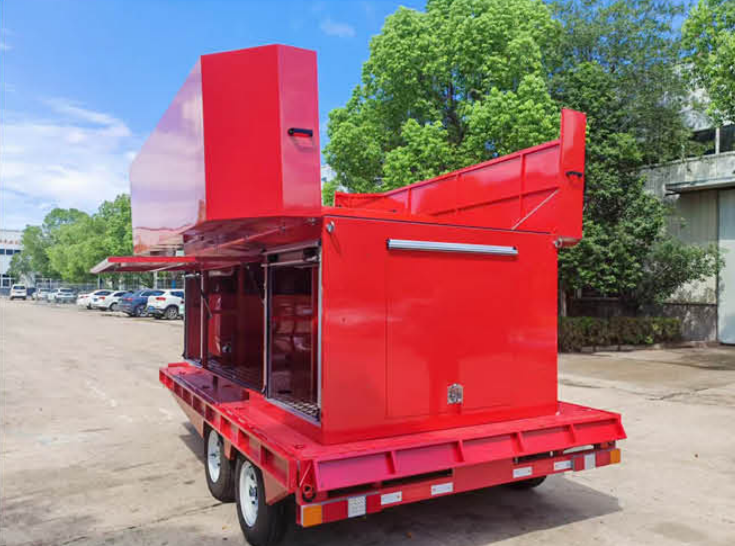

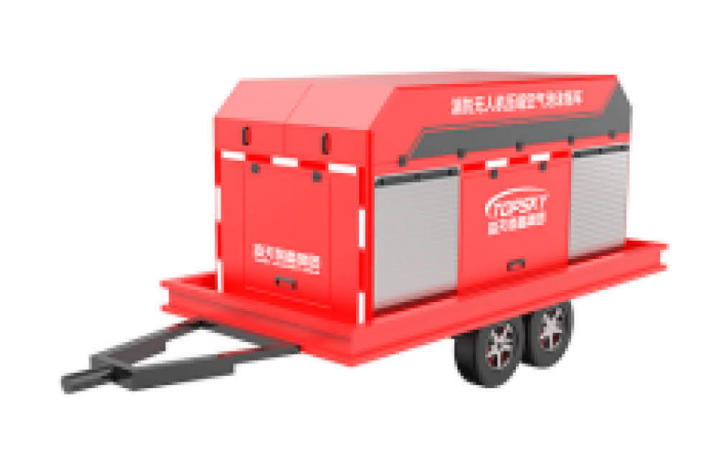

QL-CAFS – Firefighting Foam Trailer
High-capacity compressed air foam trailer, drone support.
OVERVIEW
Description
Product Features:
The foam trailer uses a mid-mounted axle trailer as the transportation platform, equipped with water hose mooring drones and a compressed air foam system (CAFS), carrying water and foam fire extinguishing agents. It features efficient fire suppression, high-altitude window breaking, automatic obstacle avoidance, rapid deployment, precise targeting of the fire source, multi-angle control of the fire point, and long aerial combat time. It can spray water and compressed air foam. The compressed air foam sprayed by the ultra-light floating water hose has a lighter density and can be quickly activated and ascend into the air, allowing the water hose to be lifted to a high altitude. The system has stronger operational stability.
Product Parameters:
- Overall dimensions: 5955 × 2500 × 2500 mm
- Total weight: 2490 kg
- Rated load capacity: ≥ 1740 kg
- Tare weight: 750 kg
- Number of tires: ≥ 4
- Drone communication control radius >≥ 15 km
- Maximum take-off weight; 120kg
- Maximum load; 60kg
- Payload flight time: ≥ 22 minutes
- Maximum flight speed: ≥ 16 meters per second
