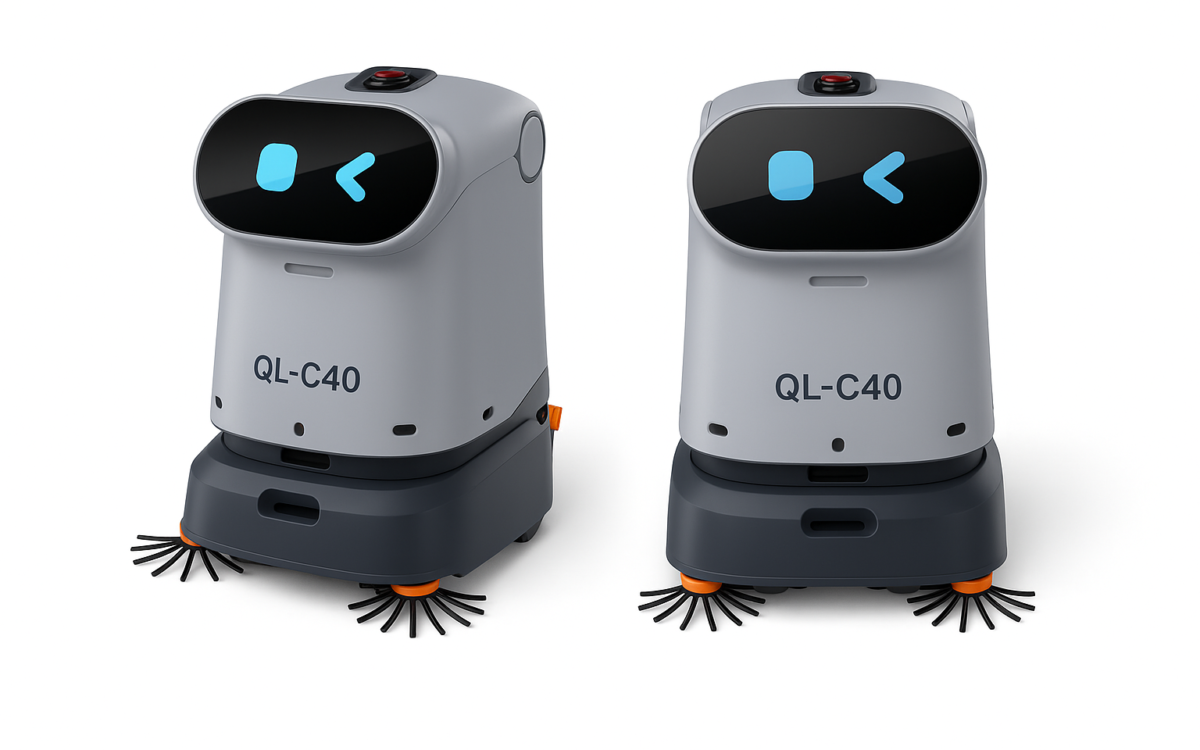

QL-C40-Cleaning Robot
Autonomous 4-in-1 commercial cleaning robot with LiDAR navigation, strong suction, and long battery runtime. Ideal for schools, offices, hospitals, and large facilities.
OVERVIEW
Description
Product use

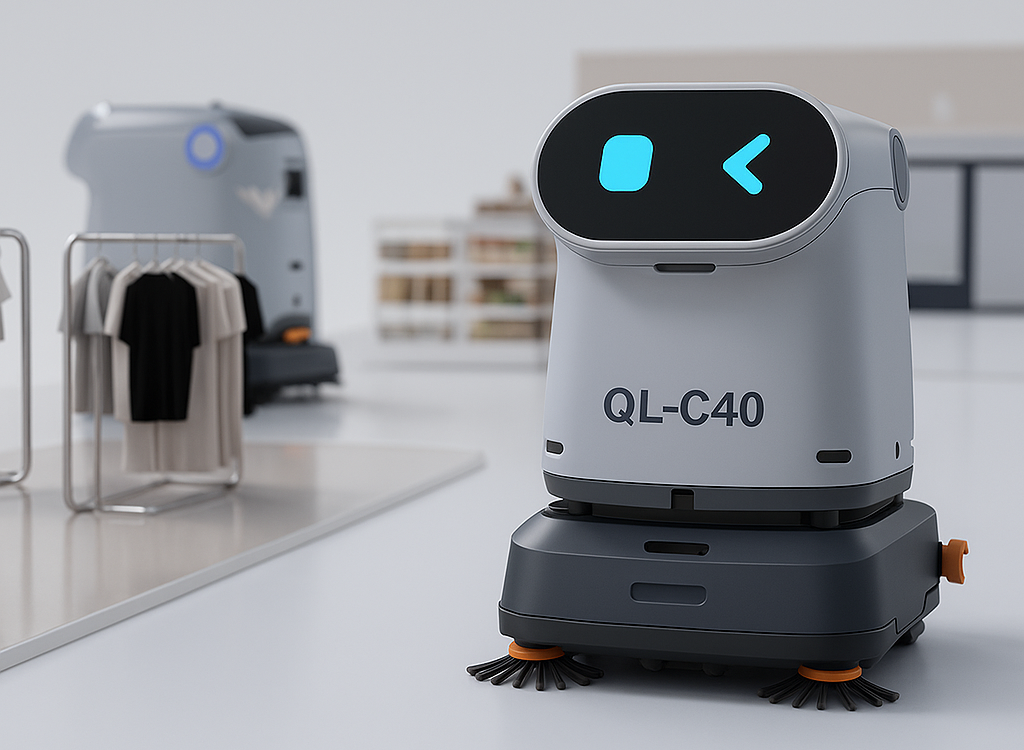

The QL-C40 is an advanced 4-in-1 commercial cleaning robot designed for autonomous floor maintenance in indoor environments such as schools, offices, hotels, hospitals, shopping centers, airports, warehouses, and public buildings.
With integrated scrubbing, vacuuming, mopping, and sweeping functions, the QL-C40 delivers consistent, high-quality cleaning performance with minimal human intervention.
Its LiDAR-based navigation system allows the robot to operate safely and efficiently in complex environments, avoiding obstacles and optimizing cleaning paths.
The QL-C40 is ideal for facilities seeking improved hygiene standards, reduced labor costs, and reliable autonomous cleaning operations.
Product features:
-
4-in-1 Cleaning System
Scrubbing, vacuuming, mopping, and sweeping functions integrated into a single autonomous platform. -
High Suction Power
Up to 23,500 Pa suction for effective dust, debris, and fine particle removal on various floor types. -
LiDAR SLAM Navigation
Advanced laser-based mapping and navigation for accurate path planning and intelligent obstacle avoidance. -
Automatic Water Supply & Drainage
Supports automatic clean-water filling and dirty-water drainage through a compatible docking station. -
Large-Capacity Tanks
16L clean-water tank and 14L dirty-water tank allow extended operation without interruption. -
Long Working Hours
Up to 8 hours of runtime depending on cleaning mode, with automatic return-to-charge functionality. -
Carpet Detection & Multi-Floor Compatibility
Automatically detects carpets and adjusts operation; suitable for tile, vinyl, hardwood, concrete, and short-pile carpets. -
Low Noise Operation
Quiet cleaning at ≤70 dB, ideal for noise-sensitive environments such as schools, clinics, and libraries. -
Remote Monitoring & Reporting
Real-time status tracking, cleaning reports, performance data, and remote control via management software. -
Extendable Steering Handle
Allows easy manual movement, repositioning, and setup by staff.
Technical Specifications:
-
Cleaning Modes: Scrubbing, Mopping, Sweeping, Vacuuming (4-in-1 integrated cleaning system)
-
Navigation System: LiDAR SLAM + multi-sensor obstacle avoidance
-
Machine Size: 500 × 578 × 690 mm (without suction bar) / 550 × 616 × 690 mm (with suction bar)
-
Net Weight: 26.6 kg (with battery)
-
Maximum Speed: 0.8 m/s
-
Suction Power: Up to 23,500 Pa
-
Clean Water Tank: 16 L
-
Dirty Water Tank: 14 L
-
Dust Collection Capacity: 8 L (TBD) / 0.7 L for separate dustbin
-
Battery Runtime: Up to 8 hours (mode-dependent)
-
Charging Time: Approx. 3 hours
-
Charging Method: Automatic docking or manual charging
-
Carpet Detection: Automatic identification and mode switching
-
Noise Level: ≤ 70 dB during operation
-
Floor Compatibility: Tiles, vinyl, hardwood, laminate, epoxy, concrete, and short-pile carpets
-
Reporting System: Real-time cleaning reporting, performance data output, mapping and monitoring
-
Water Station (Dock): Supports automatic water refill and drainage (optional accessory)
-
Handle: Extendable manual steering handle for easy movement
-
Safety Features: Anti-collision sensors, fall prevention, soft obstacle detection
-
Connectivity: Remote monitoring and configuration via software platform
