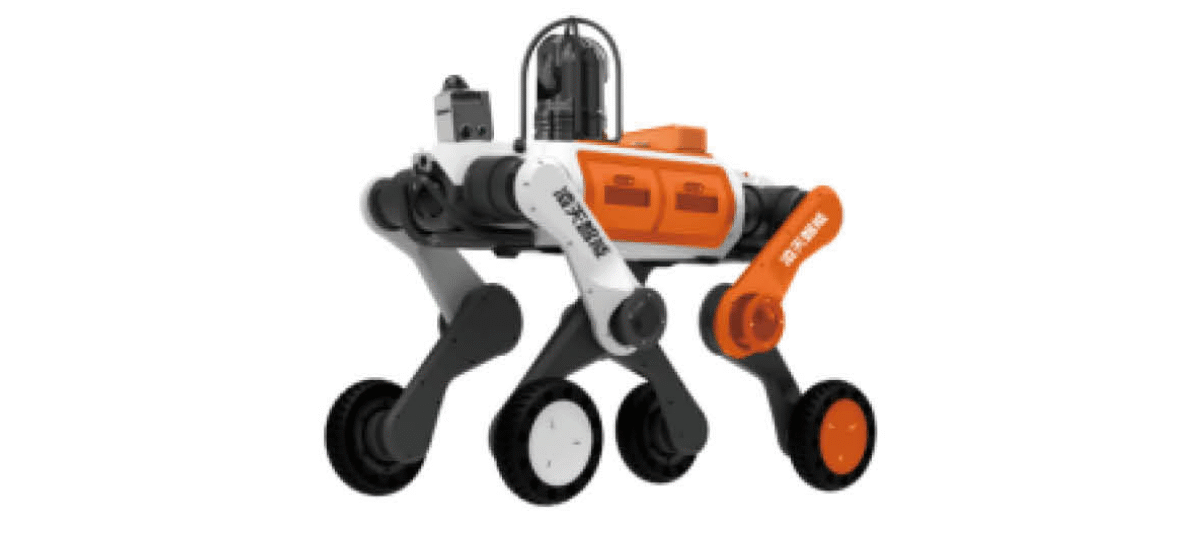

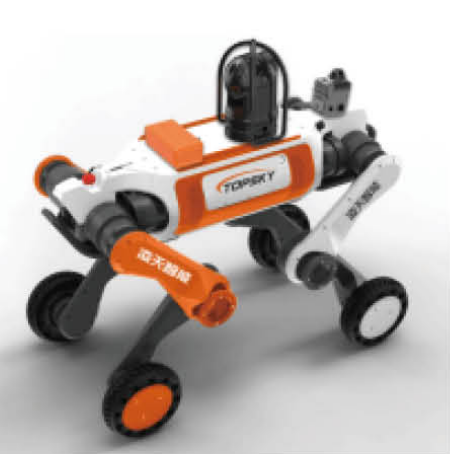

QL-C10LQ – Auxiliary Scout Robot Dog
Auxiliary Scout Wheel-Footed Robot Dog
(MESH explosion-proof self-organizing network base station,explosion-proof distributed self-organizing network
throwing device, explosion-proof multi parameter tester (10 gases), explosion-proof two-way intercom module)
OVERVIEW
Description
Product features:
- Strong flexibility and adaptability, capable of effectively executing tasks in various environments;
- ▲ Strong load capacity, high protection level: protection level IP67
- Can achieve long-distance remote control and audio and video transmission: 1110m in open environments
- ▲ Equipped with various modules, with expansion interfaces, supporting secondary development;
- ▲ Configured with handheld integrated remote control terminal: robot control, water gun control, video return, voice, intercom, gas and other data collection, support video recording, video projection in one;
- Power supply form: lithium battery, quick plug structure that can be replaced at any time;
- ▲ Lidar: 4 solid-state lidars, detection distance: ≥ 40m, capable of terrain perception such as stairs
- ▲ Distributed self-organizing network device: ensures normal communication of robots in environments with obstacles
Product Parameters:
- Protection level: IP66;
- Chassis standing dimensions: 820mm × 430mm x 570mm;
- Whole machine weight: 33Kg;
- ▲ Battery: Battery Capacity: Adopting an integrated plug-in high-performance lithium battery
- Battery life: Comprehensive operating range of 3h/15km
- Standing load: maximum 50Kg
- Continuous walking load:>15Kg;
- Stair walking ability:
- ▲ Slope walking ability:>40°
- ▲ Running speed:>5m/s
- ▲ Explosion proof cloth scattering self-organizing network throwing device, external dimensions: 80mm * 125mm *285mm, net weight: 850g, throwing method: electric excitation, caliber size: 38mm, chemical explosion-proof IIB
