QL-C100 – Earthquake Search & Rescue Robot
Earthquake Search Robot
Single Swing Arm + Detection of 8 Kinds of Gases + Infrared Thermal Imaging + Graphical and Numerical Integrated Remote Controller + Autonomous Navigation)
OVERVIEW
Description
Product features:
- ★ Intelligent Remote Controller Multifunctional expansion buttons Large visual operation screen

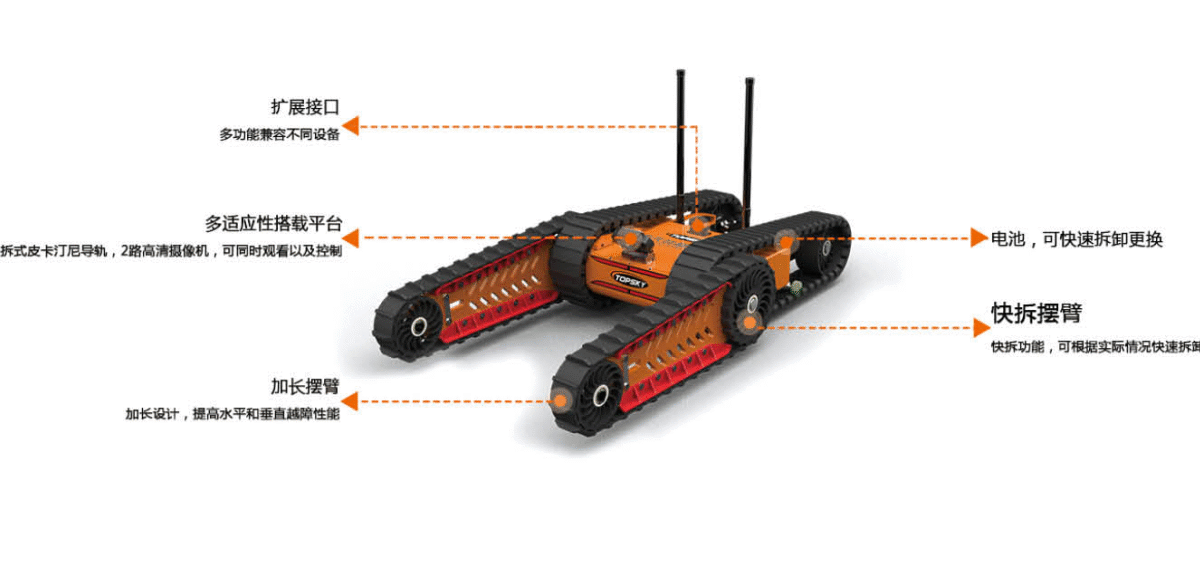

- ★ Modular Design of the Whole Machine Modular chassis, modular battery, modular suspension
- ★ Superior Performance in Climbing Slopes, Stairs, Crossing Obstacles and Ditches It can climb a 45-degree slope and a 40-degree staircase. It can climb over a 28-centimeter vertical obstacle. It can cross a ditch with a width of 41 centimeters.
- ★ Video System Three communication methods to ensure normal operation in non-visible environments, with a communication distance of 1 km. 2 high-definition cameras
Product Parameters:
- Dimensions: Length 610mm x Width 490mm x Height 200mm
- ★ Weight: <25kg
- ★ Maximum Straight-line Speed: >2.7m/s, stepless speed regulation under remote control
- Climbing Ability: >45°
- ★ Continuous Walking Time: >2h
- Obstacle-crossing Height: >280mm
- Stair-climbing Ability: 40°
- ★ Robot Crawler: The robot crawler should be made of flame-retardant, anti-static and high-temperature-resistant rubber, with Kevlar added inside, and has a derailment protection design.
