LX-FL120V1/150V1
Automatic Round Tube Laser Cutting Machine

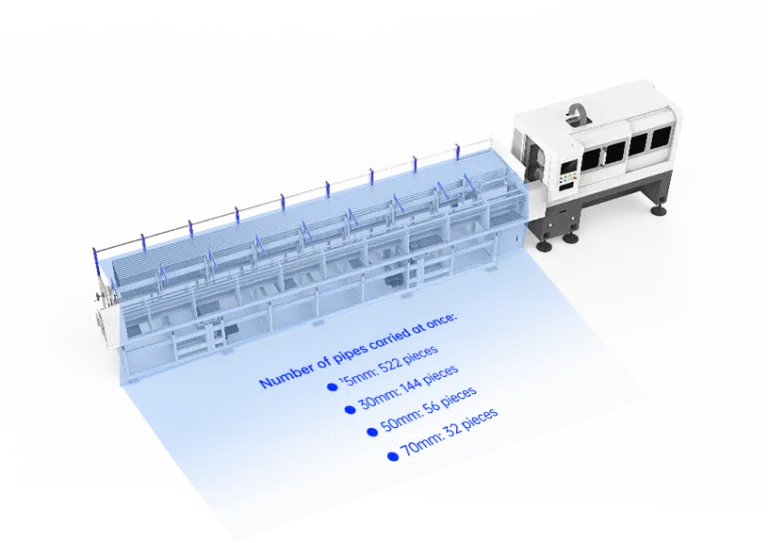

Fully automatic loading. Just hoist 6 meters of raw materials into the storage rack in batches to achieve
This machine only cuts round pipes, with a stable structure; supports 24-hour uninterrupted operation
The cutting range is wide, Φ15~120mm, and the efficiency is 5~6 times that of ordinary pipe cutting machines
The cutting process does not require 3D graphics, and the formula can be directly called on the human-machine interface
The tail material blind area is small, saving materials and reducing post-processing

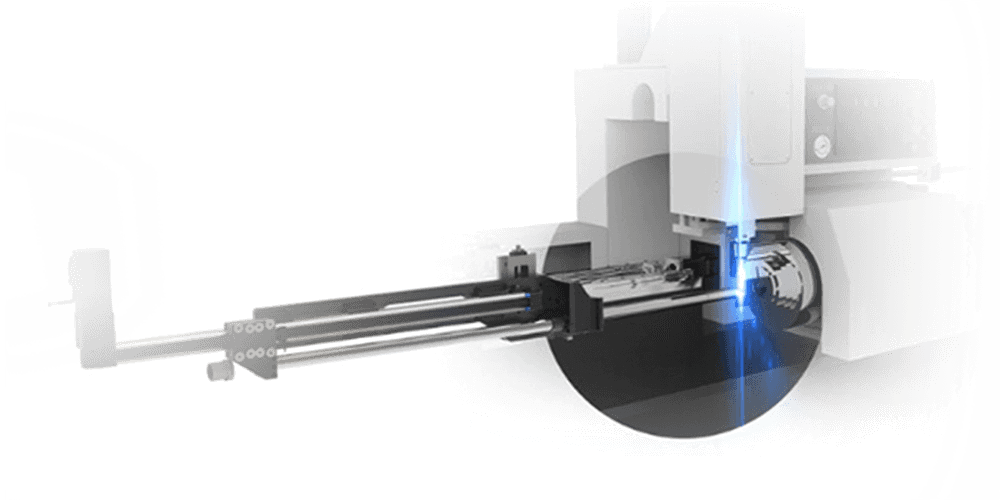

Simple and unique feeding method, when the pipe is in the feeder and cannot continue to feed once, the subsequent pipe will continue to push the current pipe to continue feeding to complete the tail material cutting
OVERVIEW
Description

Large Capacity
High speed cutting off pipe with diameter 15-120mm.

Exceptional Cutting Efficiency
1.5G acceleration and maximum 138m/min feeding speed, allows one machine to handle large-scale production tasks with ease.

Anti-spatter Function
Servo anti-spatter function keeps the inner wall clean and without slag.

High Cost-Effectiveness
Affordable pricing, high performance, and quick return on investment.
Technical Data
| Model: | LX-FL120V1/150V1 |
| Laser Power: | 1000W-3000W |
| Cutting Diameter Of Round Tube: | Φ16-118mm/Φ16-145mm |
| Cutting Tube Length: | ≤6500mm |

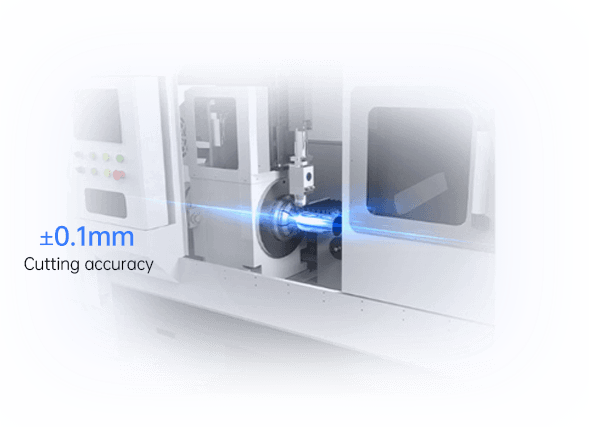

| Accuracy Of Processing: | ±0.1mm |
| Dimensions: | 9340*1560*1610mm |
| Weight: | 4 tons |
| Cutting Tube Type: | Round Tube / Square Tube |
| Cutting Material: | stainless steel, carbon steel, aluminum,copper,iron |
Cutting samples
