Hybrid Fiber & CO2 Laser
Double laser cutting head make cutting metal and non-metal on one table possible!
Saving 30% power energy, 100% installation machine space, 70% cost for you!
Suitable for sheet metal fabrication factories, advertising & sign firms, crafts, modeling, furniture manufacturing companies which are in need of cutting both metal and non-metal materials.
OVERVIEW
Description
QuakeLogic is an authorized distributor of OMNICNC
On this machine, you can cut metal:
- 0.5-9mm carbon steel
- 0.5-6mm stainless steel
- galvanized sheet
- 0.5-3mm aluminum alloy
- 0.5-3mm brass or copper
- You can also use CO2 laser to cut various non-metallic materials:
MDF, wood, acrylic, fabric

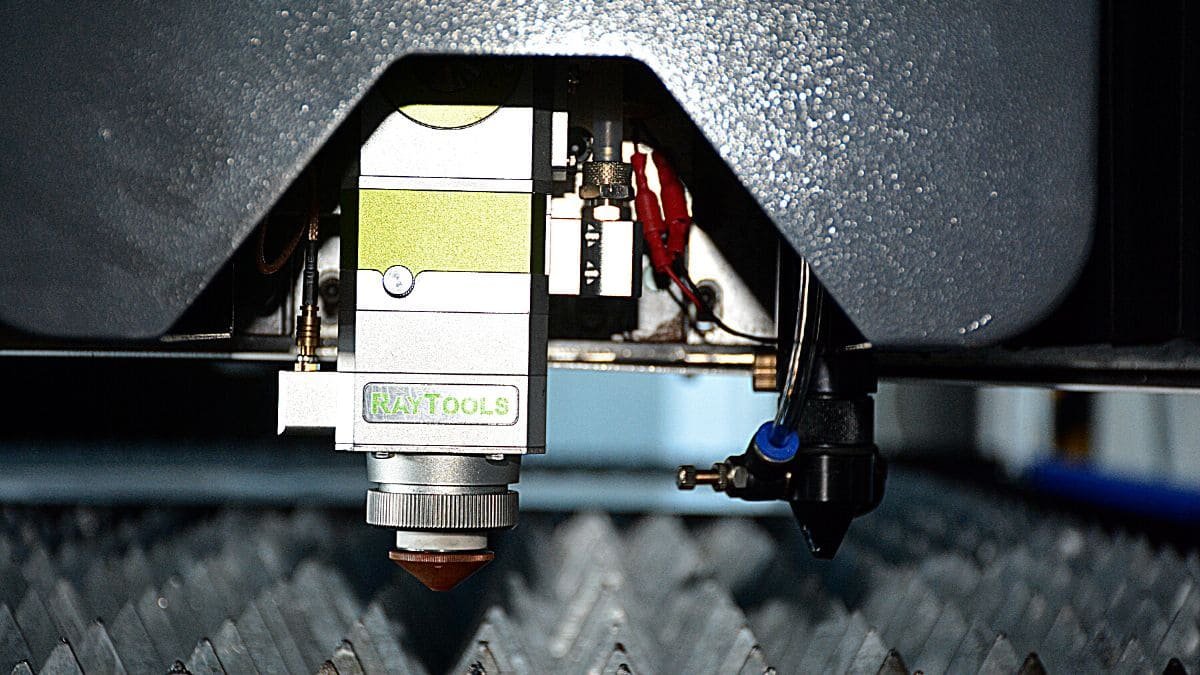

Double Cutting Head for Metal & Non-Metal
Designed for cutting metal & non-metal materials
Wide range of laser powers available (Fiber laser from 1000W-3000W, CO2 laser from 130W-300W)
| Material | Speed | Auxiliary Gas | Air Pressure |
|---|---|---|---|
| Carbon steel 0.5mm | 2.4–3 m/min | Oxygen | 0.7–0.8 |
| Carbon steel 1mm | 1.8 m/min | Oxygen | 0.7–0.8 |
| Carbon steel 1.5mm | 1–1.2 m/min | Oxygen | 0.7–0.8 |
| Stainless steel 0.5mm | 2.4–3 m/min | Oxygen | 0.7–0.8 |
| Stainless steel 1mm | 1.8 m/min | Oxygen | 0.8–0.9 |
| Stainless steel 1.5mm | 1–1.2 m/min | Oxygen | 0.8–1.0 |

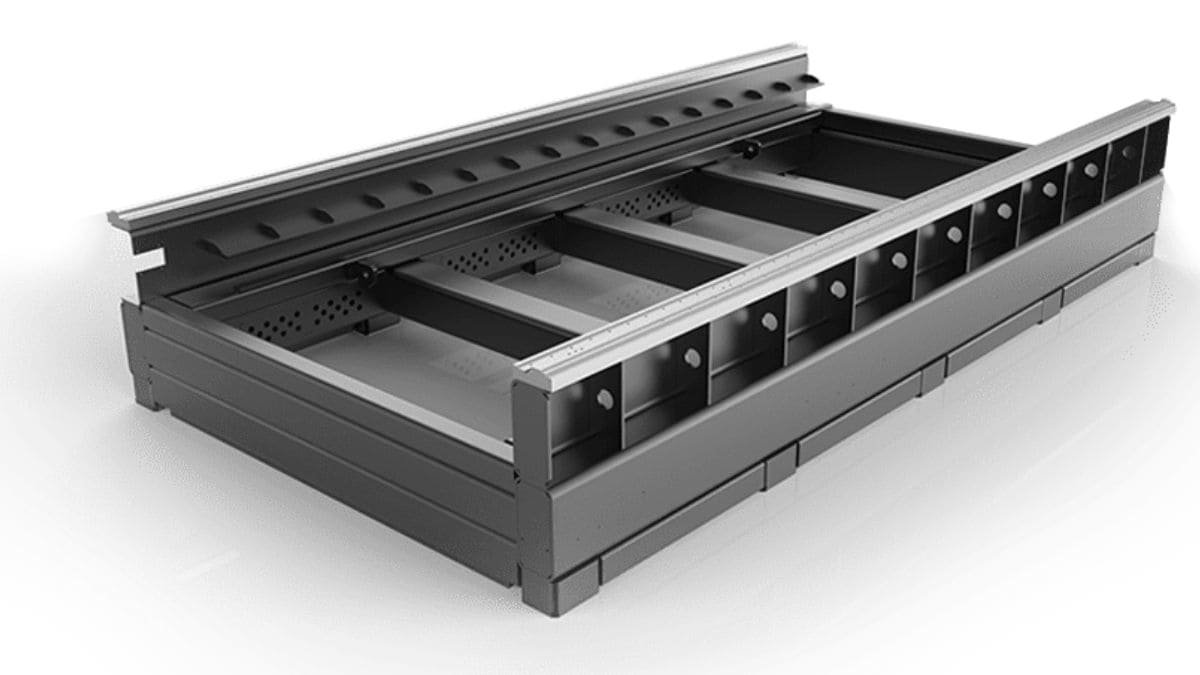

EXTRA SOLID FRAME
Extra heavy duty welded steel frame and gantry for maximum straightness and rigidity
COLD DRAWN EXTRUDED ALUMINUM BEAM
Cast aluminum beam with high rigidity,And the weight is 1/2 lingter than traditional welding iron gantry.
WORLD FAMOUR DRIVING SYSTEM
Yaskawa servo drivers and motors for high power and speed

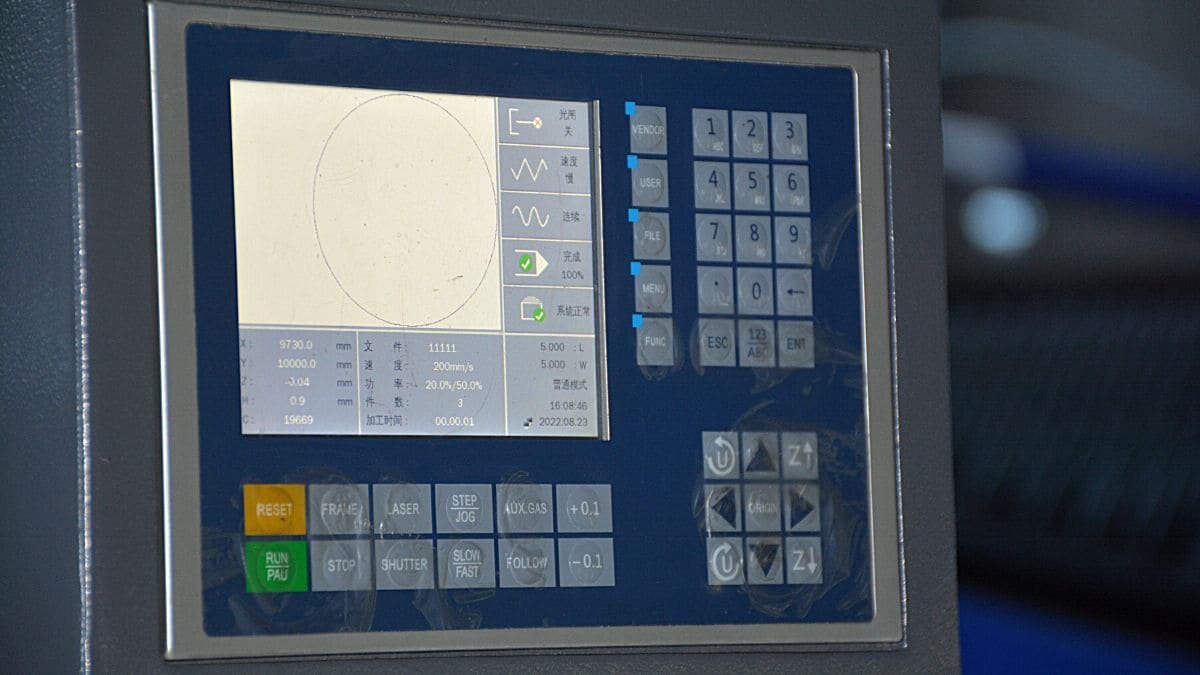

QUALITY LASER CONTROLLER :RUIDA
With this software, you could transfer between fiber version and co2 laser version freely.
Parameters
| Working Dimension (mm) | 1500 * 3000 *100 |
| Laser Head | Fiber laser (1000W-3000W) & CO2 Laser (130W-300W) |
| Max Cutting Speed | 350mm/s |
| Repeatability | +-0.03mm |
| Max. Rapid Travel Speed | 20m/min |
| Total Power | Less than 6KW |
| Drive System X and Y axis | Rack and Pinion, rail linear bearing |
| Drive System Z axis | Lead Screw, rail linear bearing |
| Motor | Servo motor and driver |
| Voltage | AC380V/50HZ, 3PH; 220V/60Hz,3PH; AC440V/50HZ, 3PH |
| Operating System | RUIDA |
| File Format | plt, dxf, ai |
