Handheld Welder
Efficient: 3X faster than TIG
Easy Operation : Presets have been optimized, easy to learn it.

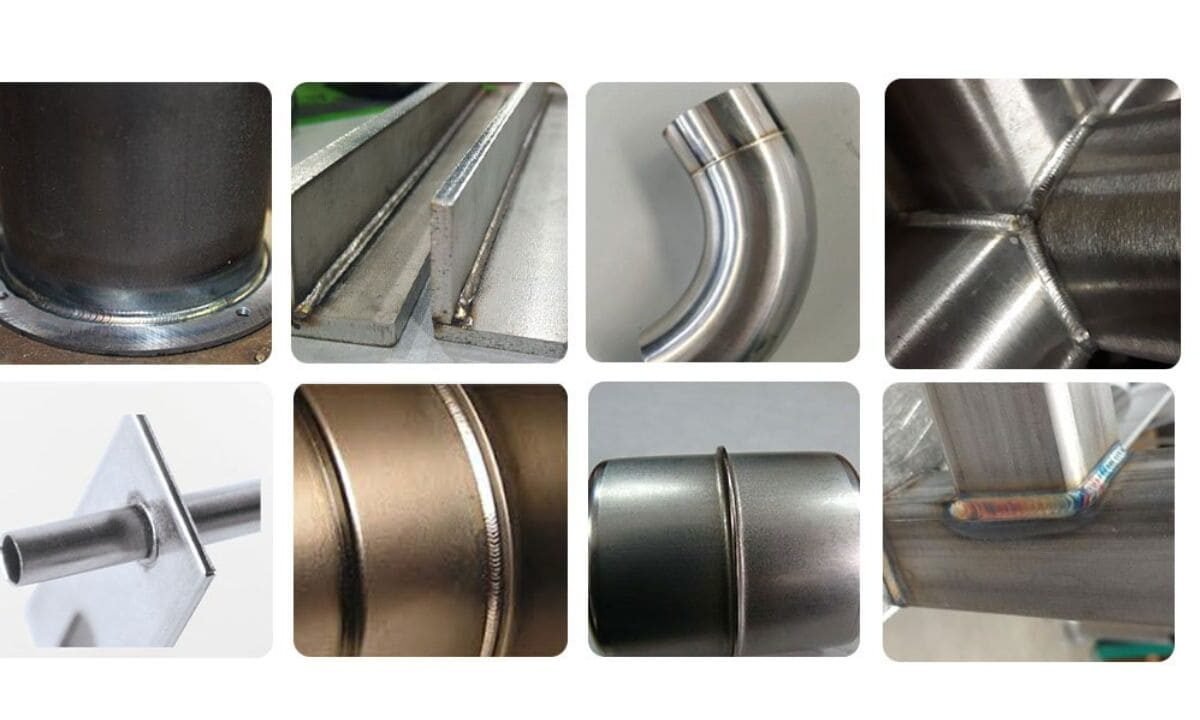

Versatile: Iron, stainless steel, galvanized sheet, copper, AL etc.
Constant: High quality & repeatable outcomes
OVERVIEW
Description
QuakeLogic is an authorized distributor of OMNICNC
Ergonomic, comfortable grip, easy to grasp laser pistol with wobble (optional) welding capabilities.
A two-step trigger and a component contact sensor improve operator safety.
Specially designed nozzle tips for various weld joint types and pre and post weld cleaning applications
Quickly convert from normal laser welding to wire welding, and from laser welding to laser cleaning

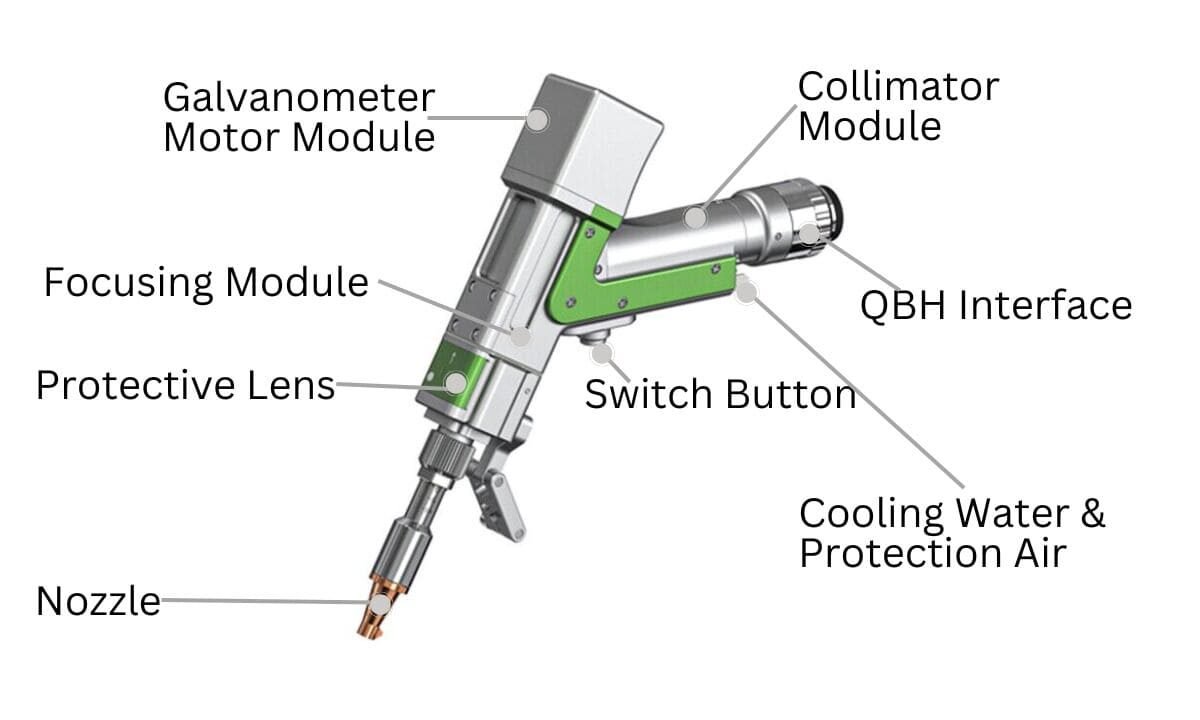

LASER WELDING & CLEANING HEAD

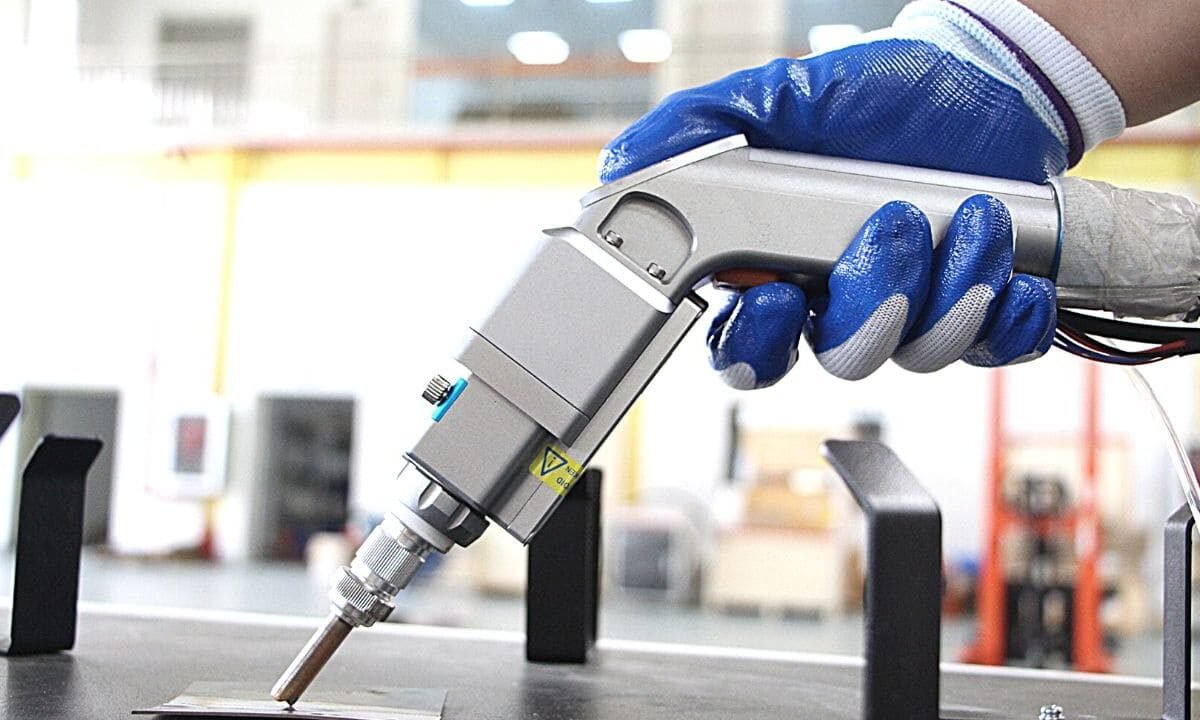

Ergonomic, comfortable grip, easy to grasp laser pistol with wobble (optional) welding capabilities.
A two-step trigger and a component contact sensor improve operator safety.
Specially designed nozzle tips for various weld joint types and pre and post weld cleaning applications
Quickly convert from normal laser welding to wire welding, and from laser welding to laser cleaning

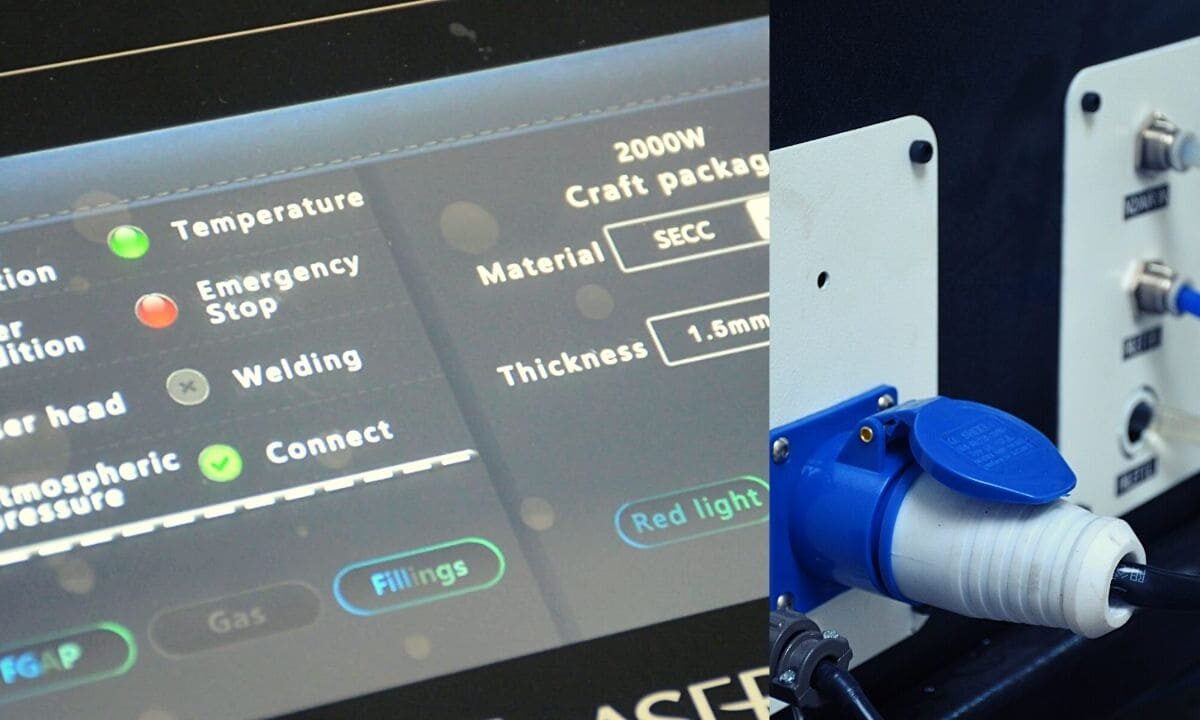

QUICK & SIMPLE SETUP
Clearly labeled back connections make it quick and easy to get started.
Simply plug in the power cable and gas connection, mount the clamp to the work area, and the system is ready to use.
A single cable delivers laser power, gas, and gun control.
WIFI connection offers access to complex parameter settings on APP to precisely adjust and record process parameters.
HIGH EFFIEIENCY FIBER LASER WELDING
2X of YAG laser welding, 3X of TIG welding.
No deformation of the welding seam
Stable laser output to ensure welding consistency
HIGH QUALITY LASER WELDER
Suitable for various complex welds
Easily weld any part of the workpiece at any angle
The heating area is small and no deformation

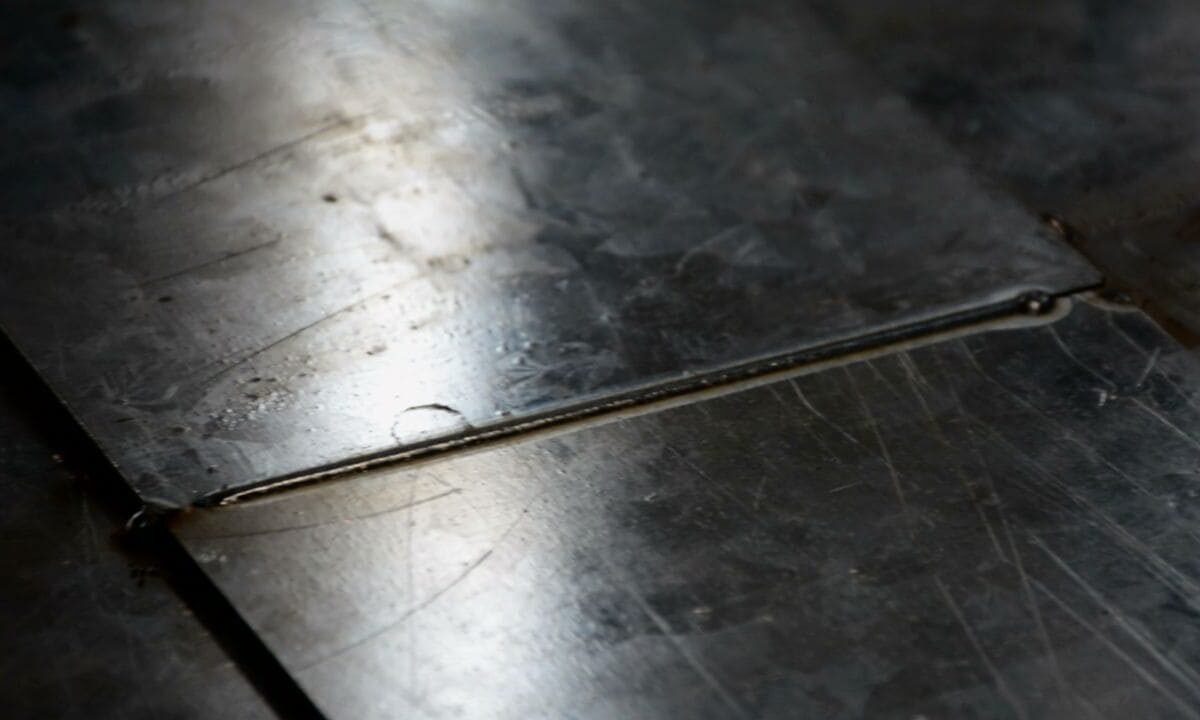

Smooth welding seam, and no treatment required after welding
High weld quality, no porosity, weld strength and toughness are at least equivalent to base metal;
EASY OPERATION
Simple preset selection enables constant high-quality laser welding and cleaning with the OMNI – Factory Presets.
Wobble welding is included in the presets to handle broader seams and pieces. (OPTIONAL)
Operators can instantly switch between presets to process multiple material-thickness combinations;
Advanced customized parameters set up for customs welding requirements.
Less experience requirements for operators, less scrap ratio, high productivity.
Parameters
| Model | OMNI-1000 |
|---|---|
| Laser Head | Fiber laser 1000W / 2000W / 3000W |
| Cable Length | 9M |
| Cooling Mode | Water Cooling |
| Welding Thickness | 0.5–5mm |
| Gas Assist | Nitrogen |
| Visual Positioning | Red Dot |
| Voltage | 220V Single Phase |
| Power Consumption | 5500W/25A ; 7000W/32A ; 9500W/25A |
| Machine Weight | 245KG / 260KG / 300KG |
