Earthquake Experience Table – Interactive Shake Table for Earthquake Demonstrations
🚀 Available in uniaxial or biaxial configurations, it features a 1000mm x 1500mm table, 250-kg payload capacity (@ ±1g), and ±200mm stroke. The servo-electro-mechanical system ensures low power consumption, three-phase power operation, and precise closed-loop PID control. It must be fixed to the ground but does not require a strong floor. Fully operable via PC software, it supports earthquake simulation, custom waveforms, providing a turnkey solution for advanced testing.
OVERVIEW
Description

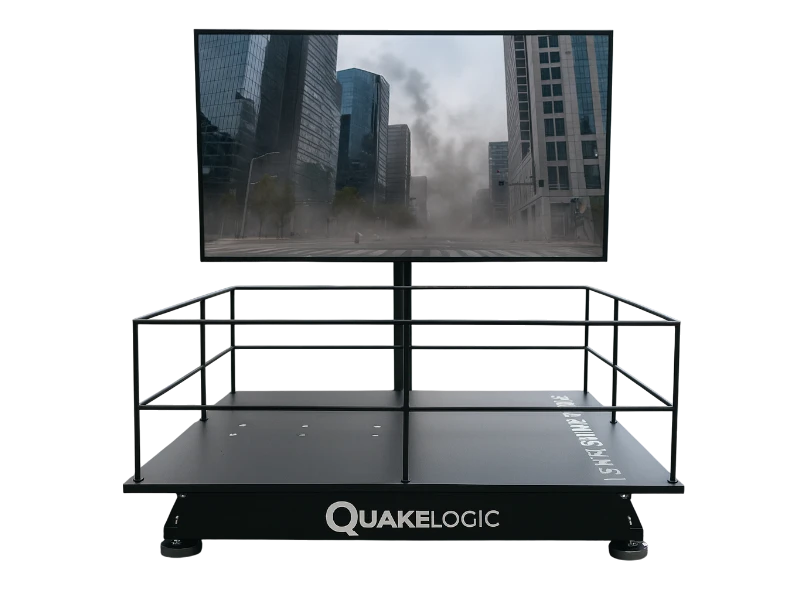

Bring earthquakes to life in a controlled, safe, and educational environment. The QuakeLogic Earthquake Experience Table is a high-precision shake table designed to simulate realistic ground motion for students and the public to observe, feel, and understand seismic behavior firsthand.
Engaging Earthquake Demonstrations for All Audiences
Perfect for STEM education, public outreach, and university demonstrations, this system transforms complex earthquake concepts into visual and tangible experiences.
With its robust 250 kg payload capacity and extended 1 m × 1.5 m platform, instructors can mount various model structures — from small buildings to bridges — to show vibration modes, resonance effects, and base isolation performance.
Safety rails around the platform provide added protection during live demos, allowing audiences to closely observe the shaking experience without risk.
Why Choose QuakeLogic
QuakeLogic is a global leader in seismic and structural health monitoring solutions. Our earthquake simulators combine precision motion control with rugged design, ensuring reliable performance for both educational and research environments.
Request a Quote
Interested in adding this to your lab or public exhibit?
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| TYPE | Uniaxial, Biaxial |
FEATURES
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Payload | 250 kg |
| Table Dimensions | 1.0 m × 1.5 m |
| Motion Type | Uniaxial (optional Biaxial) |
| Drive Mechanism | Servo Motor |
| Stroke | ±125 mm |
| Peak Acceleration | Up to 2 g |
| Frequency Range | 0.1 Hz – 50 Hz |
| Power Supply | 110 V AC (optional 220/480 V AC) |
| Weight | Approx. 280 kg |
| Safety | Full-height guard rails and lockable casters |
APPLICATIONS
-
🎓 University Civil Engineering Labs – Demonstrate seismic response and base isolation
-
🧒 STEM and K–12 Programs – Bring classroom concepts to life with hands-on shaking
-
🏛️ Science Museums & Public Exhibits – Provide visitors with a “Feel the Quake” experience
-
🧪 Research Demonstrations – Test miniature models and validate structural performance
