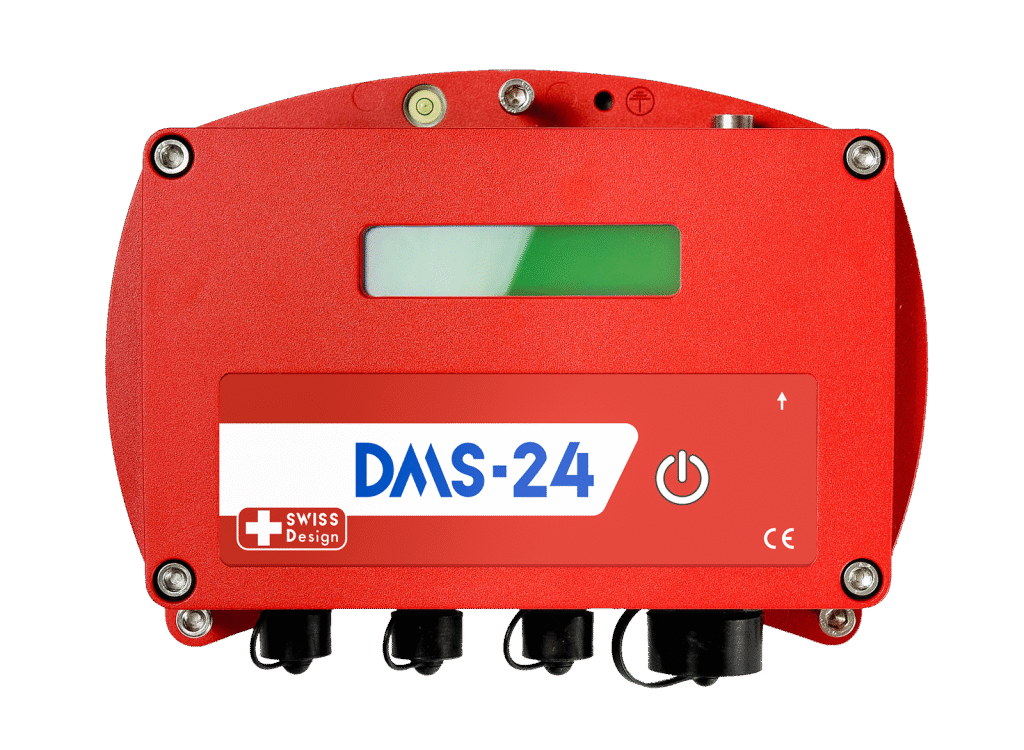

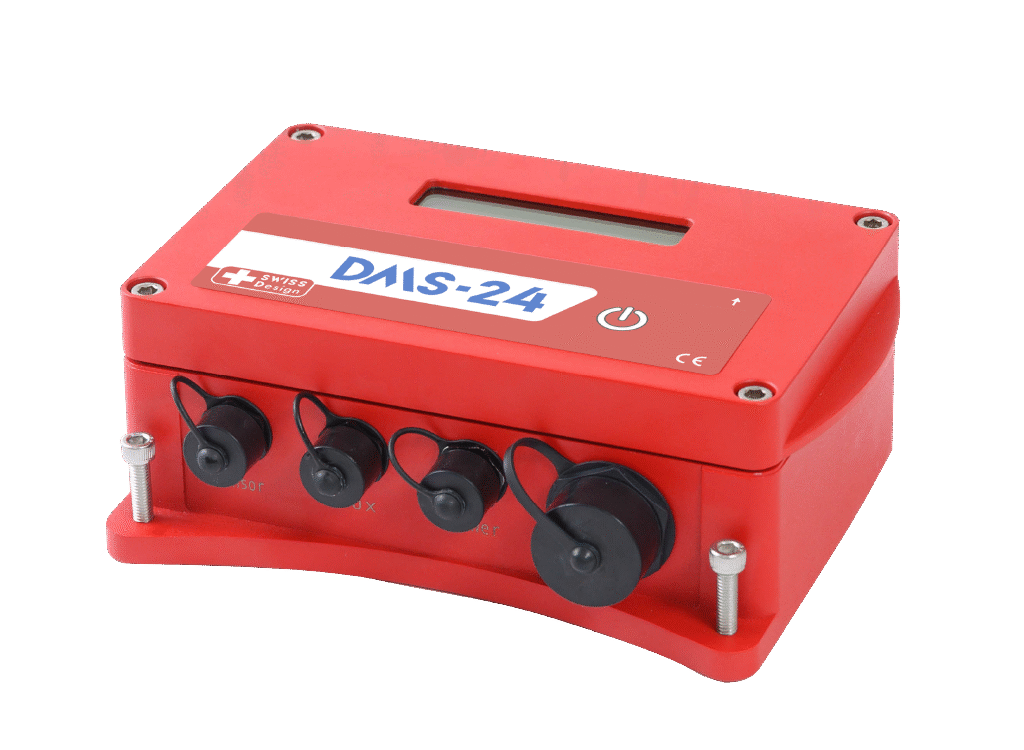

DMS-24 Dynamic Datalogger
The DMS-24 Dynamic Datalogger redefines precision in data logging with its exceptional dynamic range exceeding 120dB. Whether deployed in Earthquake Early Warning Systems (EEWS), Remote Structural Health Monitoring (RSHD), or bridge monitoring, this versatile device stands out as a reliable solution for a myriad of applications. For optimal performance, the DMS-24 is recommended to be paired with our advanced force balance accelerometers ‒ SHAKE FA135 and SHAKE FA335. The device’s seamless integration is further enhanced by its support for Modbus TCP and MQTT protocols, facilitating straightforward communication and interoperability within existing networks.
OVERVIEW
Description
Introduction
The DMS-24 Dynamic Datalogger redefines precision in data logging with its exceptional dynamic range exceeding 120dB. Whether deployed in Earthquake Early Warning Systems (EEWS), Remote Structural Health Monitoring (RSHD), or bridge monitoring, this versatile device stands out as a reliable solution for a myriad of applications. For optimal performance, the DMS-24 is recommended to be paired with our advanced force balance accelerometers ‒ SHAKE FA135 and SHAKE FA335. The device’s seamless integration is further enhanced by its support for Modbus TCP and MQTT protocols, facilitating straightforward communication and interoperability within existing networks.
DMS-24 allows users to fine-tune data logging parameters according to specific requirements, adding a layer of adaptability to its capabilities. The built-in web graphical user interface (GUI) enhances user experience, providing easy access to device settings and real-time data visualization.
Applications
Earthquake Early Warning System (EEWS)
Rapid Structural Health Diagnostic (RSHD)
Bridge Monitoring
Key Features
- Dynamic Offset
- Built-in Web GUI
- Modbus Protocol
- Support Real-time of Local Intenisty Scale
- Tme Synchronization via NTP
Best Suited
- Dam Monitoring
- Residential Buildings
- Bridge Monitoring
Product Specification
| Sensor Type | Tri-axial FBA Accelerometer |
|---|---|
| Sampling Rate | 50 sps, 100 sps, 200 sps, 400 sps |
| Channel of Sensor | 4 |
| Offset Drift | 0.000001 g/°C |
| Measuring Range | ±2 g |
| Communication | RJ-45 |
| Selectable Sensitivities | 100 SPS, 200 SPS, 500 SPS, 1000 SPS (configurable) |
| Operation Temperature | -20°C to 70°C |
| Selectable Sensitivities | 5 V/g |
| Storage | 16 GB (option to 64GB) |
| Power Supply | 12 VDC |
| Built-in Watch Dog Function | 10 s |
| Full Scale Output | ±10 V fully differential at 50 ohm |
| Network Module | 10/100Base-TX Ethernet Controller |
| Bandwidth | DC – 100 Hz |
| Algorithms | Pd, PGA, STA/LTA |
| ADC Resolution | 24 bit |
*All prices, features, and specifications are subject to change without prior notice.
