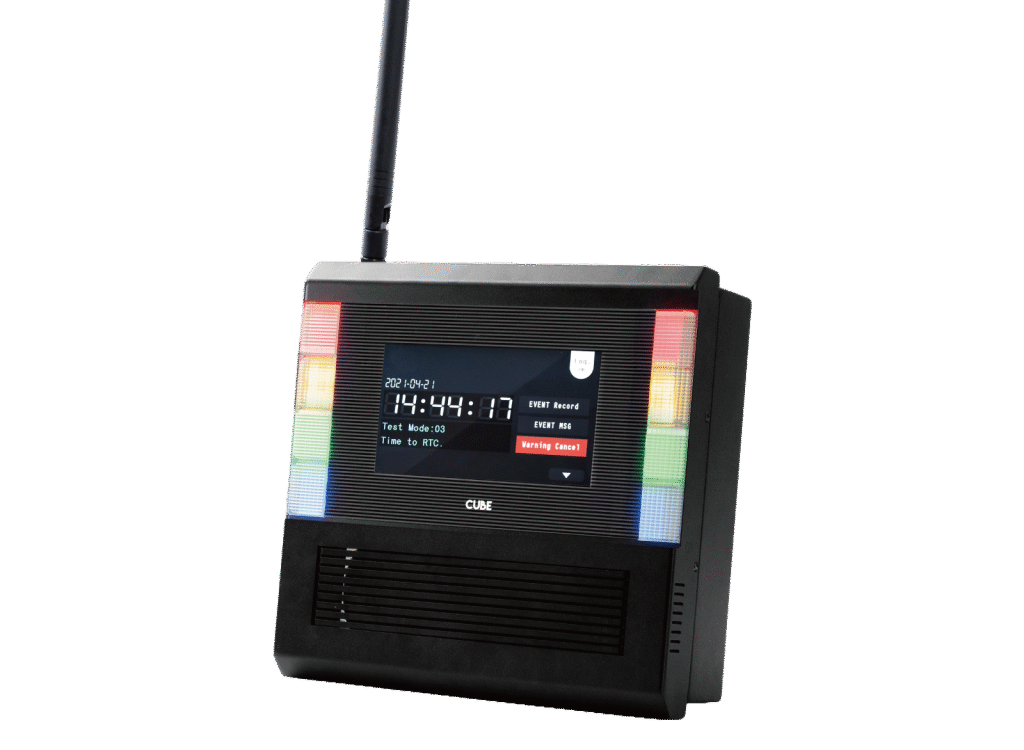

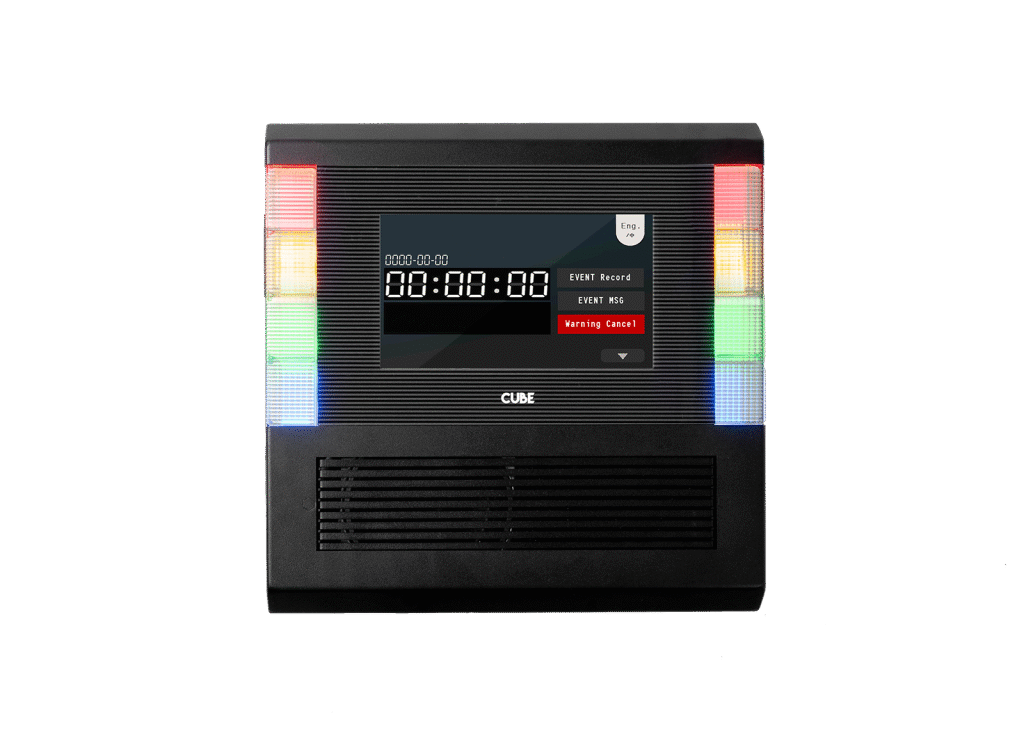

CUBE Onsite Control & Display Interface
CUBE is a powerful onsite earthquake early warning command center, alarm device and datalogger, featuring visual, voice, and dynamic text display via its 4-phase LED indicator, built-in speaker, and 7-inch touch screen. Similar to PX01, CUBE supports Modbus protocol for users to integrate into the SCADA, MES, or other management programs. The SeedLink protocol is also supported in CUBE for 3rd-party accelerographs to integrate. The N-of-M voting algorithm is included in CUBE, too. Therefore, CUBE is an ideal onsite interface for earthquake early warning and emergency controls. Besides, CUBE embeds HAZUS quick structural damage assessment algorithm (a.k.a. RSHD). Within a minute after a felt earthquake event, CUBE is able to send out the preliminary result based on the stiffness or inter-story drift ratio of a 3-accelerograph system. The RSHD cloud service is also available upon request.
OVERVIEW
Description
Introduction
CUBE is a powerful onsite earthquake early warning command center, alarm device and datalogger, featuring visual, voice, and dynamic text display via its 4-phase LED indicator, built-in speaker, and 7-inch touch screen. Similar to PX01, CUBE supports Modbus protocol for users to integrate into the SCADA, MES, or other management programs. The SeedLink protocol is also supported in CUBE for 3rd-party accelerographs to integrate. The N-of-M voting algorithm is included in CUBE, too. Therefore, CUBE is an ideal onsite interface for earthquake early warning and emergency controls. Besides, CUBE embeds HAZUS quick structural damage assessment algorithm (a.k.a. RSHD). Within a minute after a felt earthquake event, CUBE is able to send out the preliminary result based on the stiffness or inter-story drift ratio of a 3-accelerograph system. The RSHD cloud service is also available upon request.
Applications
Earthquake Early Warning System (EEWS)
Structural Health Monitoring (SHM)
Rapid Structural Health Diagnostic (RSHD)
Key Features
- Easy Access by Built-in Web GUI
- Onsite Early Warning
- Regional Early Warning
- IoT
- Modbus Protocol
- HAZUS
Best Suited
- Manufacturing Plants
- Commercial Buildings
- Residential Complex
Product Specification
| Indicator | 4-color LED indicator |
|---|---|
| Time Synchronization | NTP |
| Display | Industrial-class 7″ touch interface |
| Power Consumption | 12W@24VDC |
| Working Temperature | -20°C to 70°C |
| Speaker | High-dB speaker 4Ω |
| RTC Accuracy | ±60 sec/year, supporting NTP synchronization |
| Relative Humidity | 5 – 90% RH, no condensate |
| Storage | 32 GB (up to 64GB) |
| Weight | 5.3 kg |
| Relay | 4 sets |
| Dimension (W x H x D) | 290 x 290 x 100 mm |
*All prices, features, and specifications are subject to change without prior notice.
