CSDP-IRP
Seismic Intensity Rapid Reporting Software System
OVERVIEW
Description
Thermal Intensity Information Distribution System
1) Website for dissemination of thermal information ·
- Support the query and display of intensity, peak value and response spectrum distribution produced by the intensity rapid reporting system ·
- Dynamically display the working status of each station, instrument intensity value and other information
- Dynamic display of epicenter distribution · Support for querying instrument intensity, seismic information, and detailed station operating status.
2) Mobile client software
- The epicenter is based on Baidu Maps.
- Automatically receive seismic information and intensity distribution information. Based on the intensity distribution map and peak acceleration distribution map displayed by Baidu Map.

Java runtime environment Java
▲Hardware: commercial computer (more than 250GB hard disk, 100M The above network card, 2G or more memory)
▲Software: Windows 10 or above.
▲Supports adaptation to domestic operating systems such as Kylin.
case


Degree calculation
▲The software is implemented based on GIS and runs in realtime
▲Intensity, peak value and response spectrum distribution are calculated and displayed automatically
▲Maps produced based on database storage
▲Supports query history
Major Function
Real-time waveform reception
• Supports real-time waveform data flow received from strong earthquakes, seismic stations, and JOPEN stream servers
• Supports receiving instrument intensity information from the intensity meter
• Supports continuous storage of waveform data files
Earthquake event detection and processing
• Real-time seismic trigger detection is performed on the received waveform data, simulating seismic waveform data as acceleration records
• Automatically stores event waveform files
• Automatically calculates instrument intensity value, PGA value, and response spectrum

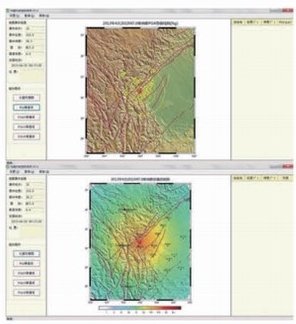

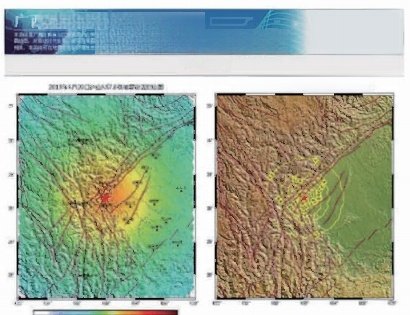

• Automatically generates intensity distribution map and PGA distribution map based on instrument intensity and PGA values
• Utilizes calculation results from database and intensity meter readings
• Provides SMS and voice alarms
Dynamic vibration map function
• Supports visualization of dynamic vibration maps
Urgent message reception
• Supports receiving urgent messages from EQIM servers
Network-based data services
• Provides data services including waveform, system running status, intensity calculation results, etc.
System monitoring
• Real-time waveform browsing
• Automatic disk space maintenance
• Station and system error alarms
