Buoy Based Ocean Seismic Observation System
Integrated deep-ocean seismic observation system with buoy platform, seabed monitoring station, underwater transmission chain, multi-anchor mooring system, and land-sea data transmission network. Engineered for real-time seismic, hydrological, and environmental monitoring in harsh marine environments.
OVERVIEW
Description
The Buoy Based Ocean Seismic Observation System is a fully integrated, multi-component marine seismic monitoring solution. It is designed for real-time seismic, hydrological, and meteorological observation in deep-water and coastal environments. The system combines a buoy platform, undersea seismic monitoring base station, underwater data transmission chain, anchor and mooring systems. Furthermore, it includes a land-sea data transmission network and a shore-based control and data reception station.
By establishing a three-dimensional ocean observation architecture, the system enables continuous 24/7 monitoring. It watches over seismic activity, seabed deformation, ocean hydrology, and environmental changes.
The buoy platform provides power supply, data communication (satellite & 4G), GNSS timing, AIS collision avoidance, lighting, and onboard monitoring systems.
The underwater seismic unit employs broadband seismometers. These are placed along with auxiliary sensors inside a sealed pressure-resistant housing, which ensures low noise, high stability, and long-term reliability.
The underwater transmission chain ensures secure optical/electrical signal communication between the seabed station and the buoy. Multiple mooring configurations are available—including gravity anchors, electric anchors, chain combinations, and buoyancy modules. These offer stable and adaptive station-keeping under waves, currents, and typhoons.
The land-sea communication subsystem transmits all collected data to coastal base stations and monitoring centers. This enables real-time visualization, alerts, historical playback, and full operational control over the entire observation infrastructure.
This system is ideal for marine earthquake monitoring, tsunami early-warning networks, offshore engineering, seabed deformation studies, and long-term ocean geophysical research.
FEATURES
-
Full marine seismic monitoring architecture with buoy + seabed station
-
Real-time seismic, acoustic, environmental, and met-ocean data collection
-
Buoy platform includes solar power, battery storage, GNSS timing, AIS, and satellite/4G communication
-
Broadband undersea seismometer with wide frequency range and high sensitivity
-
Pressure-resistant sealed chamber for safe long-term underwater operation
-
Intelligent underwater data transmission chain with armored cable, floats, buffer, and connectors
-
Multiple anchor/mooring configurations (gravity, electric, vertical chain, horizontal chain)
-
Stable station-keeping in strong currents, waves, and typhoons
-
Land-sea transmission system using satellite, 4G routers, antennas, and data relays
-
Shore-based monitoring center with remote control, alarms, large-screen visualization, and data playback
-
Supports long-term continuous monitoring in open sea conditions
-
Modular design enables flexible deployment and transport
SPECIFICATIONS
Undersea Seismic Observation System
-
Sensor bandwidth: 0.0167 Hz – 50 Hz
-
Sensitivity: 1000 V/(m/s)
-
Sampling rate: 50–500 sps (adjustable)
-
Dynamic range: ≥143 dB
-
Storage capacity: 4–8 GB
-
Operating temperature: –40°C to +60°C
-
Max inclination: 40°
-
Functions: GNSS timing sync, automatic leveling, attitude measurement
Hydrological Probe
-
Bandwidth: 0.1 Hz – 20 kHz
-
Sensitivity: up to 100 dB (re 1V/Pa)
-
Sampling rate: 50–500 sps
-
Dynamic range: ≥135 dB
-
Operating temperature: –20°C to +60°C
Underwater Data Transmission Chain
-
Umbilical diameter: <45 mm
-
Breaking strength: ≥3200 N
-
DC resistance: <150 Ω/km
-
Shock absorption elements: buffers, floats, limiter, counterweight
Undersea Monitoring Base Station
-
Working water depth: up to 3200 m
-
Power supply: underwater + battery backup
-
Communication rate: ≥21000 bps
-
Functions: data conversion, voltage monitoring, timing, calibration control
-
Positioning accuracy: ≤5° installation deviation
Buoy Platform
-
Power: solar + battery
-
Communications: satellite, 4G, AIS
-
Navigation: GNSS timing
-
Safety systems: collision avoidance, video monitoring, beacons, lights
-

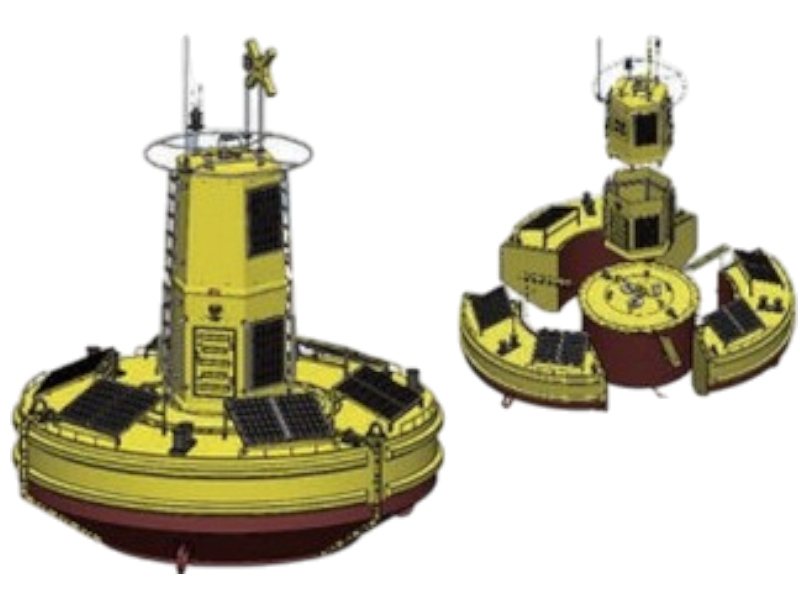

Structure: modular buoyancy system for transport and rapid deployment
Anchor & Mooring System
-
Gravity anchor, electric anchor, vertical chain, horizontal chain
-
Three-anchor mooring or multi-anchor configurations
-
High resistance to currents and wave loads
-
Designed to withstand wind speeds up to 45 m/s
Land-Sea Data Transmission System
-
Satellite + 4G communication redundancy
-
Data relay antennas, receiving servers, and shore-based control center
-
Supports large-screen visualization, alarms, remote control, playback, trends
APPLICATIONS
-
Offshore earthquake monitoring networks
-
Tsunami early-warning systems
-
Marine geophysical and environmental research
-
Subsea engineering and seabed deformation measurement
-
Offshore oil & gas structural monitoring
-
Long-term ocean observatory installations
-
Coastal hazard monitoring and early warning centers
-
Navy and maritime safety research
WHAT’S INCLUDED
-
Buoy platform with power, communication, and navigation systems
-
Undersea seismic monitoring base station
-
Broadband undersea seismometer + hydrological sensors
-
Underwater data transmission chain (armored cable, floats, connectors, buffers)
-
Multi-component anchor and mooring system
-
Land-sea data transmission network components
-
Shore-based base station (servers, antennas, data collection units)
-
Deployment accessories and hardware
-
System management software
-
Installation, integration, and operational documentation
