cabinetry cnc machine

AutoLoader

The Mixer of drill bank, spindle even saw function, meet high efficient production.

This autoloader series CNC router is a high-speed, automatic load/unload, heavy-duty CNC routing system for nested based feed through machining. This CNC machine is used majorly in the production of cabinets, door, closets, and custom furniture.

Double workbench, equipped with 9KW Italy aircooling spindle. More than 80 pcs board be done per day

OVERVIEW

Description

QuakeLogic is an authorized distributor of OMNICNC

Double workbench, equipped with 9KW Italy aircooling spindle. More than 80 pcs board be done per day.
Drill bank fits series drilling size to accomplish different holes.
The software is with layout optimization.
With auto loading and unloading system, could semi- automatically load the sheet to the working table and push the processing table plate after it is finished, which is convenient for the operator to take the material, and saves time, and the efficiency is greatly improved.

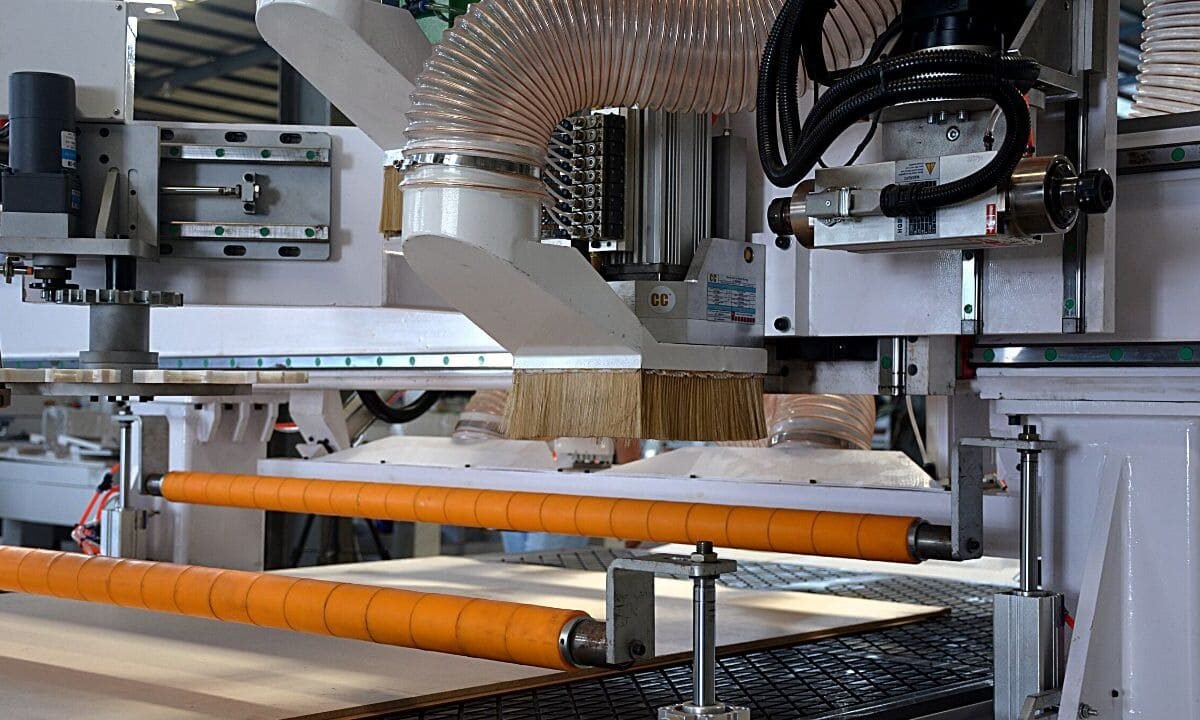

CABINETRY CUTTING HEAD UNIT
When you work on cabinetry, closet, door, you need following cutting heads:

9KW HSD Spindle With Auto Tool Changer Function
Drill Bank: Vertical 9+2+2/ 5+4, Vertical
Cutting Saw
Horizontal Cutting Head

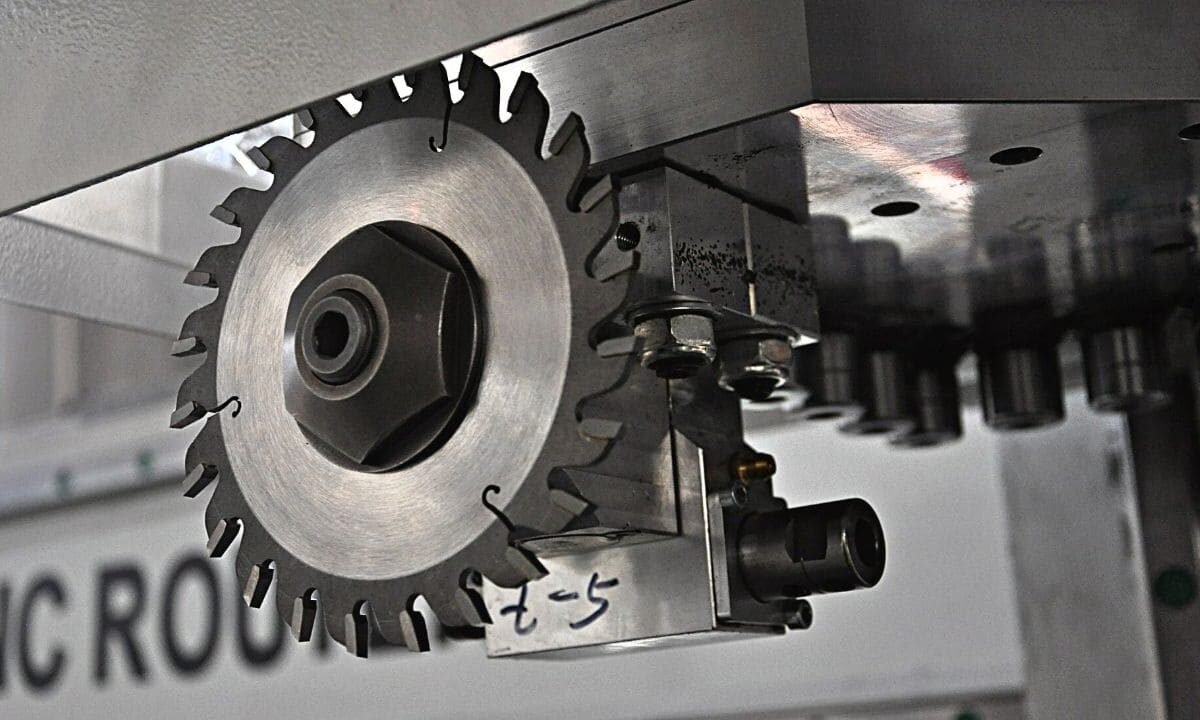

CNC CUTTING SAW – OPTIONAL
Computer numerical control saws have played a huge role in dimensioning and other fabrication applications for a long time.

It is perfect for achieving high-precision, wood cutting.

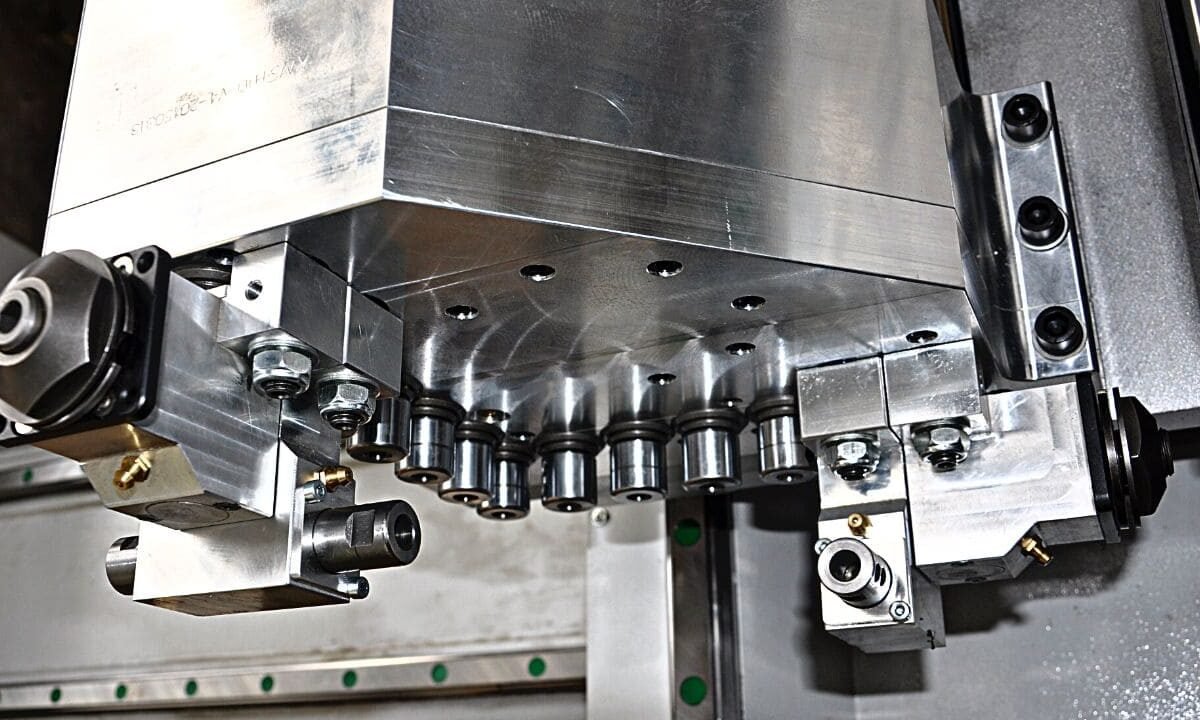

DRILL BANK – OPTIONAL
Drill Bank is an option for Cabintry CNC machine. All nine drillers are fully programmable for individual or gang drilling. The unit is 3HP “L” shaped drill pattern
Details Spacing: 32mm
Number of vertical drills = 5+4 (5)in X & Y/ 9+2+2

WORLD FAMOUR DRIVING SYSTEM
CNC Router utilizes AC Servo motors powered by Yaskawa drives.

These motors require no regular maintenance — therefore, reducing any maintenance downtime.

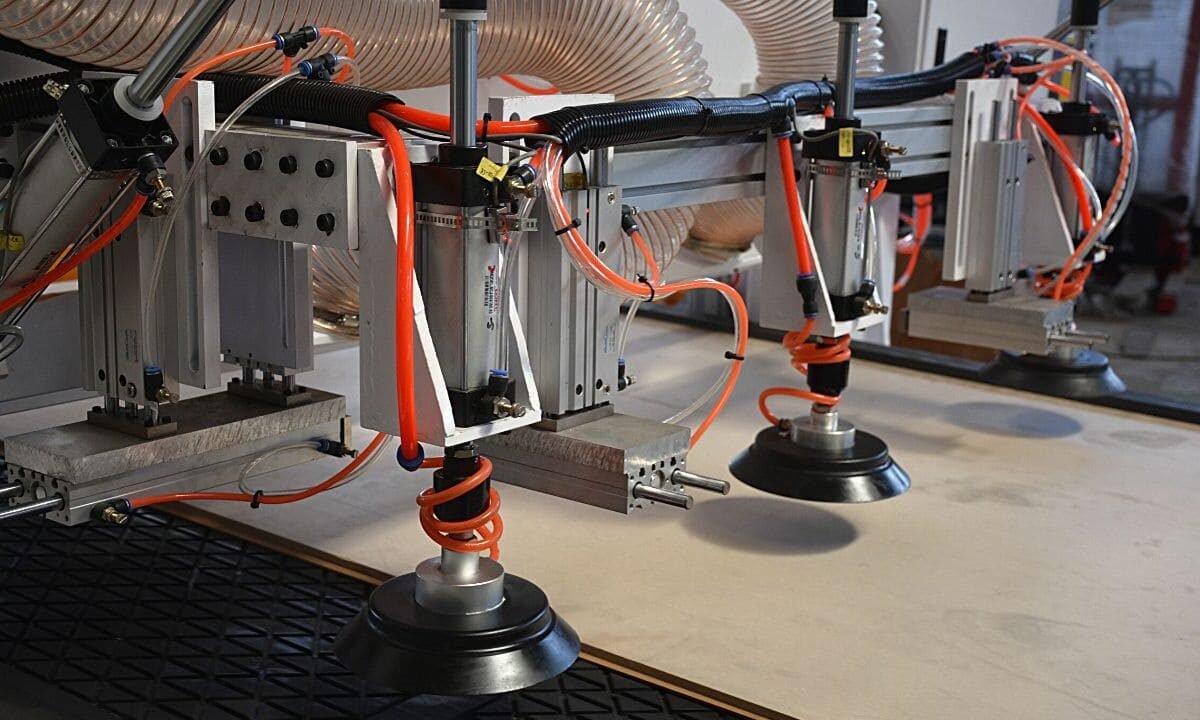

SHEET DRAGGING & POP UP PIN
Aborption cap drag the workpiece sheet moving to the cutting position.

Pop-Up Pin allow the operator to bank the edge of the material against them precisely aligning the material to the axes of travel and always having a common origin.

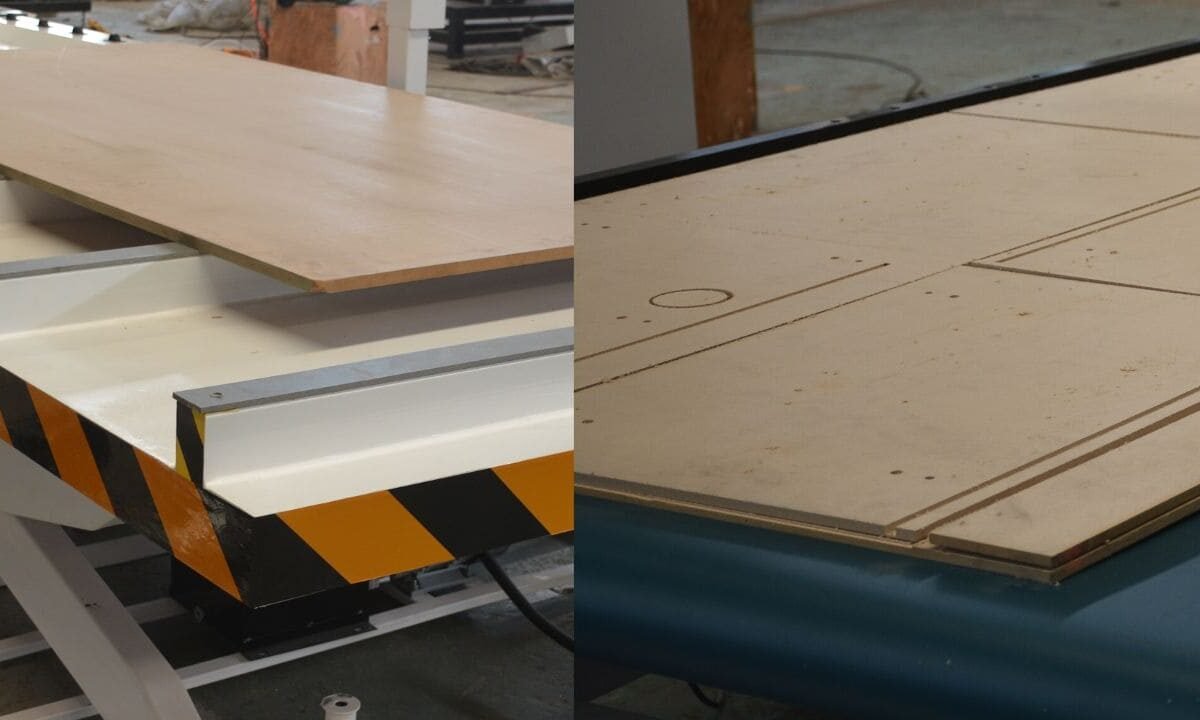

AUTO LOADING / UNLOADING TABLE
The automatic loading / unloading conveyor table designed by OMNI allows automatic feeding of cutting pieces.

COMPATIBLE
OMNI control systems are compatible with Aspire, Vcarve, Fusion360 etc main cnc software.

After the order placed, we will send you the download link of post processor.



Parameters

Model No. OMNI1325 Autoloader, OMNI1530 Autloader, OMNI2030 Autoloader
X,Y-Axis Travel 1300*2500 ,1500*3000, 2000*3000mm
Z-Axis Travel 300mm
Spindle Power 9kw HSD Air-cooling Spindle, 24000rpm
Positioning Accuracy 0.02mm
Repeatability +/- 0.05mm
Max. Rapid Travel Speed 45m/min
Drive System X and Y axis Rack and Pinion, rail linear bearing
Drive System Z axis Lead Screw,rail linear bearing
Standard Work Surface aluminium T-Plate Extrusion Combined Bakelite Vacuum Table
Working Voltage AC380V/50HZ, 3PH ; 220V/60Hz,3PH; AC440V/50HZ, 3PH
Command Language G Code&M Code
Collet ER32, Max 20mm
Tool Change BT30 ISO30, 8/12/24 Positions
Operating System Syntec
Software HISOON

Application

This full-automatic Intelligent CNC Router for Cabinet closet door furniture production has multi-functions of carving, engraving, milling, slotting, grooving, cutting, chamfer edge.

Full automatic Intelligent CNC Router Machine is mainly used in the furniture making industry, especially cabinet closet and door industries.

  • The Frame or frameless cabinet construction
  • Entertainment units
  • Kitchen cabinets, islands and peninsulas
  • Closets: Walk-ins, Reach-ins, Entries, Pantries
  • Angled and radius cabinets and countertops
  • Vanities
  • Bookcases
  • Home office workstations
  • Fine custom cabinetry… and much more
