ATOM-40 Shake Table – Portable, Precise, and Affordable
ATOM-40 is a compact, high-precision uni-axial shake table with a 400 × 400 mm platform, ideal for education, calibration, and research. It can replay real earthquake records or generate custom acceleration, velocity, and displacement signals with ease.
OVERVIEW
ATOM-40 Shake Table – Precision Earthquake Simulation and Instrument Calibration
ATOM-40 Shake Table is a compact, high-performance platform designed for calibrating accelerometers, seismometers, and seismic instruments, while also serving as a versatile tool for education and research. It is widely used in civil engineering, structural mechanics, earthquake engineering, soil mechanics, and geological testing.
With the ATOM-40, users can simulate authentic earthquake ground motions using real seismic records or generate custom waveforms such as sine, triangle, or user-defined acceleration and displacement signals. Ideal for universities, research labs, and outreach programs, ATOM-40 delivers unmatched performance at an affordable price.
Key Benefits
- Accurate calibration and testing – Compatible with accelerometers, seismometers, and seismic sensors.
- Flexible earthquake simulation – Replay real seismic data or design custom input signals.
- User-friendly operation – Delivered with EasyTest software, included at no additional cost.
- Proven in education – Trusted worldwide by civil engineering departments and K-12 outreach programs.
- Portable and lightweight – Easy to transport between classrooms, laboratories, and testing sites.
- CE Certified – LVD (2014/35/EU), EMC (2014/30/EU)

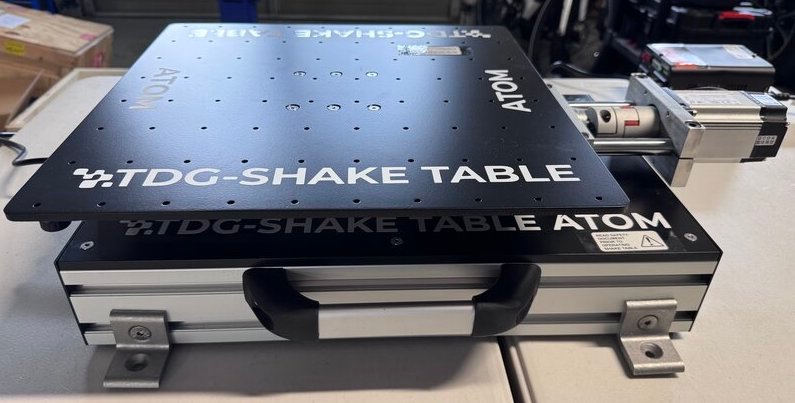

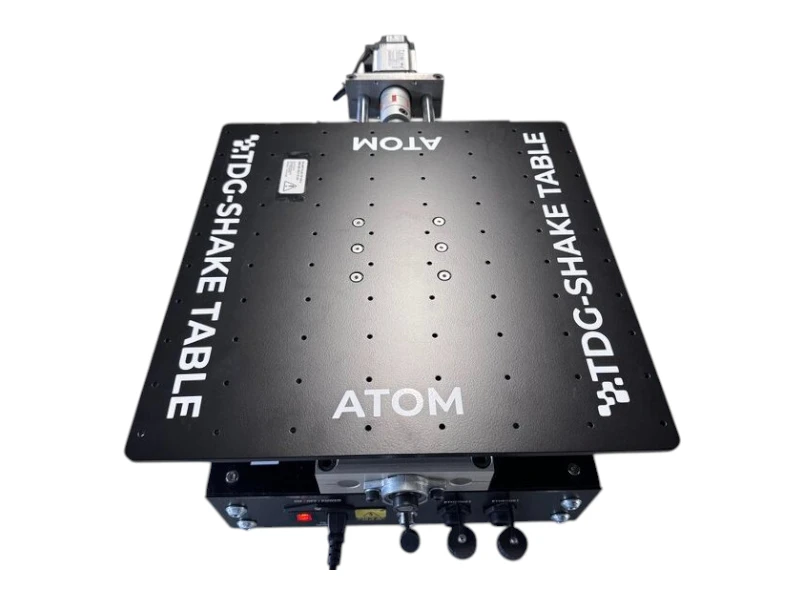

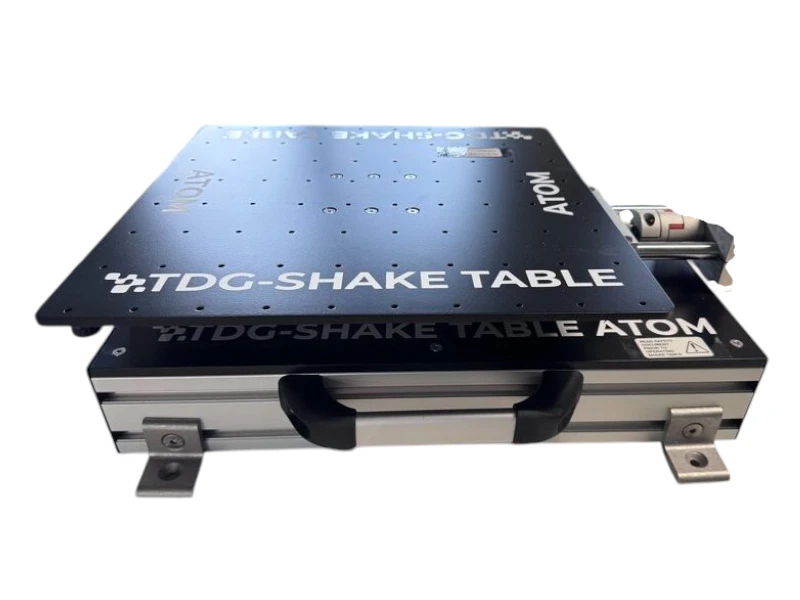

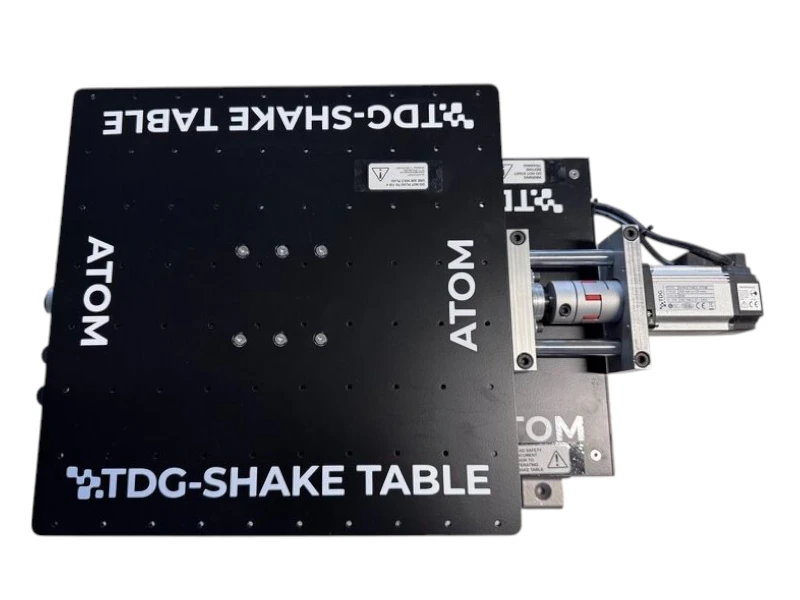

PRODUCT PHOTOS







SPECIFICATIONS
Degree of Freedom:
Single Horizontal or Vertical
Position Repeatability:
±0.01 mm
Payload Capacity:
50 kg @ 1 g
Max. Speed:
800 mm/s
Stroke:
±125 mm (250 mm total)
Max. Operating Frequency:
30 Hz
Position Precision:
0.01 mm
Weight:
20 kg
Top Moving Plate Dimensions:
400 × 400 mm
Overall Dimensions:
470 × 320 × 150 mm (L × W × H)
Power Consumption:
0.6 kW Max
Operating Temperature:
0–50 °C
FEATURES
Compact Design – Lightweight and portable for classrooms, labs, and research sites.
Precision Calibration – Designed for accurate testing of accelerometers and seismometers.
Earthquake Simulation – Replays real seismic records for authentic ground motion studies.
Custom Waveforms – Generates sine, triangle, boxcar, or user-defined input signals.
EasyTest Software – Intuitive control software included at no extra cost.
Education Proven – Trusted by universities and outreach programs worldwide.
Affordable Excellence – High performance without the cost of hydraulic systems.
Versatile Applications – Ideal for civil, structural, soil, and geological testing.
Certified Quality – CE Certified and delivered with a factory calibration certificate.

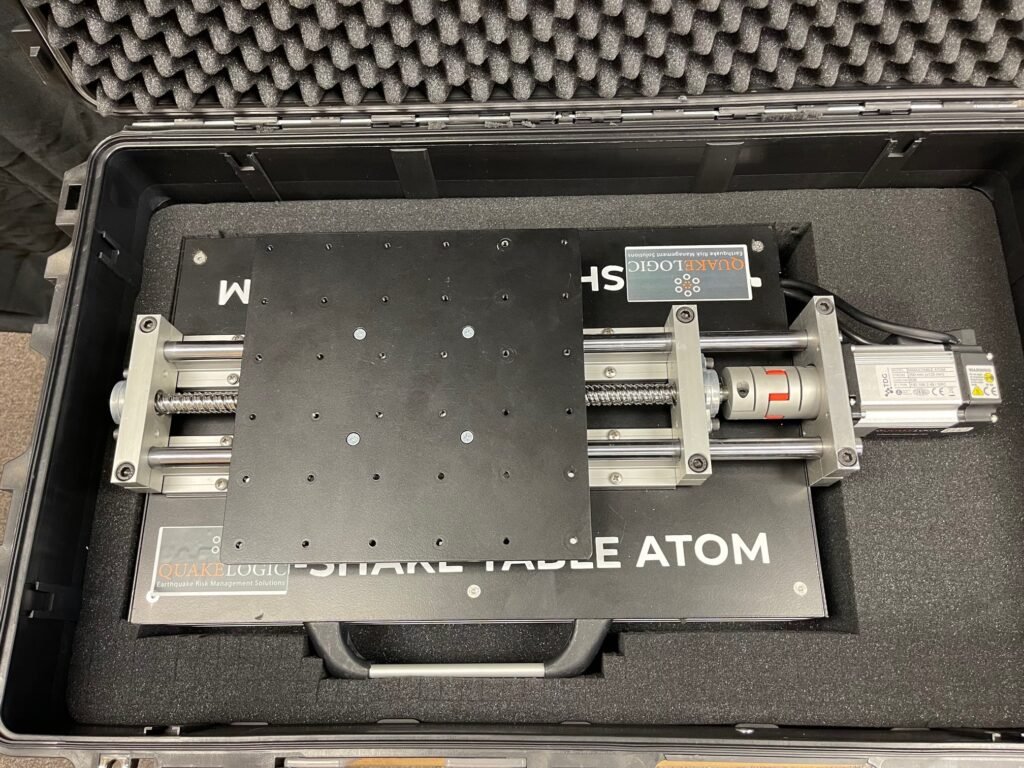

Portable & Mobile – Easy to transport with optional protective hard case.
