4×8 Router Table
A 4 × 8 CNC router table is a computer-controlled cutting machine with a table dimension of 4 feet by 8 feet.
If you’re looking for an affordable yet reliable and affordable CNC router for your woodworking projects, look no further than the 4×8 Entry-Level CNC Router from Omni CNC.
This machine is designed to offer users a cost-effective solution that doesn’t compromise on quality or performance.
OVERVIEW
Description
QuakeLogic is an authorized distributor of OMNICNC
With a cutting area of 4 feet by 8 feet, the 4×8 Entry-Level CNC Router is perfect for cutting and engraving a variety of materials, including wood, plastics, composites and non-ferrous metal.
The machine features a powerful 3.2kW spindle motor that can reach speeds of up to 24,000 RPM, ensuring precise cuts and smooth finishes every time.

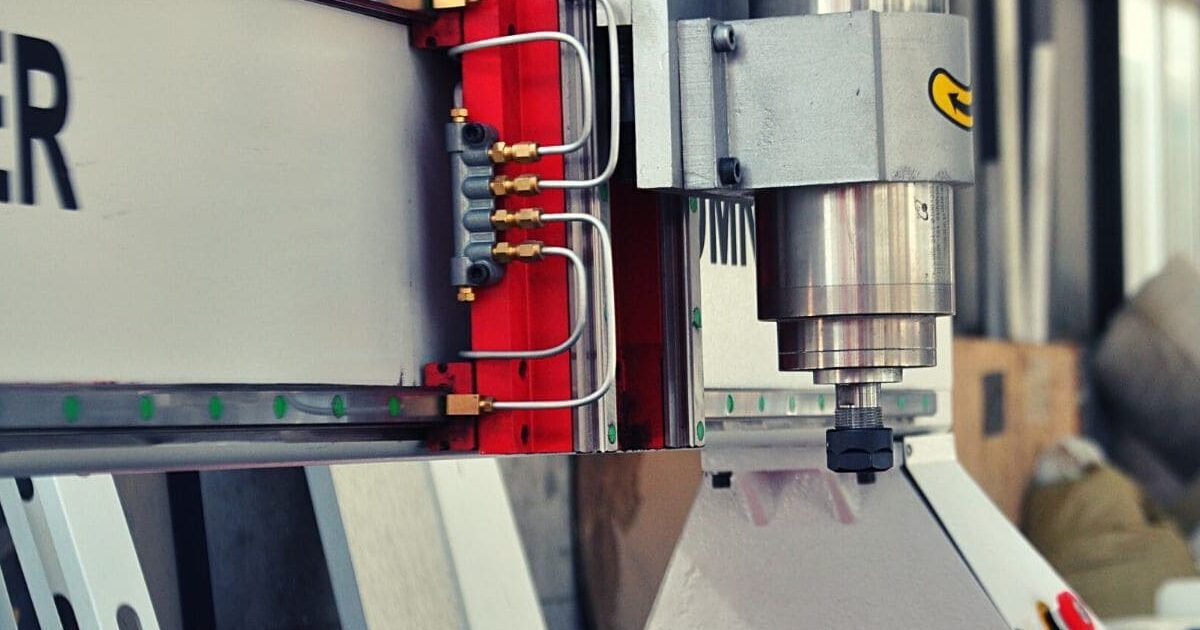

Aircooling & Watercooling Spindle
High quality spindles provide precision, versatility, speed, power, durability. They can last for many years with proper maintenance and are crucial for achieving high-quality cuts and improved productivity.

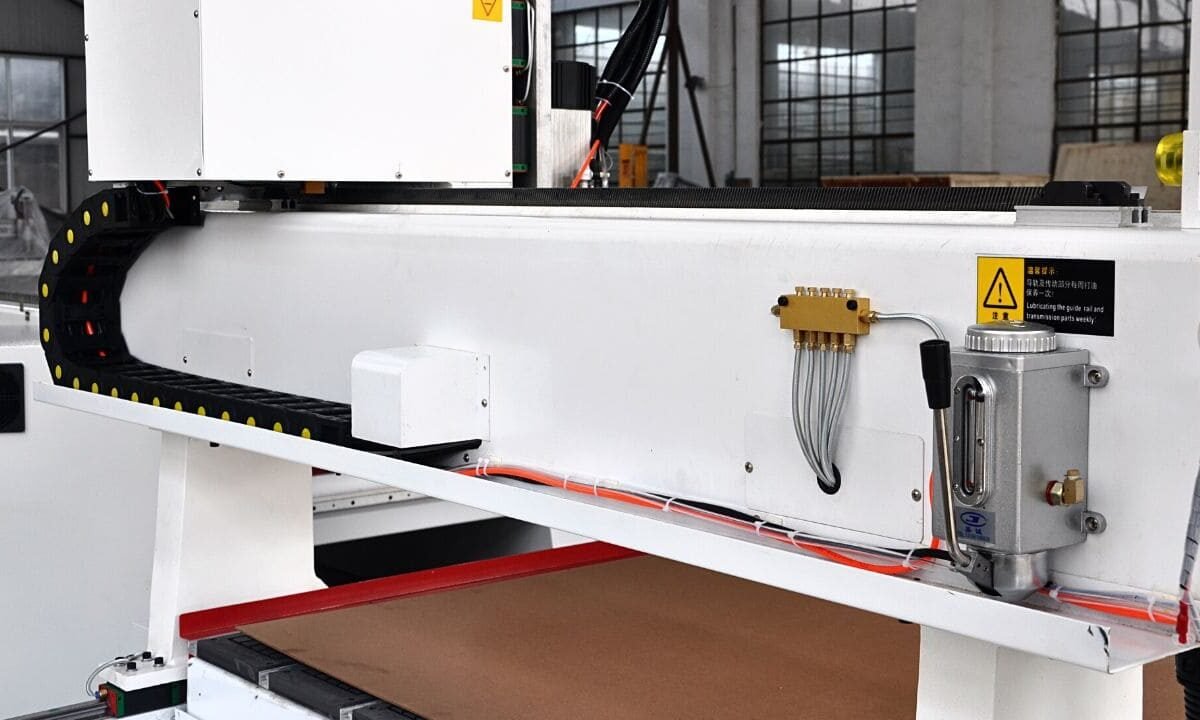

Reinforced All-Steel Gantry
The gantry is constructed of tubular steel and reinforced with welded ribs along the length of the column, creating a stable and solid beam assembly.
This high level of engineering and craftsmanship ensures smooth and precise cutting.
MACH3 48 cnc router 800×630 – OMNI Affordable 4×8 CNC Router Table | E Series
Thicken Welded Steel Tubes Frame
The OMNI affordable CNC router is built with extra-thick welded steel tubes, making it one of the thickest in the CNC router industry in China.
The 4×8 CNC router is the basic size, but other sizes such as the 5×10 CNC router and 6×10 CNC router are also available.
Handheld DSP Controller
Easy installation and operation
USB disk support, removable storage card reader, with USB Interface
High speed transfer, allowing for efficient data transfer
Plug and play the full realization of all work offline

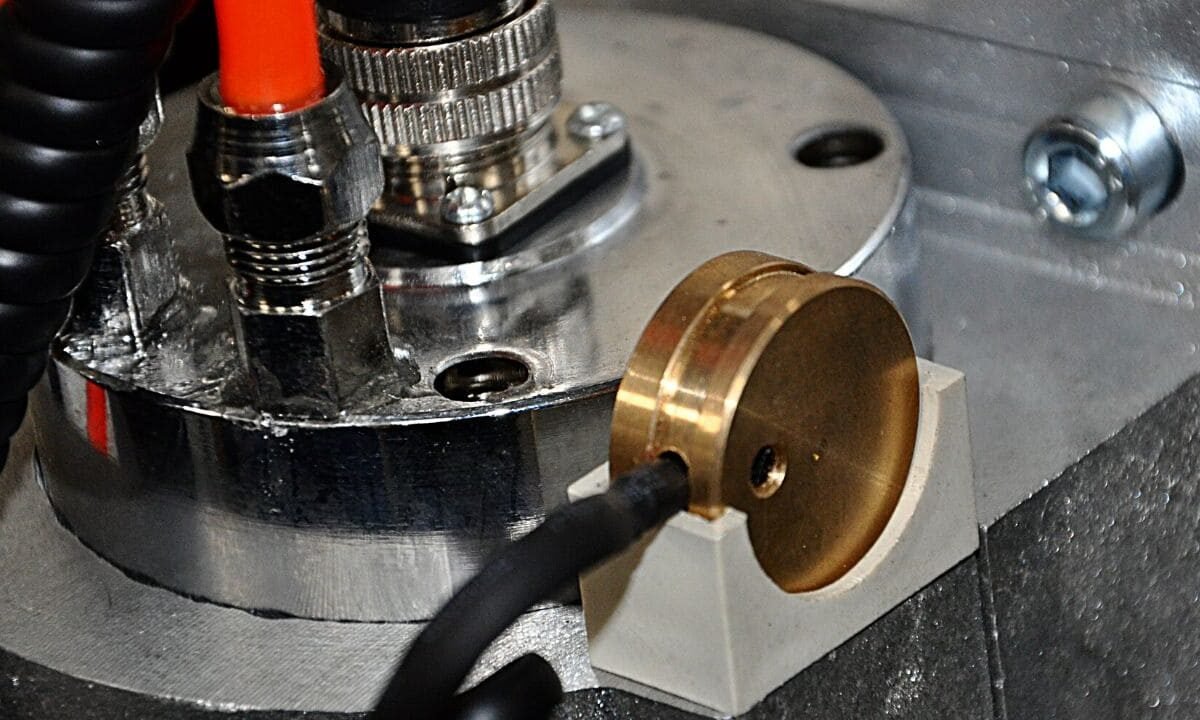

TOOL SENSOR
Using a tool sensor in CNC machining can lead to significant improvements in efficiency, accuracy, productivity, and tool life, making it a valuable investment for any CNC machine operator.
COMPATIBLE
OMNI control systems are compatible with popular CNC software such as Aspire, Vcarve, and Fusion360.
After placing an order, we will send you a download link for the post-processor that is compatible with your software.
Parameters
| Model No. | OMNI1325E, OMNI1530E, OMNI2030E |
| X,Y-Axis Travel | 1300*2500 ,1500*3000, 2000*3000mm |
| Z-Axis Travel | 200mm or others |
| Spindle Power | 3kw water-cooling 24000rpm or higher power; HSD3kw air-cooling 18000rpm or higher power |
| Repeatability | +/- 0.05mm |
| Max. Rapid Travel Speed | 15m/min-40m/min |
| Drive System X and Y axis | Rack and Pinion, rail linear bearing |
| Drive System Z axis | Lead Screw, rail linear bearing |
| Standard Work Surface | aluminium T-Plate Extrusion Combined Bakelite Vacuum Table |
| Motor | Stepper/Servo |
| Spindle Protection Device | digital spindle temperature monitor (not fitted for air-cooling spindle) |
| Working Voltage | AC380V/50HZ, 3PH; 220V/60Hz,3PH; AC440V/50HZ, 3PH |
| Command Language | G Code & M Code |
| Collet | ER20 or ER25 or ER32 |
| Operating System | DSP Handheld Controller/ NC studio/ Syntec |
