4 Axis CNC
OMNI designed gantry moving and table moving 4 axis CNC router for medium and large 3d mould processing of EPS, automobile, ship, yacht and large musical instrument.
OVERVIEW
Description
QuakeLogic is an authorized distributor of OMNICNC
Gantry Moving 4 Axis CNC Router
OMNI designed gantry moving and table moving 4 axis CNC router for medium and large 3d mould processing of EPS, automobile, ship, yacht and large musical instrument.
4 Axis CNC router can do the curved surface carving, and it can carry out all-round carving for curved plates and all-round plates. Regardless of whether the bent plate is a 180-degree or 90-degree guard, it can be carved naturally, and the carving effect of each angle will not be deformed.

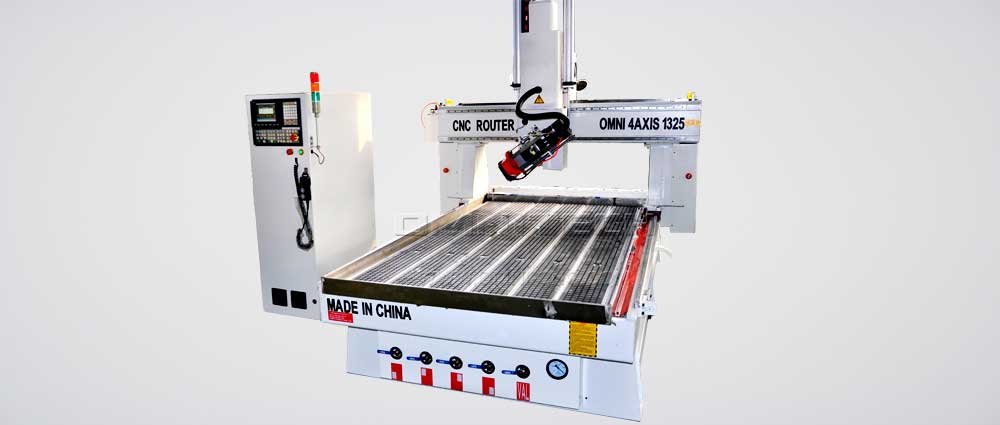

Table Moving 4 Axis CNC Router
Table moving 4 Axis CNC router is the perfect solution for woodworking manufacturers, like a chair back. This design allows the double CNC router tables for continuous production and full cutting time.
Owning this function, the CNC router table can be loaded and off-loaded without interrupting the machine working and production that is occurring on the other table.
Its heavy duty cast iron frame tends to naturally absorb or dampen any cutting vibrations. OMNI has offered this machine to a furniture manufacturer, and this company uses it to cut chair back.
Parameters
| Parameters | Gantry Moving 4 Axis | Table Moving 4 Axis |
| X,Y-Axis Travel | 1300*2500 ,1500*3000, 2000*3000mm | 1600*1800mm; 1300*2500; others |
| Z-Axis Travel | 400mm | 1000mm or others |

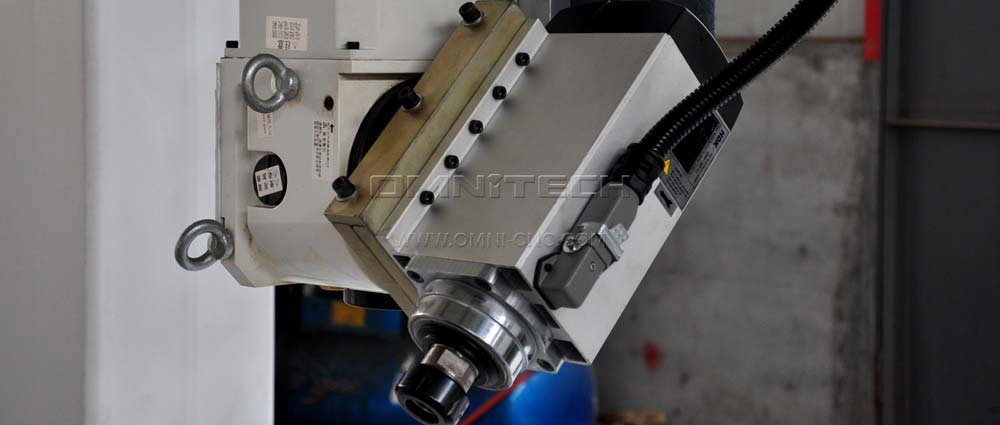

| C Axis | +-135° | +-135° |

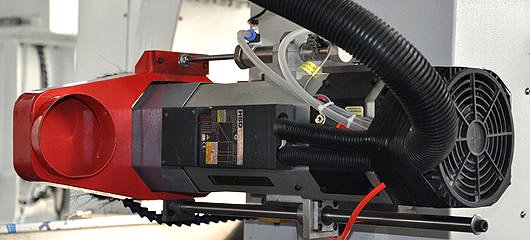

| Spindle Power | HSD9kw aircooling 18000rpm or higher power | HSD9kw aircooling 18000rpm or higher power |
| Repeatability | +/- 0.05mm | +/- 0.05mm |
| Max. Rapid Travel Speed | 15m/min-40m/min | 15m/min-40m/min |
| Drive System X and Y axis | Rack and Pinion, rail linear bearing | Rack and Pinion, rail linear bearing |
| Drive System Z axis | Lead Screw, rail linear bearing | Lead Screw, rail linear bearing |

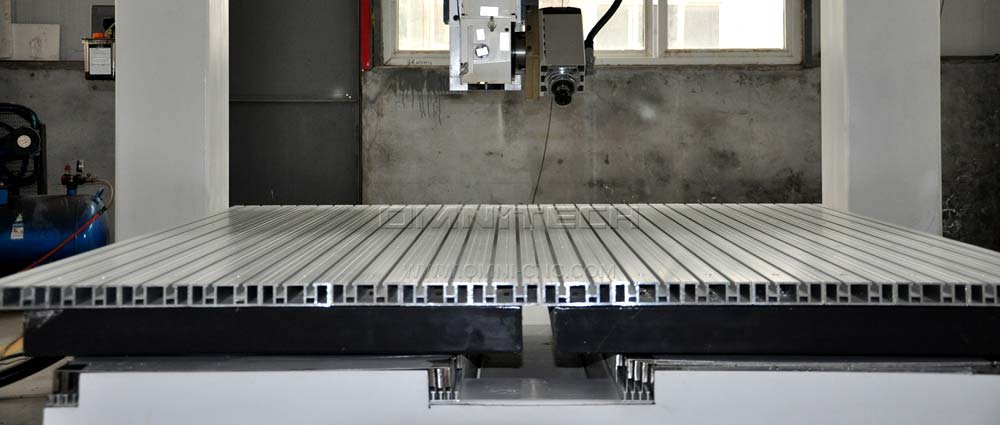

| Standard Work Surface | aluminium T-Plate Extrusion Combined Bakelite Vacuum Table | aluminium T-Plate Extrusion |

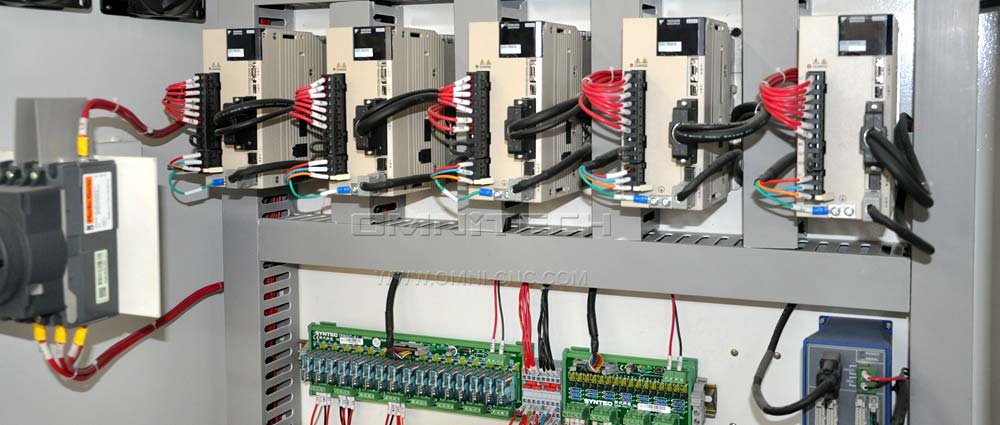

| Motor | Servo | Servo |
| Working Voltage | AC380V/50HZ, 3PH; 220V/60Hz,3PH; AC440V/50HZ, 3PH | AC380V/50HZ, 3PH; 220V/60Hz,3PH; AC440V/50HZ, 3PH |
| Command Language | G Code&M Code | G Code&M Code |
| Collet | ISO30 | ISO30 or ER32 |

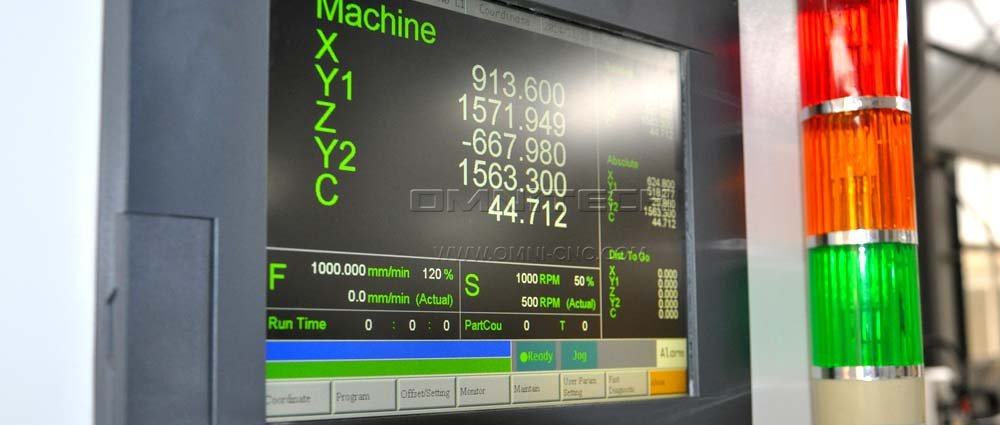

| Operating System | Syntec | Syntec |
Material
Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard
Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE
Stone: Granite, Marble, Slate, Basalt, Pebbles, Natural Stone, Ceramic, Porcelain
Metal: Aluminium, Brass, Copper, Mild Steel, Stainless Steel
Composite: Aluminium Composite, Copper Composite, Titanium Composite, Zinc Composite.
