2026 Enterprise
Conquer large-scale machining challenges with the monumental OMNI 2026 Enterprise.
This industrial-grade 5-axis CNC router boasts a massive 6m x 8m working area.
It is ideal for large-scale mold making, aerospace, railway, and diverse machining applications.
OVERVIEW
Description
QuakeLogic is an authorized distributor of OMNICNC
Elevate your 3D woodworking, sign making, and furniture production with the powerful and versatile OMNI-5AXIS Premium Table Moving CNC router. Combining precision machining with user-friendly features, this premium machine empowers you to create exceptional results faster and easier than ever before.
5 Axis CNC Router Machine Carve anything 8 meters wide! | OMNICNC

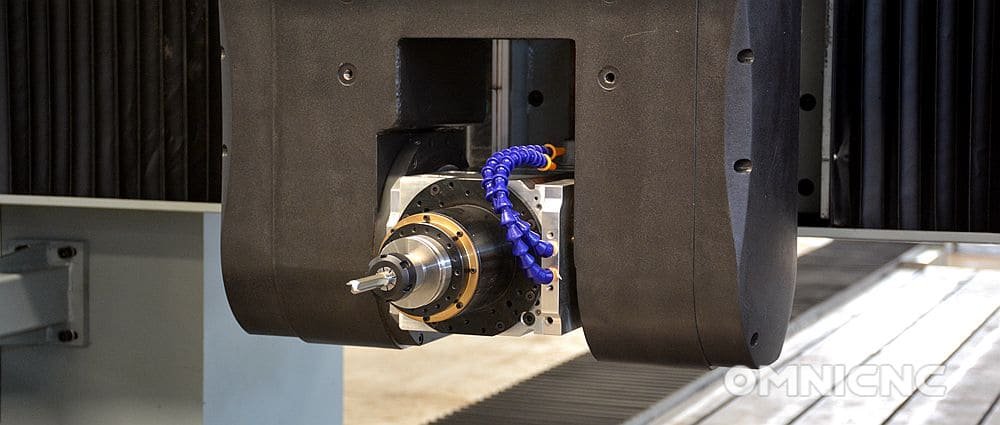

5 axis cnc router head 1 1280×630 – 2026 Enterprise 5 Axis CNC Router
HITECO 18KW SPINDLE
Conquer even the most demanding materials with the 2026 Enterprise’s high-torque spindle, ensuring efficient and effortless machining.
ROBUST CONSTRUCTION
Engineered for peak performance and unwavering stability, the 2026 Enterprise features a heavy-duty gantry structure and premium components to handle even the most challenging materials.
5 axis gantry 1280×630 – 2026 Enterprise 5 Axis CNC Router
5 axis cnc router controller – 2026 Enterprise 5 Axis CNC Router
WORLD FAMOUR CONTROL SYSTEM
SIEMENSE – PC interfaced Numerical Control System
WORLD FAMOUR DRIVING SYSTEM
Yaskawa servo drivers and motors for high power and speed
Stainless Steel High Speed Cutting 2 1 1280×630 – 2026 Enterprise 5 Axis CNC Router

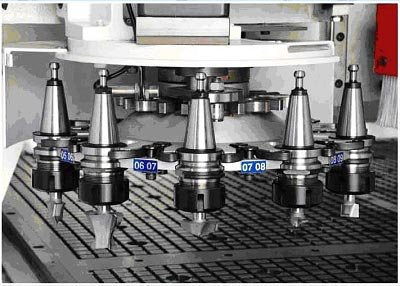

20130906014711582 – 2026 Enterprise 5 Axis CNC Router
AUTO TOOL CHANGER
8 – 16 position rotary ATC with HSK precision tool clamping, saving tool changing time to ensure high efficiency manufacturing.
Parameters
| X,Y-Axis Travel | 10′ * 13’*4′ ; 3000mm * 4000mm *1200mm |
| Spindle Power | 18kw Hiteco spindle, 1000-24000rpm |
| C travelling | ±213° |
| A travelling | ±135° |
| Tool magazine | Linear tool tool magazine (12 positions) |
| Frame | Cast steel |
| Repeatability | +/- 0.05mm |
| Max. Rapid Travel Speed | 25m/min |
| Total Power | 30KW |
| Maximum lifting weights | 7.5T |
| Drive System X and Y axis | Rack and Pinion, rail linear bearing |
| Drive System Z axis | Lead Screw, rail linear bearing |
| Moving Type | Table moving |
| Motor | Yaskawa Servo motor and driver |
| Working Voltage | AC380V/50HZ, 3PH; 220V/60Hz,3PH; AC440V/50HZ, 3PH |
| Operating System | Siemens |
| Command Language | G Code&M Code |
| Tool Holder | HSK63F |
| Collet | BT40 |
| Software (Optional) | MasterCAM, Powermill, AlphaCAM i.e. |
