QL-CleanWave 2000 is a 2,000 W continuous-wave fiber laser cleaning system (1070 nm) for high-throughput rust, oxide, coating, oil and contaminant removal. It pairs a handheld cleaning head on a 10 m armored fiber with a 300 mm scanning width, programmable cleaning patterns, red-light focusing, an integrated industrial water chiller, a welded lifting cage, a full laser-safety and respiratory PPE package, on-site commissioning, training and a minimum 2-year warranty.

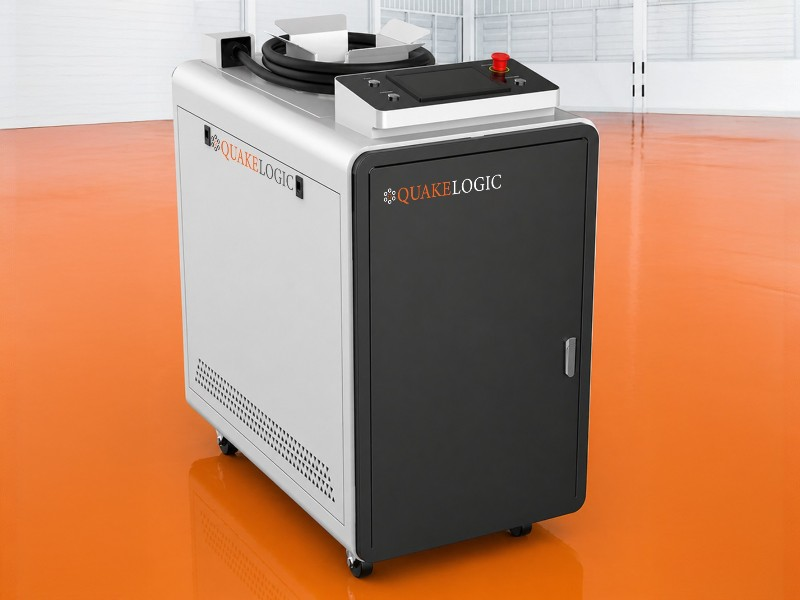

The QL-CleanWave 2000 is an industrial-grade, 2,000 W continuous-wave (CW) fiber laser cleaning system operating at 1070 nm. It is engineered for precision surface treatment, coating removal and contamination elimination on metal across government, defense, utility and industrial environments. A handheld cleaning head on a 10 m armored fiber delivers up to 300 mm scanning width with line, rectangle, circular, sinusoidal and custom cleaning patterns, while an integrated industrial water chiller keeps the source stable through long shifts. The platform is configured for turnkey deployment with safety equipment, on-site commissioning, operator training and Laser Safety Officer certification.
Government and defense depots, shipyards, utilities, heavy fabrication shops, rail and fleet maintenance facilities, bridge and infrastructure contractors, and industrial coating applicators that need high-throughput laser cleaning with a fully specified safety and training package.
Both are 2 kW continuous-wave systems from QuakeLogic. The QL-CleanWave 2000 uses a separate integrated industrial chiller, offers a 300 mm scanning width with programmable patterns and ships with a respiratory PAPR package and LSO certification training, which suits specification-driven government and heavy-industry purchases. The QL-CleanPro 2000 builds the cooling into a single compact cart with ANSI Z136 / CSA safety architecture and a laser safety curtain, which suits shops that move the system between workstations. The QL-CleanPro 1500 offers the same cart at 1.5 kW, and the QL-CleanWave Pulse 500 covers low-heat precision cleaning. See the Compare Models tab.
All four QuakeLogic laser cleaners replace sandblasting, grinding and chemical stripping with a non-contact, consumable-free process. Use this table to pick the right output power and laser type for your parts.
| Specification | QL-CleanWave Pulse 500 | QL-CleanPro 1500 | QL-CleanPro 2000 | QL-CleanWave 2000 (this page) |
|---|---|---|---|---|
| Laser type | Pulsed fiber laser | Continuous-wave (CW) fiber laser | Continuous-wave (CW) fiber laser | Continuous-wave (CW) fiber laser |
| Nominal output power | 500 W | 1,500 W (1.5 kW) | 2,000 W (2 kW) | 2,000 W (2 kW) |
| Wavelength | 1064 nm | Industry-standard fiber laser wavelength for metals | Industry-standard fiber laser wavelength for metals | 1070 nm |
| Cooling | Contact QuakeLogic | Integrated closed-loop water cooling in the cart (no external chiller) | Integrated closed-loop water cooling in the cart (no external chiller) | Integrated industrial water chiller unit (39 x 23 x 22 in, 280 lb, distilled or DI water) |
| Electrical supply | 208 VAC, single phase, 60 Hz | Contact QuakeLogic | Contact QuakeLogic | 220 V, single phase, 50/60 Hz, 50 A circuit |
| Scanning / cleaning patterns | Adjustable scanning width, multiple selectable pattern modes | Handheld head with adjustable focal distance | Handheld head with adjustable focal distance | Max 300 mm scanning width; line, rectangle, circular, sinusoidal and custom patterns |
| Mobility | Rugged mobile chassis with casters and head/cable storage | Self-contained wheeled cart, heavy-duty casters | Self-contained wheeled cart, heavy-duty casters | Wheeled platform, welded lifting cage, 6 in locking casters, lifting sling |
| Safety and PPE | Integrated anti-reflection protection; laser protective eyewear included | ANSI Z136, CSA or equivalent; keyed enable, E-stop, interlocks; 3 sets eyewear, safety curtain, signage | ANSI Z136, CSA or equivalent; keyed enable, E-stop, interlocks; 3 sets eyewear, safety curtain, signage | 4 pairs OD 7+ eyewear (ANSI Z87+ / CE EN 207), PAPR respirator, 50 HEPA filters, 50 pre-filters |
| Installation and training | Ready-to-operate; operation manual included | On-site installation, commissioning and minimum 1 day operator training included | On-site installation, commissioning and minimum 1 day operator training included | On-site delivery, installation, commissioning and training; online LSO certification for 2 users |
| Warranty | 1 year, materials and workmanship | 2-year comprehensive | 2-year comprehensive | Minimum 2-year manufacturer warranty with on-site repair support |
| Best for | Precision, low-heat cleaning of tooling, molds, thin or heat-sensitive metal parts and confined geometries | Moderate-to-heavy rust, scale and coating removal where a compact self-cooled cart and lower capital cost matter | Heaviest scale and coating removal with the fastest cycle times on a self-cooled cart | High-throughput 2 kW cleaning with wide 300 mm scan and full respiratory protection package |
Not sure which model fits? Send QuakeLogic a photo of the part and the contaminant and we will recommend the right laser type and power, or arrange a sample cleaning trial.
A 2,000 W continuous-wave fiber laser cleaning system at 1070 nm with a handheld head on a 10 m armored fiber, a 300 mm maximum scanning width, programmable cleaning patterns and an integrated industrial water chiller, supplied turnkey with PPE, training and a minimum 2-year warranty.
A 220 V, single-phase, 50/60 Hz supply on a 50 A circuit. The chiller uses distilled or de-ionized water and measures 39 x 23 x 22 inches at 280 lb.
Line, rectangle, circular, sinusoidal and custom programmable patterns with a maximum scanning width of 300 mm. Red-light assisted focusing helps the operator set the correct working distance.
Four pairs of ANSI Z87+ and CE EN 207 certified laser safety glasses rated OD 7+ at 800 to 1080 nm, one powered air-purifying respirator (PAPR) with clear visor, fifty NIOSH-rated HEPA filters and fifty pre-filters, plus online Laser Safety Officer certification training for two users.
FOB Destination delivery within 30 days of order, on-site installation and commissioning, on-site operator training and a minimum 2-year manufacturer warranty that includes on-site repair support.
Both deliver 2 kW CW output. The CleanWave 2000 adds a 300 mm scanning width, programmable patterns, a separate industrial chiller, a welded lifting cage and a respiratory PPE package; the CleanPro 2000 integrates cooling into a single compact cart with ANSI Z136 / CSA safety architecture and a laser safety curtain.
Contact QuakeLogic for the user manual, drawings or configuration-specific documentation.
The QL-CleanWave 2000 carries a minimum two-year manufacturer warranty including on-site repair support. QuakeLogic delivers, installs and commissions the system at your site, trains your operators and provides online Laser Safety Officer certification for two users. Protective lenses, optics and filters are stocked for fast replenishment. Contact QuakeLogic for extended support or service agreements.
